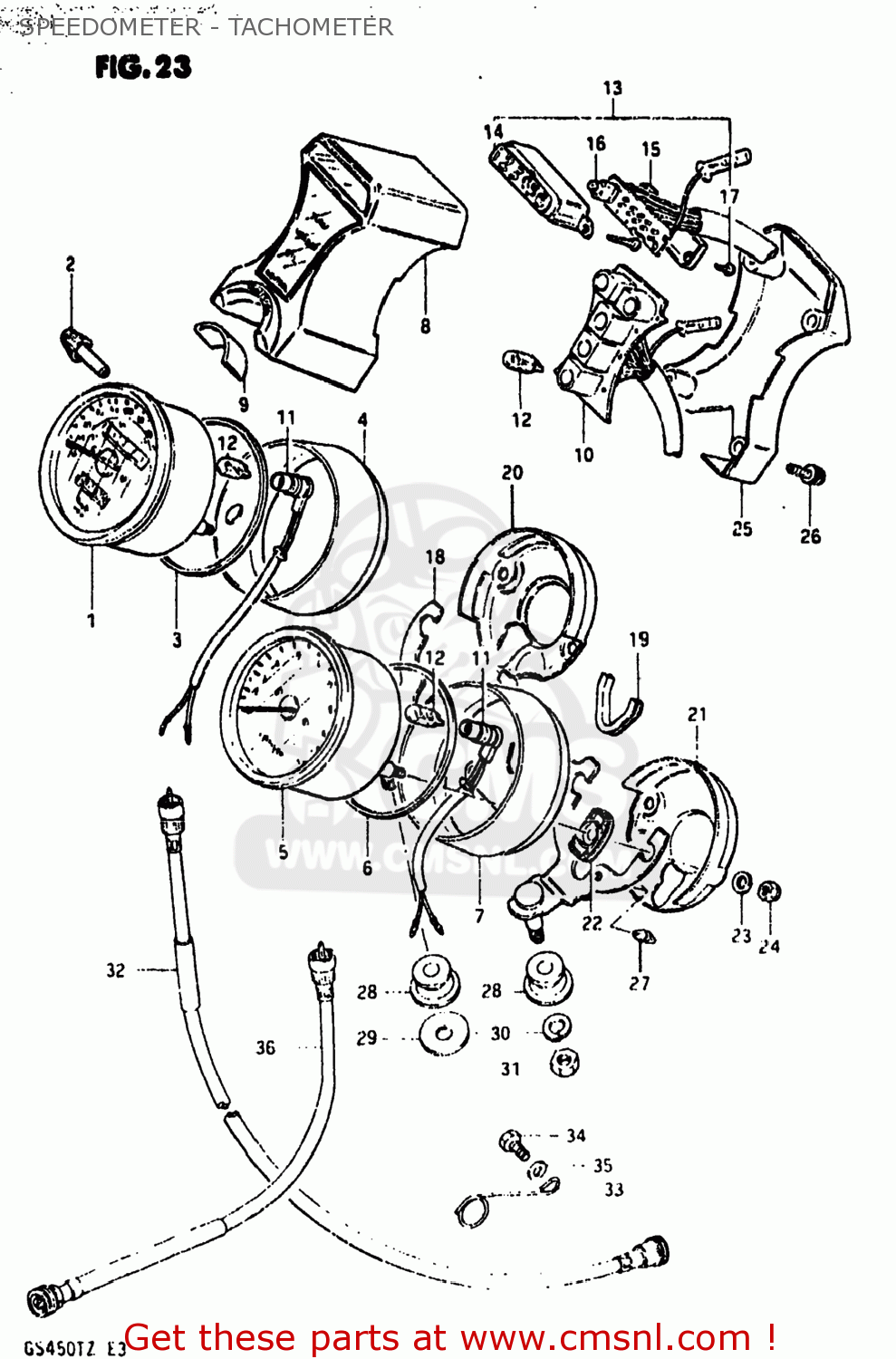

SPEEDOMETER - TACHOMETER - GS450TX 1981 (X) USA (E03)

ref

part #

description

quantity

1

3411045230
ref: 1

METER,SPEEDOMETER

€ 323.50

2

3498045020
ref: 2

KNOB

€ 4.50

3

3418945300
ref: 3

CUSHION

€ 10.00

4

3415145300
ref: 4

COVER,SPEEDOMETER

€ 16.00

5

3421047201
ref: 5
34210-45360

TACHOMETER

€ 392.00

6

3418945300
ref: 6

CUSHION

€ 10.00

7

3425145300
ref: 7

COVER,TACHOMETER

€ 12.00

8

3638044311
ref: 8

CASE,PILOT BULB

€ 1,102.50

9

3499347000
ref: 9

SEAL,IGNITION SWITCH

€ 3.00

10

3632544310
ref: 10

SOCKET

€ 0.00

11

3417344310
ref: 11
34173-45302

SOCKET,METER

€ 15.50

12

0947112028
ref: 12

BULB(12V3.4W,T10)

€ 3.50

13-1

3645044310
ref: 13-1
36450-44001

INDICATOR ASSEMBLY,GEAR POSITION

€ 0.00

13-2

3645044100
ref: 13-2
36450-47751

INDICATOR ASSEMBLY,GEAR POSITION

€ 112.00

14

3645245100
ref: 14

CASE,GEAR INDICATOR

€ 14.50

15

3645445100
ref: 15

COVER,LWR

€ 7.00

16

0947112071
ref: 16

BULB(14V1.12W)

€ 5.00

17

3645645100
ref: 17
03511-03146

SCREW,GEAR INDICATOR

€ 2.00

18

3495044311
ref: 18

BRACKET,METER

€ 32.50

19

3495344310
ref: 19

BRACKET,COVER

€ 6.50

20

3419345300
ref: 20

ORNAMENT,SPEEDOMETER

€ 35.50

21

3429345300
ref: 21

COVER,TACHOMETER

€ 35.50

22

3418944310
ref: 22
34189-44311

CUSHION,METER

€ 2.50

23

0832221058
ref: 23
08322-01057

WASHER

€ 2.50

24

0831311057
ref: 24
08313-1005A

NUT

€ 1.50

25

3638344310
ref: 25

COVER,PILOT BOX LWR

€ 20.00

26

3638744310
ref: 26
02112-0410A

SCREW,PILOT BULB CASE

€ 1.00

27

3419144310
ref: 27

CUSHION

€ 3.00

28

3495631001
ref: 28

CUSHION,METER BRACKET

€ 4.50

29

0916008002
ref: 29
09160-08135

WASHER (8.5X29X1.6)

€ 2.00

30

0832121088
ref: 30
08321-01087

LOCK WASHER

€ 2.00

31

0831012088
ref: 31
08310-00087

NUT

€ 2.00

32-1

3491047310
ref: 32-1
34910-44400

CABLE ASSEMBLY,SPEEDOMETER

€ 27.50

32-2

3491047311
ref: 32-2
34910-44400

CABLE ASSEMBLY,SPEEDOMETER

€ 27.50

33

3493845100
ref: 33

CLAMP,SPEEDOMETER CABLE

€ 14.50

34

0110706168
ref: 34
01500-06167

BOLT, UPPER

€ 3.00

35

0832221068
ref: 35
08322-01067

WASHER

€ 2.00

36-1

3494047031
ref: 36-1
34940-47033

CABLE ASSEMBLY,TACHOMETER

€ 20.50

36-2

3494047032
ref: 36-2
34940-47033

CABLE ASSEMBLY,TACHOMETER

€ 20.50
