CRANKCASE COVER
GS450TX 1981 (X) USA (E03)

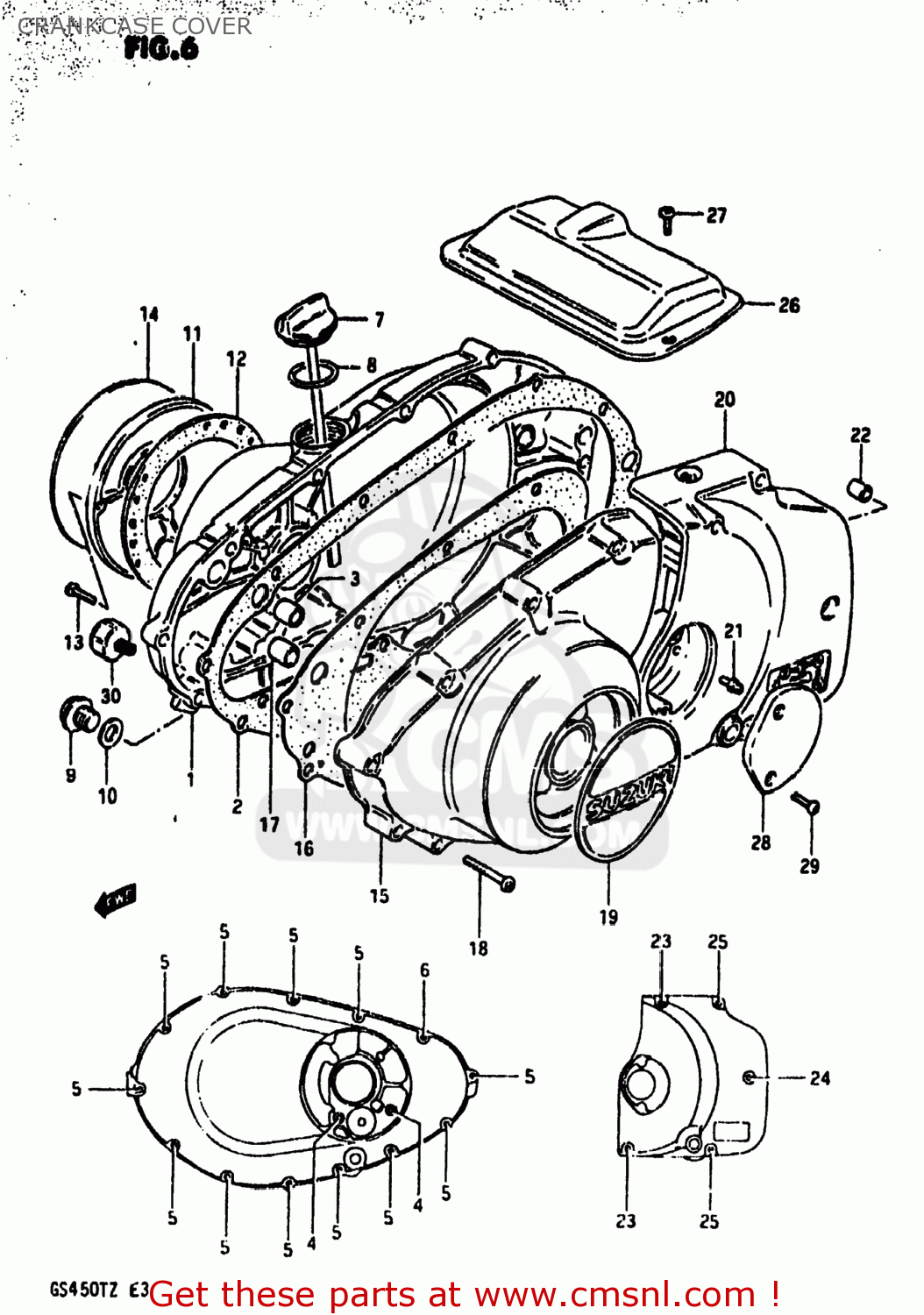

Crankcase cover diagram GS450TX 1981 (X) USA (E03)
CRANKCASE COVER GS450TX 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1134144100
ref: 1-1
11341-44101
COVER,CLUTCH
€ 119.50
1-2
1134144101
ref: 1-2
COVER,CLUTCH
€ 119.50
2
1148244100
ref: 2
11482-44110
GASKET,CLUTCH COVER (MCA)
€ 17.50
3
0920613001
ref: 3
04211-13189
PIN
€ 2.50
4-1
0211206557
ref: 4-1
SCREW
€ 2.50
4-2
0154706558
ref: 4-2
01547-06557
BOLT (6X55)
€ 2.50
5-1
0211206358
ref: 5-1
02112-06357
SCREW (6X35)
€ 2.50
5-2
0154706358
ref: 5-2
01547-06357
BOLT (6X35)
€ 2.50
6-1
0211206258
ref: 6-1
02112-06257
SCREW
€ 2.00
6-2
0154706258
ref: 6-2
01547-06257
BOLT
€ 2.50
7
1197044100
ref: 7
GAUGE,OIL LEVEL
€ 17.50
8
0928027002
ref: 8
09280-26006
O-RING
€ 3.00
9
0924714012
ref: 9
09247-14026
PLUG (14X12)
€ 3.50
10
0916814004
ref: 10
GASKET(14X19.2X2) (NAS)
€ 2.50
11-1
1138144100
ref: 11-1
11381-44101
COVER,CONTACT BREAKER
€ 42.00
11-2
1138144101
ref: 11-2
COVER,CONTACT BREAKER
€ 42.00
12
1149144100
ref: 12
GASKET,CONTACT BREAKER COVER (NAS)
€ 4.50
13-1
0211205168
ref: 13-1
02112-05167
SCREW
€ 2.50
13-2
0154405168
ref: 13-2
01547-05167
BOLT 5X16
€ 2.00
14
6823344100
ref: 14
EMBLEM,MAGNETO COVER
€ 15.50
15-1
1135144100
ref: 15-1
11351-44102
COVER
€ 45.00
15-2
1135144101
ref: 15-2
11351-44102
COVER
€ 45.00
16
1148344100
ref: 16
11483-44110
GASKET,MAGNETO COVER (MCA)
€ 12.50
17
0920613001
ref: 17
04211-13189
PIN
€ 2.50
18-1
0211206358
ref: 18-1
02112-06357
SCREW (6X35)
€ 2.50
18-2
0154706358
ref: 18-2
01547-06357
BOLT (6X35)
€ 2.50
19
6823344100
ref: 19
EMBLEM,MAGNETO COVER
€ 15.50
20-1
1136144100
ref: 20-1
11361-44101
COVER,SPROCKET
€ 86.00
20-2
1136144101
ref: 20-2
COVER,ENGINE SPROCKET
€ 86.00
21
0835111009
ref: 21
NIPPLE
€ 32.00
22
0421109129
ref: 22
PIN
€ 2.00
23-1
0211206658
ref: 23-1
02112-06657
SCREW 6X65
€ 2.00
23-2
0154706658
ref: 23-2
01547-06657
BOLT (6X65)
€ 2.00
24-1
0211206508
ref: 24-1
02112-06507
SCREW
€ 2.50
24-2
0154706508
ref: 24-2
01547-06507
BOLT (6X50)
€ 2.50
25-1
0211206408
ref: 25-1
02112-06407
SCREW
€ 2.00
25-2
0154706408
ref: 25-2
01547-06407
BOLT (6X40)
€ 2.50
26
1138244100
ref: 26
11382-44111
COVER,STARTER MOTOR
€ 20.50
27
0211205088
ref: 27
02112-05087
SCREW
€ 2.00
28
1138744100
ref: 28
CAP,CLUTCH RELEASE ADJUST
€ 10.00
29
0213205127
ref: 29
02122-05127
SCREW 5X12
€ 2.50
30-1
3782044100
ref: 30-1
37820-33D10
SWITCH ASSEMBLY
€ 29.00
30-2
3782034200
ref: 30-2
37820-33D10
SWITCH ASSEMBLY
€ 29.00
