OIL FILTER - OIL PUMP
GS450TX 1981 (X) USA (E03)

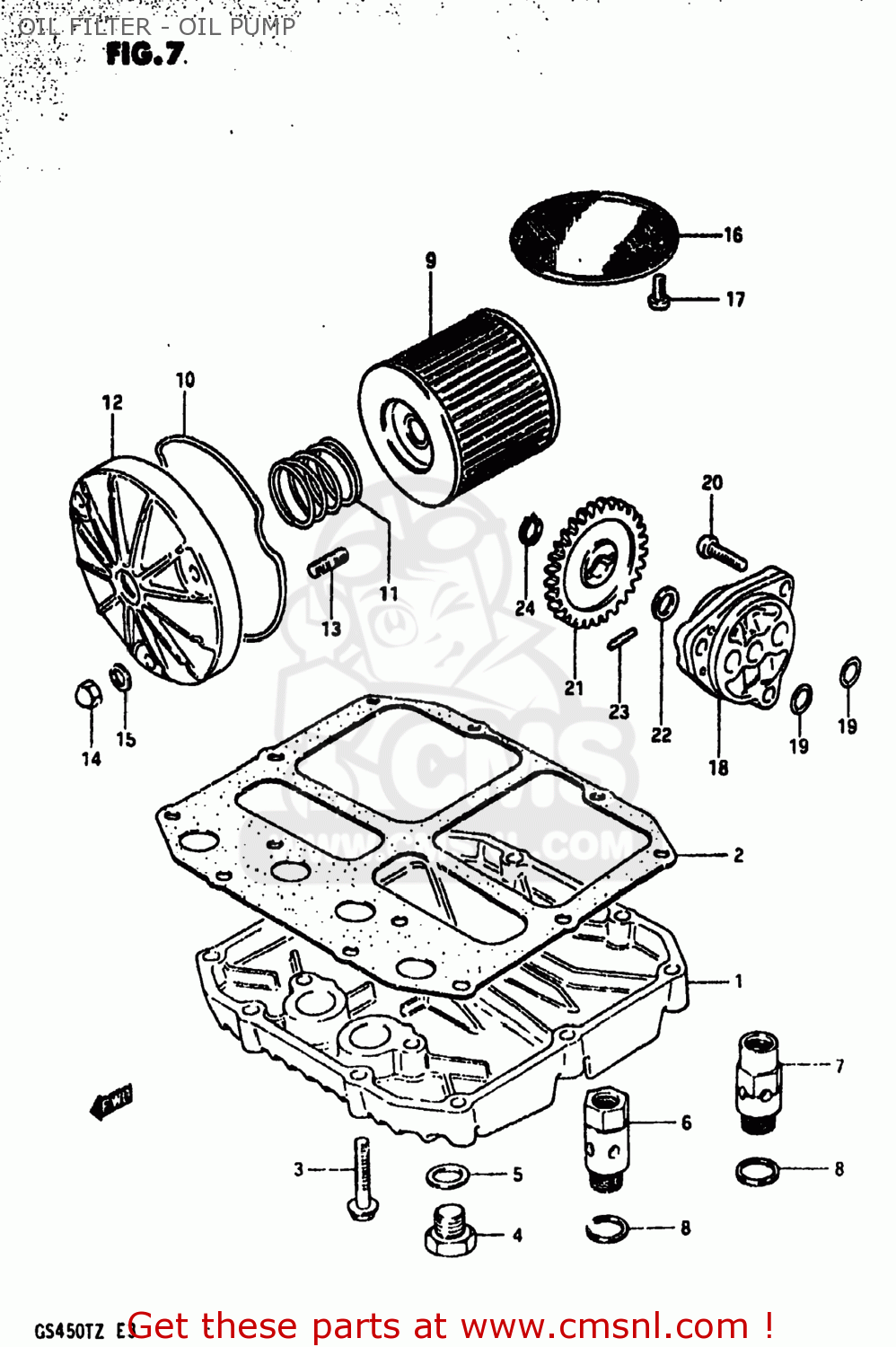

Oil filter - oil pump diagram GS450TX 1981 (X) USA (E03)
OIL FILTER - OIL PUMP GS450TX 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1151144100
ref: 1
PAN,OIL
€ 83.50
2
1148944100
ref: 2
11489-44110
GASKET,OIL PAN (MCA)
€ 11.00
3
0151706308
ref: 3
01550-06307
BOLT
€ 2.00
4
0924714001
ref: 4
09247-14002
PLUG
€ 5.00
5
0916814004
ref: 5
GASKET(14X19.2X2) (NAS)
€ 2.50
6
1644044100
ref: 6
16440-11D00
REGULATOR ASSEMBLY,ENGINE
€ 37.00
7
1644034301
ref: 7
16440-11D00
REGULATOR ASSEMBLY,ENGINE
€ 37.00
8
0821214181
ref: 8
WASHER
€ 2.00
9
1651045040
ref: 9
FILTER ASSY,ENGINE OIL
€ 7.50
10
1651845000
ref: 10
O RING,OIL FILTER CHAMBER CAP
€ 7.50
11
0944032004
ref: 11
SPRING
€ 13.50
12
1651245101
ref: 12
CAP,ENGINE OIL FILTER
€ 37.50
13
0142106208
ref: 13
01421-0620A
STUD 6X20
€ 2.50
14
0831311068
ref: 14
08313-10067
NUT
€ 2.00
15
0832221068
ref: 15
08322-01067
WASHER
€ 2.00
16-1
1652045000
ref: 16-1
16520-45010
STRAINER,ENGINE OIL
€ 12.00
16-2
1652045010
ref: 16-2
STRAINER,ENGINE OIL
€ 12.00
17
0211206128
ref: 17
02112-06127
SCREW 6X12
€ 2.00
18
1640044100
ref: 18
PUMP ASSY,ENGINE OIL
€ 164.50
19
0928013004
ref: 19
O RING(D:1.9,ID:13)
€ 2.50
20
0211206258
ref: 20
02112-06257
SCREW
€ 2.00
21
1633144000
ref: 21
GEAR,OIL PUMP DRIVEN
€ 34.00
22
0822110185
ref: 22
SHIM
€ 2.00
23
0926104009
ref: 23
PIN(4X15.8)
€ 1.50
24
0833131109
ref: 24
CIRCLIP
€ 2.00
