CANISTER (CALIFORNIA ONLY)
GS500E 1989 (K) USA (E03)

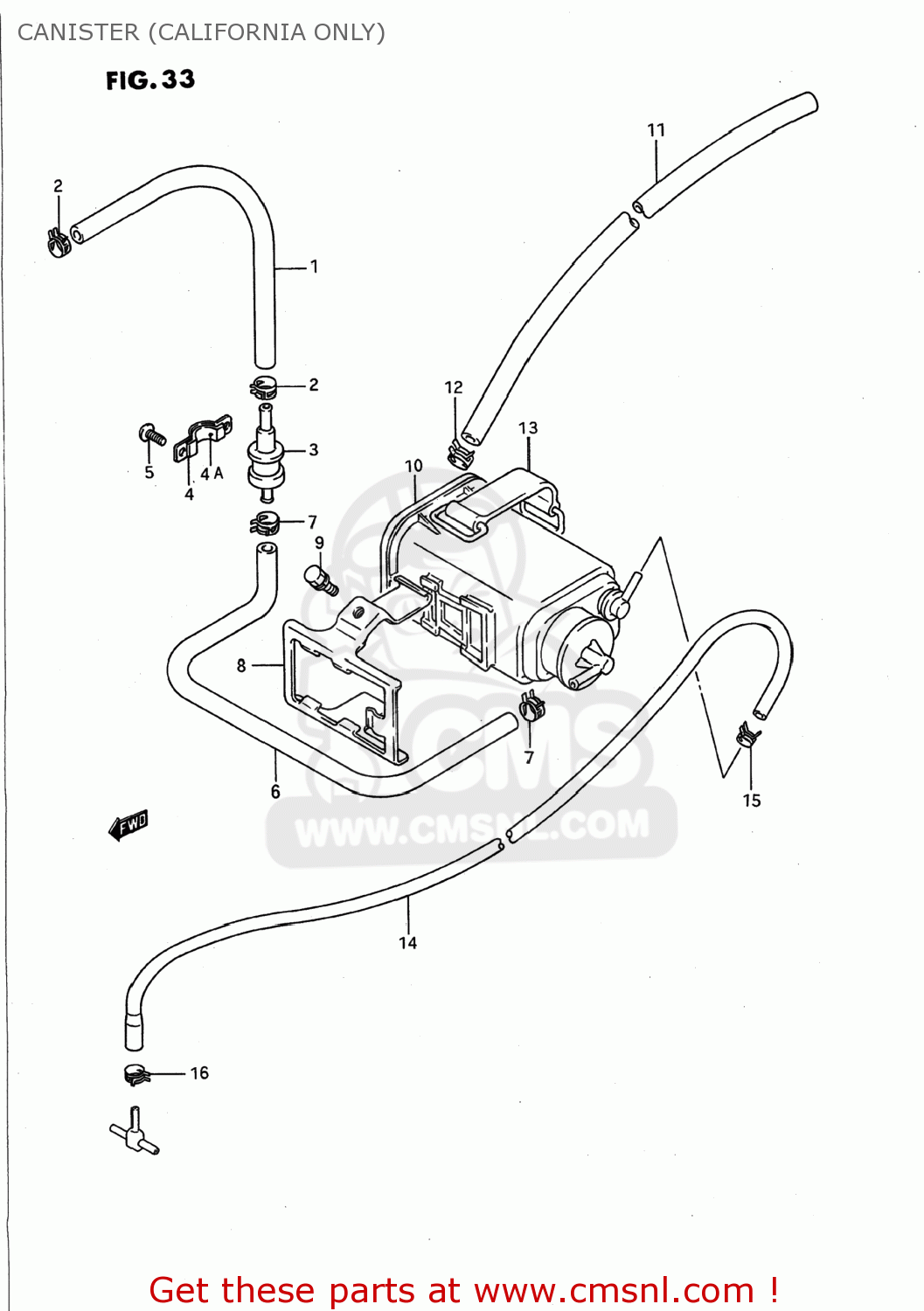

Canister (california only) diagram GS500E 1989 (K) USA (E03)
CANISTER (CALIFORNIA ONLY) GS500E 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
0935454115600
ref: 1
09355-54115-600
HOSE (5.4X11.4X600)
€ 20.00
2-1
0940111410
ref: 2-1
09401-11413
(CA) CLIP
€ 2.50
2-2
0940111413
ref: 2-2
CLIP
€ 2.50
3
4424038A00
ref: 3
VALVE,FUEL TANK BREATHER
€ 35.00
4
4489224A00
ref: 4
PLATE,FUEL TANK BREATHER NO.2
€ 3.00
4A
4489424A00
ref: 4A
CUSHION
€ 1.50
5
0214204103
ref: 5
02142-0410A
SCREW
€ 1.50
6
0934305503
ref: 6
HOSE(5.4X11.4X350)
€ 6.00
7-1
0940111410
ref: 7-1
09401-11413
(CA) CLIP
€ 2.50
7-2
0940111413
ref: 7-2
CLIP
€ 2.50
8
4488001D00
ref: 8
PLATE,CSTR FITING
€ 14.50
9-1
0214206104
ref: 9-1
02142-0610A
SCREW
€ 2.00
9-2
0113706105
ref: 9-2
01570-0610A
BOLT,BRAKE JOINT
€ 2.50
9-3
0157006103
ref: 9-3
01570-0610A
BOLT
€ 2.50
10
1721001D00
ref: 10
CANISTER ASSY,CHARCOAL
€ 194.00
11
0935470123600
ref: 11
44421-12FR0
HOSE (7X12X600)
€ 26.00
12-1
0940112406
ref: 12-1
09401-11415
CLAMP
€ 2.50
12-2
0940111407
ref: 12-2
09401-11415
CLIP
€ 2.50
13
0946200073
ref: 13
09462-00093
BAND
€ 8.50
14
0935935751600
ref: 14
HOSE(3.5X7.5X600)
€ 13.00
15-1
0940106404
ref: 15-1
09401-06405
CLAMP
€ 2.00
15-2
0940106405
ref: 15-2
CLIP
€ 2.00
16-1
0940108407
ref: 16-1
09401-08411
CLIP
€ 3.00
16-2
0940108411
ref: 16-2
CLIP
€ 3.00
