HEADLAMP HOUSING (MODEL R/S/T)
GS500E 1989 (K) USA (E03)

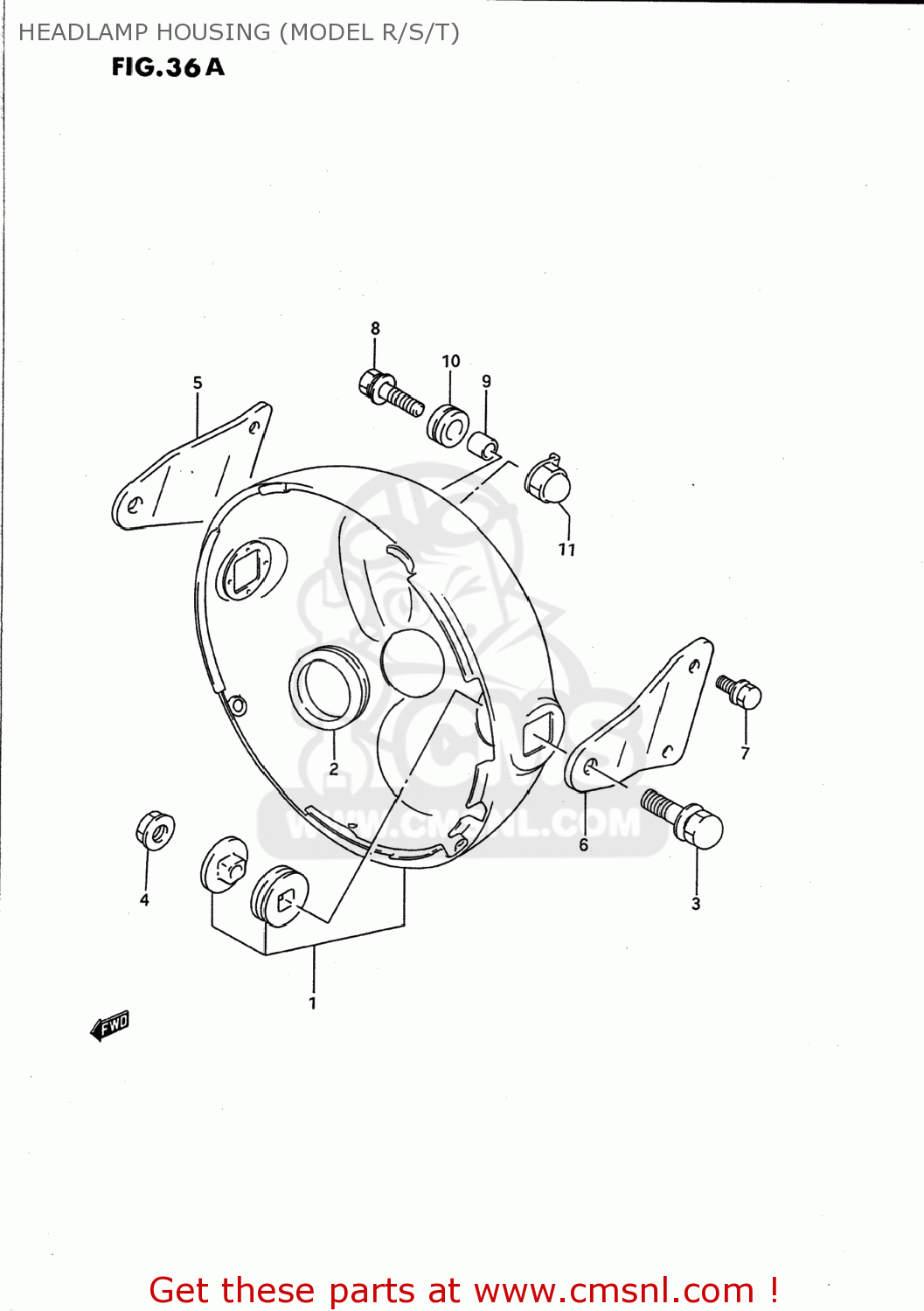

Headlamp housing (model r/s/t) diagram GS500E 1989 (K) USA (E03)
HEADLAMP HOUSING (MODEL R/S/T) GS500E 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5181001D31
ref: 1
HOUSING,HEADLAMP
€ 100.50
2
5181701D00
ref: 2
51817-01D01
GROMMET
€ 4.50
3
0155008307
ref: 3
BOLT
€ 3.50
4
0831610083
ref: 4
08316-1008B
NUT
€ 3.00
5
5185101D11
ref: 5
51011-0BE00
STAY,HEADLAMP HOUSING,R
€ 29.00
6
5186101D11
ref: 6
51011-0BE00
STAY,HEADLAMP HOUSING,L
€ 29.00
7
0155006127
ref: 7
BOLT
€ 2.50
8
0911806007
ref: 8
09118-06086
BOLT
€ 3.00
9
0918007004
ref: 9
SPACER(6.5X10.5X12)
€ 2.50
10
0932010015
ref: 10
CUSHION
€ 2.50
11
5181506C00
ref: 11
PLATE,HEADLAMP
€ 5.00
