FRAME
GS500E 1989 (K) USA (E03)

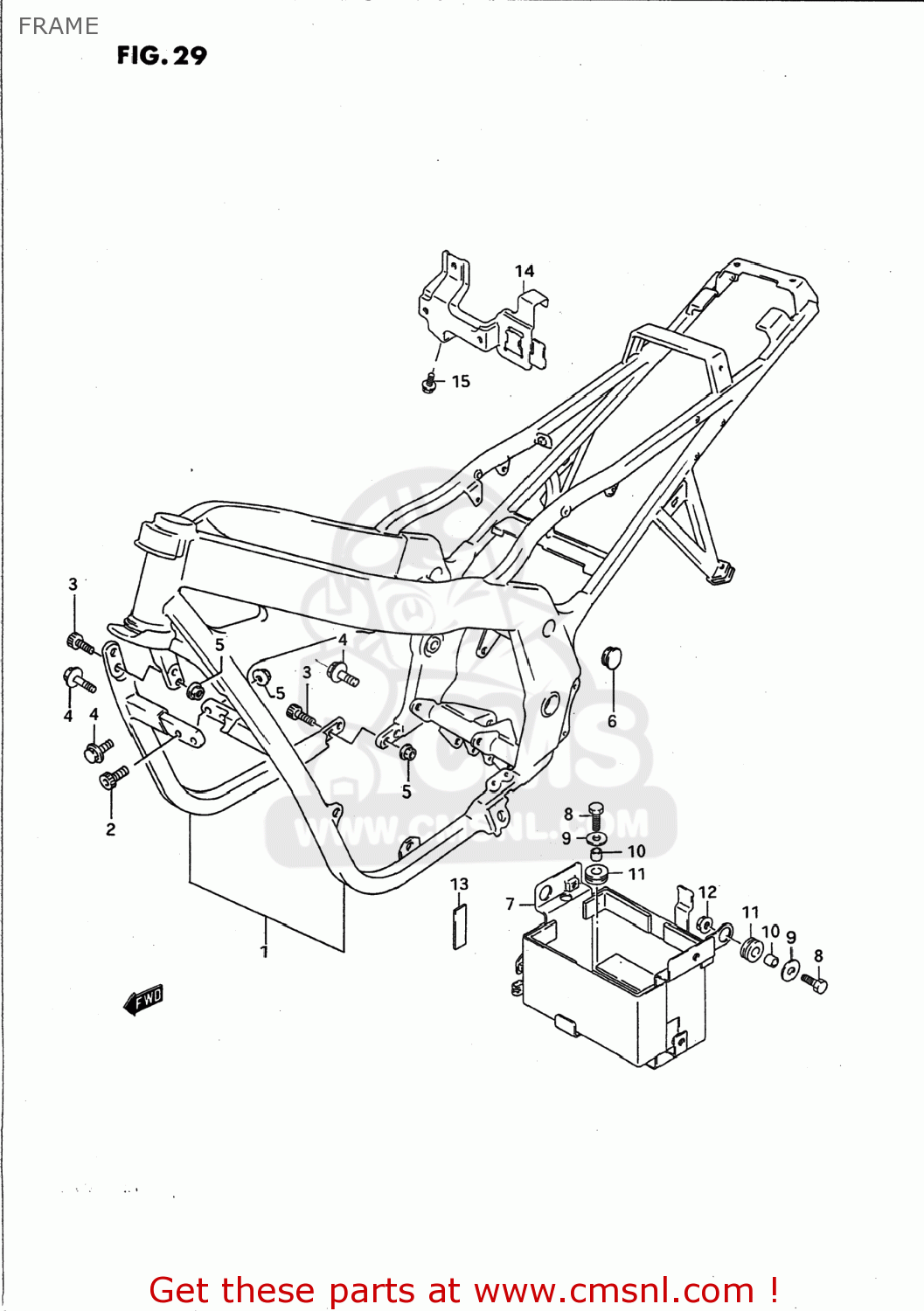

Frame diagram GS500E 1989 (K) USA (E03)
FRAME GS500E 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
41102018200FP
ref: 1-1
41102-01830-0FP
FRAME
€ 1,171.00
1-2
41102018300FP
ref: 1-2
FRAME
€ 1,171.00
1-3
41102018400FP
ref: 1-3
41102-01860-0FP
FRAME
€ 1,171.00
1-4
411020185113L
ref: 1-4
41102-01871-13L
FRAME
€ 1,349.50
1-5
411020187013L
ref: 1-5
41102-01871-13L
FRAME
€ 1,349.50
1-6
411020187117U
ref: 1-6
FRAME SET(GRAY)
€ 1,349.50
2
0713010357
ref: 2
BOLT
€ 3.50
3
0713010307
ref: 3
BOLT
€ 4.50
4-1
0153710358
ref: 4-1
01550-10357
BOLT
€ 3.50
4-2
0155010357
ref: 4-2
BOLT
€ 3.50
5
0831931107
ref: 5
NUT
€ 3.00
6
4358501D00
ref: 6
CAP,BODY FRAME
€ 5.00
7-1
4154001D00
ref: 7-1
41540-01D10
HOLDER,BATTERY
€ 37.00
7-2
4154001D20
ref: 7-2
41540-01D21
HOLDER,BATTERY
€ 77.50
7-3
4154001D31
ref: 7-3
HOLDER,BATTERY
€ 77.50
7-4
4154001D10
ref: 7-4
HOLDER COMP,BATTERY
€ 37.00
7-5
4154001D30
ref: 7-5
41540-01D31
HOLDER COMP,BATTERY
€ 77.50
7-6
4154001D31
ref: 7-6
HOLDER,BATTERY
€ 77.50
7-6
4154001D31
ref: 7-6
HOLDER,BATTERY
€ 77.50
8-1
0150006163
ref: 8-1
01500-0616A
BOLT
€ 2.00
8-2
0911606083
ref: 8-2
09116-06167
BOLT
€ 2.00
9
0916006059
ref: 9
09160-06088
WASHER,COVER,FRONT
€ 2.00
10-1
0918006103
ref: 10-1
SPACER(6.2X9X7.5)
€ 1.50
10-2
0918006038
ref: 10-2
SPACER(6.1X9X7.5)
€ 2.00
11-1
0932008007
ref: 11-1
09320-08021
CUSHION
€ 4.00
11-2
0932008021
ref: 11-2
CUSHION
€ 4.00
12-1
0915906017
ref: 12-1
08319-31067
NUT
€ 2.50
12-2
0831610063
ref: 12-2
08316-1006B
NUT
€ 2.50
13
4489424A00
ref: 13
CUSHION
€ 1.50
14
4741001D00
ref: 14
HOLDER,ELECTRIC PARTS
€ 14.00
15-1
0215206206
ref: 15-1
SCREW
€ 2.50
15-2
0214206203
ref: 15-2
02142-0620A
SCREW
€ 2.00
15-3
0155006163
ref: 15-3
01550-0616A
BOLT
€ 2.50
