CUSHION LEVER (MODEL K/L)

GS500E 1989 (K) USA (E03)

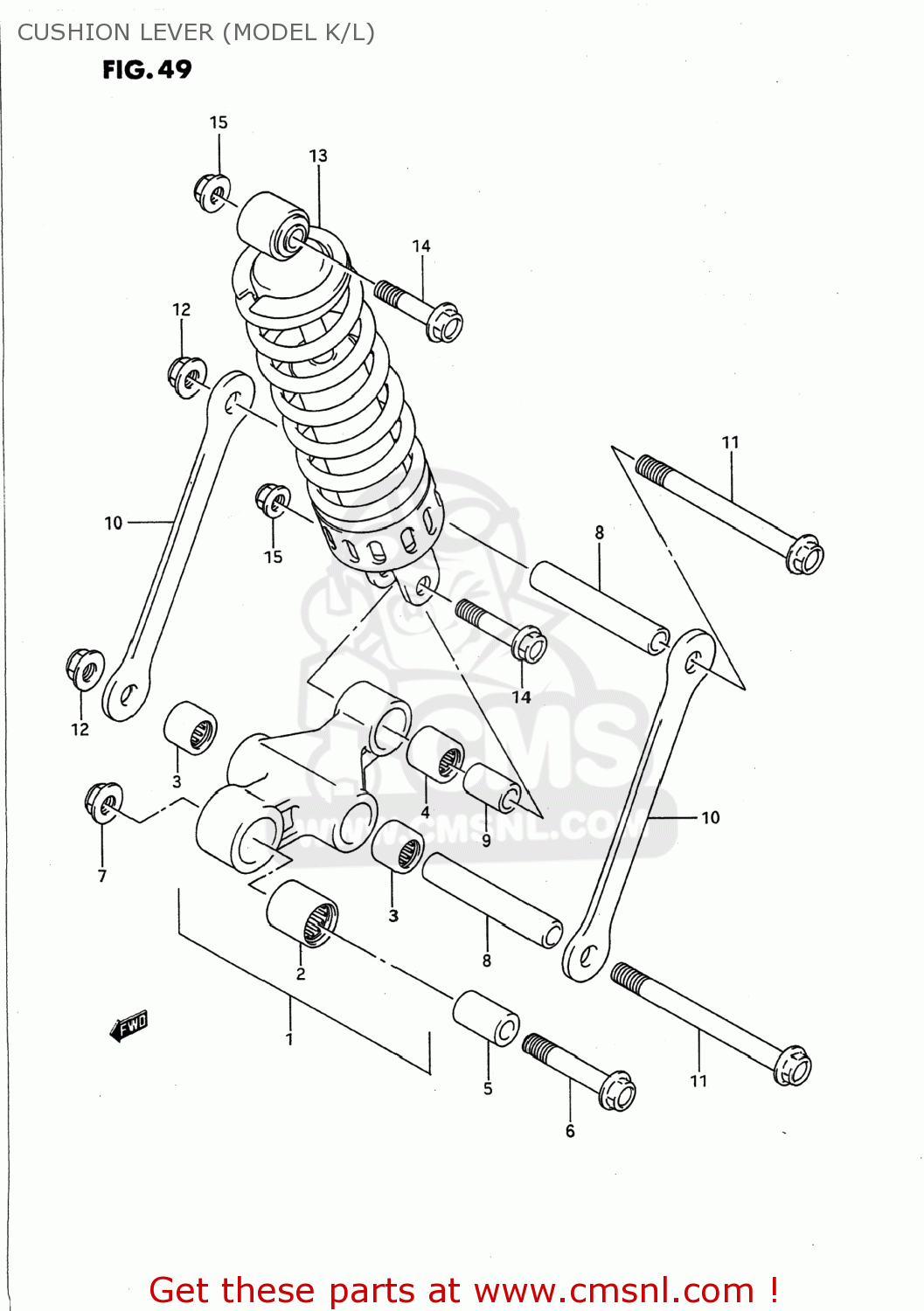

Cushion lever (model k/l) diagram GS500E 1989 (K) USA (E03)

CUSHION LEVER (MODEL K/L) GS500E 1989 (K) USA (E03)

CUSHION LEVER (MODEL K/L) GS500E 1989 (K) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6260101810
ref: 1

LEVER SET,RR CUSHION

€ 236.50

2

0926320064
ref: 2

BEARING(20X27X26)

€ 21.50

3

0926317037
ref: 3

BEARING(17X24X25)

€ 19.00

4

0926317034
ref: 4

BEARING(17X24X26)

€ 23.50

5

6268405C00
ref: 5
62684-01D00

SPACER,REAR CUSHION LEVER

€ 18.50

6

0910312042
ref: 6

BOLT(12X57)

€ 6.50

7

0831931128
ref: 7
08319-3112A

NUT 12MM

€ 4.50

8

0918012125
ref: 8

SPACER(12X17X89)

€ 24.50

9

6268440A10
ref: 9

SPACER,RR CUSHION LEVER

€ 13.00

10

6264101D01
ref: 10
62641-01D02

ROD,REAR CUSHION LEVER

€ 22.00

11

0910312041
ref: 11

BOLT(12X118)

€ 11.50

12

0831931128
ref: 12
08319-3112A

NUT 12MM

€ 4.50

13

6210001D01
ref: 13
62100-01D10

ABSORBER ASSEMBLY,REAR SHOCK

€ 357.50

14

0910310213
ref: 14

BOLT(10X52)

€ 5.00

15

0831931107
ref: 15

NUT

€ 3.50
