CRANKCASE
GS500E 1989 (K) USA (E03)

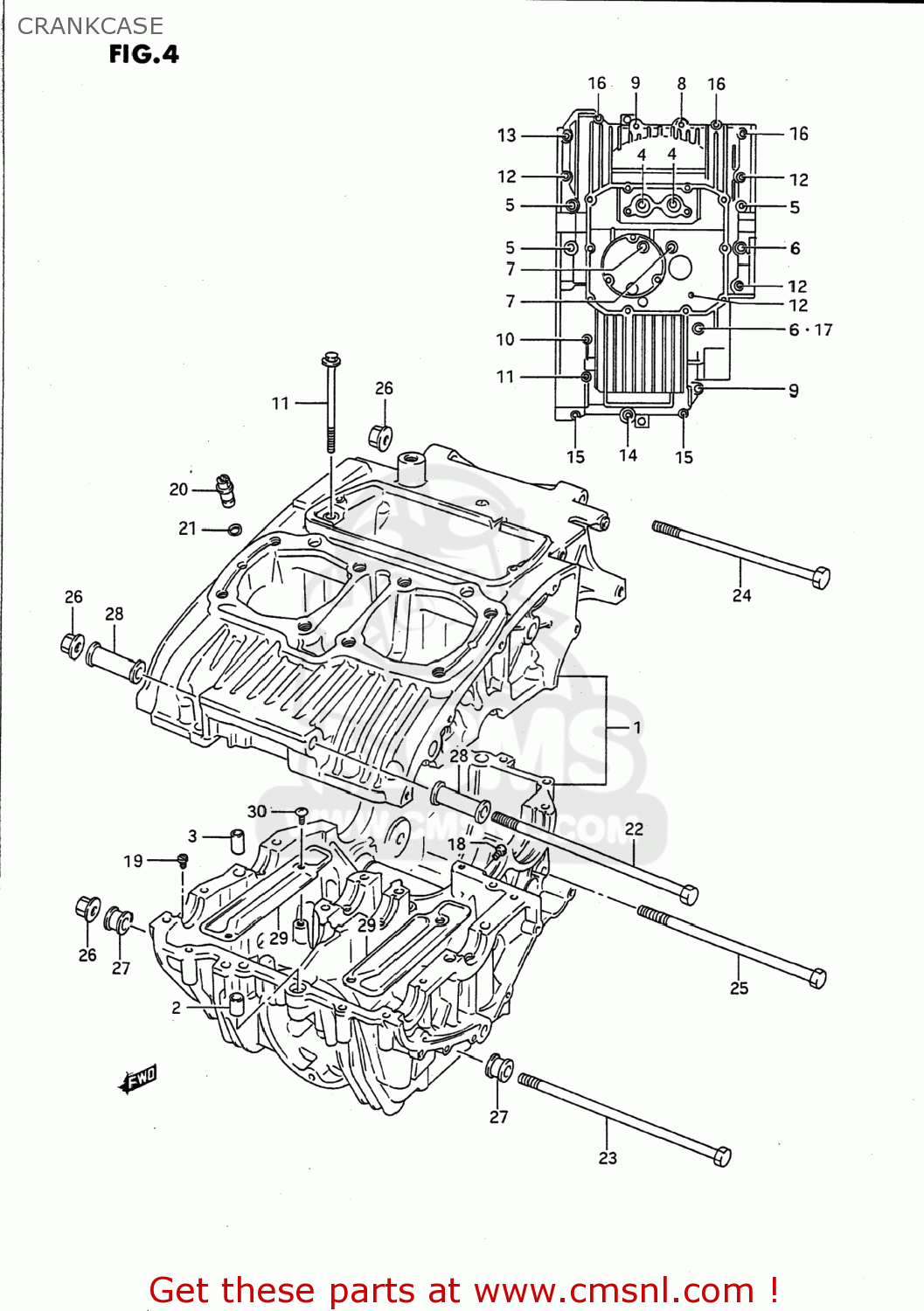

Crankcase diagram GS500E 1989 (K) USA (E03)
CRANKCASE GS500E 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130044881
ref: 1
CRANKCASE SET
€ 1,172.50
2
0920613004
ref: 2
PIN(10.4X13X22)
€ 3.00
3
0920611005
ref: 3
09206-11017
PIN (11X20)(SUS)
€ 6.50
4
0713008703
ref: 4
07130-0870B
BOLT
€ 4.00
5
0910308182
ref: 5
BOLT(8X125)
€ 4.50
6-1
0910308024
ref: 6-1
09103-08134
BOLT
€ 3.00
6-2
0910308134
ref: 6-2
BOLT(8X110)
€ 3.00
7-1
0910308070
ref: 7-1
BOLT(8X100)
€ 5.00
7-2
0910308230
ref: 7-2
BOLT(8X100)
€ 3.00
8-1
0151708655
ref: 8-1
01550-0865A
BOLT (8X65)
€ 3.00
8-2
0155008653
ref: 8-2
01550-0865A
BOLT
€ 3.00
9-1
0151708455
ref: 9-1
01550-0845A
BOLT
€ 3.00
9-2
0155008453
ref: 9-2
01550-0845A
BOLT
€ 3.00
10
0910306033
ref: 10
BOLT(6X125)
€ 3.50
11
0910306067
ref: 11
BOLT(6X105)
€ 3.50
12-1
0151706905
ref: 12-1
01550-0690B
BOLT (6X90)
€ 3.50
12-2
0155006903
ref: 12-2
01550-0690B
BOLT (6X90)
€ 3.50
13-1
0151706705
ref: 13-1
01550-0670B
BOLT
€ 2.50
13-2
0155006703
ref: 13-2
01550-0670B
BOLT
€ 2.50
14-1
0151706655
ref: 14-1
BOLT
€ 2.50
14-2
0155006653
ref: 14-2
01550-0665A
BOLT
€ 2.50
15
0155006507
ref: 15
BOLT
€ 2.00
16-1
0151706455
ref: 16-1
01550-0645A
BOLT (6X45)
€ 2.50
16-2
0155006453
ref: 16-2
01550-0645A
BOLT (6X45)
€ 2.50
17
0916808008
ref: 17
09168-08016
GASKET 8.2X14X1 (NAS)
€ 1.00
18
0949322010
ref: 18
JET,AIR
€ 12.00
19
0949332002
ref: 19
JET
€ 11.50
20
0949324008
ref: 20
JET
€ 16.00
21
0928003003
ref: 21
O RING(D:1.05,ID:3.1)
€ 2.50
22
0910310137
ref: 22
BOLT(10X255)
€ 10.00
23
0910310212
ref: 23
BOLT(10X240)
€ 15.50
24
0910310127
ref: 24
BOLT(10X170)
€ 16.00
25-1
0910310150
ref: 25-1
09103-10278
BOLT
€ 9.50
25-2
0910310278
ref: 25-2
BOLT(10X160)
€ 9.50
26-1
0831931107
ref: 26-1
NUT
€ 3.00
26-2
0915910078
ref: 26-2
NUT
€ 4.50
27-1
1161001D00
ref: 27-1
11611-01D10
SPACER COMP,ENGINE MOUNTING,LEFT
€ 8.00
27-2
1161101D10
ref: 27-2
SPACER,ENG MTG(L:16.8)
€ 8.00
28
1161045410
ref: 28
SPACER,ENGINE MOUNT(L:65)
€ 11.50
29
1152144100
ref: 29
PLATE,OIL SEPARATOR
€ 3.00
30
0211206123
ref: 30
02112-0612A
SCREW
€ 1.50
