OIL FILTER - OIL PUMP
GS500E 1989 (K) USA (E03)

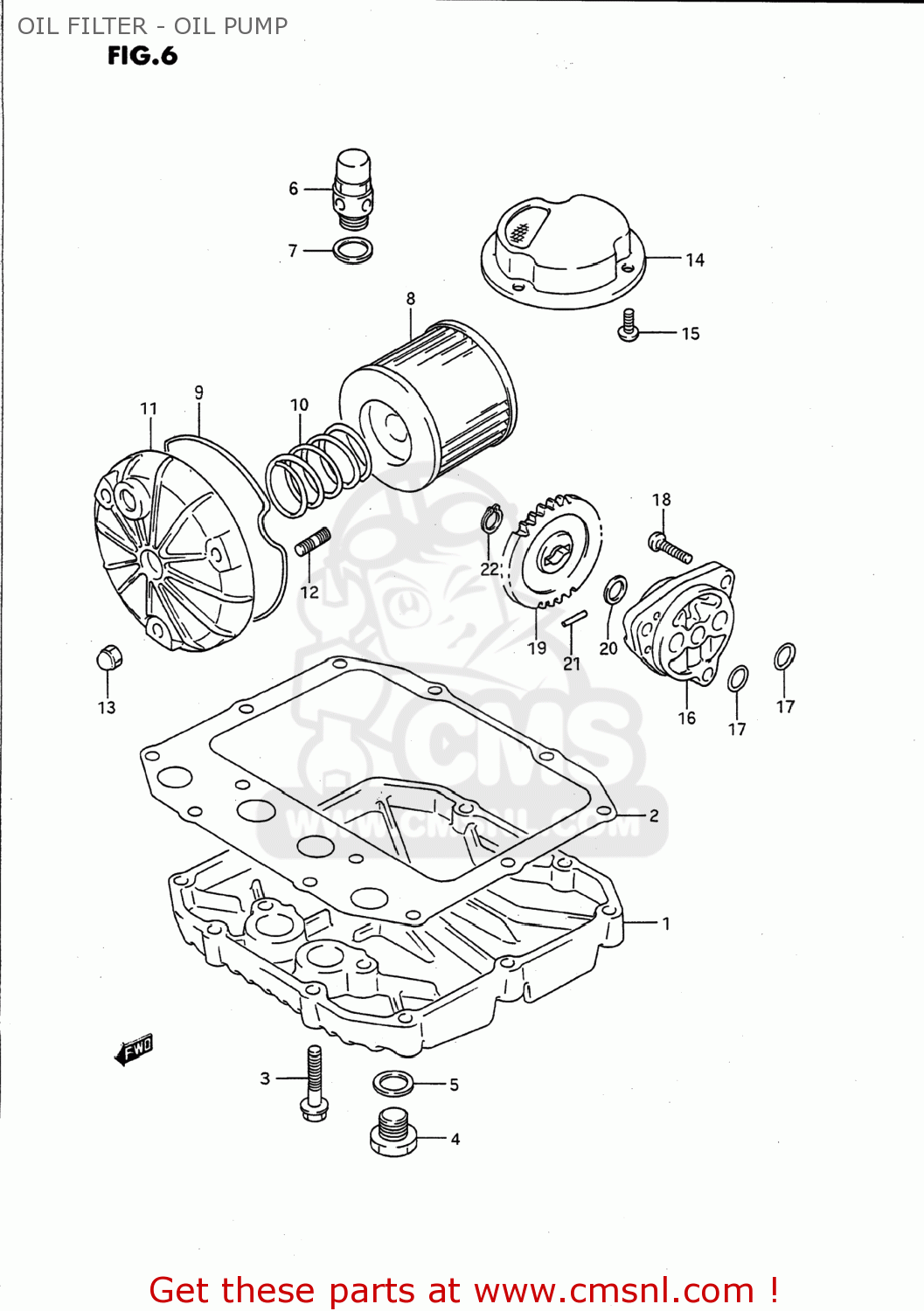

Oil filter - oil pump diagram GS500E 1989 (K) USA (E03)
OIL FILTER - OIL PUMP GS500E 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1151144100
ref: 1
PAN,OIL
€ 83.50
2-1
1148944102
ref: 2-1
11489-44110
GASKET,OIL PAN (NAS)
€ 11.00
2-2
1148944110
ref: 2-2
GASKET,OIL PAN(ASB) (NAS)
€ 11.00
3-1
0151706307
ref: 3-1
01550-06307
BOLT
€ 2.00
3-2
0155006303
ref: 3-2
01550-0630A
BOLT
€ 2.50
4
0924714001
ref: 4
09247-14002
PLUG
€ 5.00
5
0916814002
ref: 5
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
6-1
1644033300
ref: 6-1
16440-11D00
VALVE ASSEMBLY,OIL RELIEF
€ 37.00
6-2
1644005C01
ref: 6-2
16440-11D00
REGULATOR ASSEMBLY,ENGINE
€ 37.00
7
0821214181
ref: 7
WASHER
€ 2.00
8
1651045040
ref: 8
FILTER ASSY,ENGINE OIL
€ 7.50
9
1651845000
ref: 9
O RING,OIL FILTER CHAMBER CAP
€ 7.50
10
0944032004
ref: 10
SPRING
€ 13.50
11-1
1651244410
ref: 11-1
16512-45D00
CAP,OIL FILTER
€ 47.00
11-2
1651244400
ref: 11-2
16512-45D00
CAP,OIL FILTER
€ 47.00
11-3
1651215510
ref: 11-3
16512-45D00
CAP,OIL FILTER
€ 47.00
11-4
1651245D00
ref: 11-4
CAP,OIL FILTER
€ 47.00
12
0142106208
ref: 12
01421-0620A
STUD 6X20
€ 2.50
13-1
0831321064
ref: 13-1
08313-2006A
NUT 6MM
€ 2.00
13-2
0831321067
ref: 13-2
08313-20067
NUT
€ 2.00
13-3
0831320063
ref: 13-3
08313-2006A
NUT
€ 2.00
14
1652001D01
ref: 14
STRAINER,ENGINE OIL
€ 12.50
15
0211206123
ref: 15
02112-0612A
SCREW
€ 1.50
16
1640044100
ref: 16
PUMP ASSY,ENGINE OIL
€ 164.50
17
0928013004
ref: 17
O RING(D:1.9,ID:13)
€ 2.50
18
0211206253
ref: 18
02112-0625A
SCREW
€ 1.50
19-1
1633101D00
ref: 19-1
16331-01D10
GEAR,OIL PUMP DRIVEN
€ 46.00
19-2
1633101D10
ref: 19-2
GEAR,OIL PUMP DRIVEN
€ 46.00
20
0822110185
ref: 20
SHIM
€ 2.00
21
0926104009
ref: 21
PIN(4X15.8)
€ 1.50
22
0833131106
ref: 22
08331-3110A
CIRCLIP,10MM
€ 2.00
