REAR COMBINATION LAMP

GS500E 1989 (K) USA (E03)

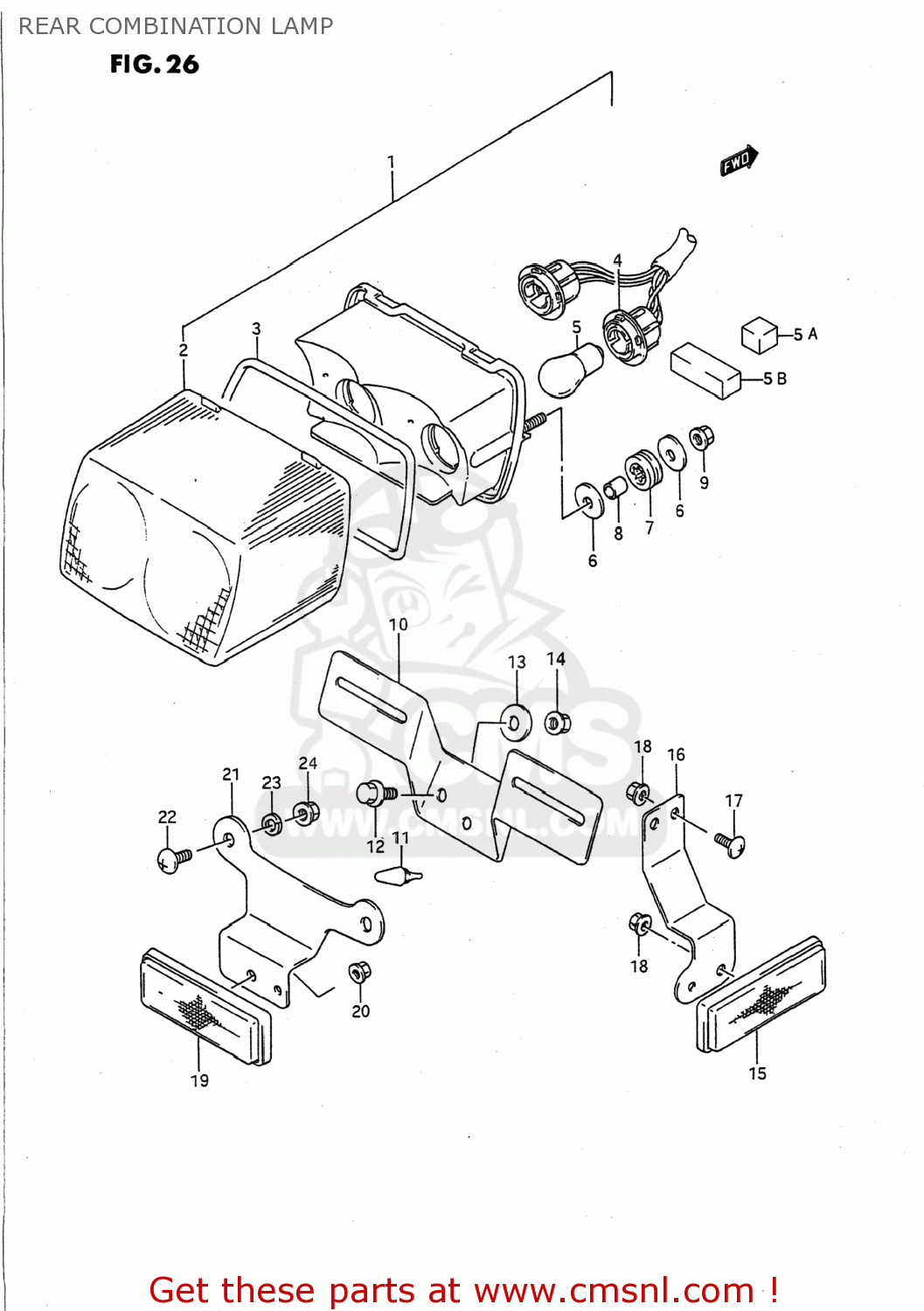

Rear combination lamp diagram GS500E 1989 (K) USA (E03)

REAR COMBINATION LAMP GS500E 1989 (K) USA (E03)

REAR COMBINATION LAMP GS500E 1989 (K) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3571001D10
ref: 1-1
35710-01D11

3571001D10

1-2

3571001D11
ref: 1-2

3571001D11

2

3571201D10
ref: 2

3571201D10

3

3571301D00
ref: 3

3571301D00

4-1

3571801D10
ref: 4-1
35718-12D00

3571801D10

4-2

3571812D00
ref: 4-2

3571812D00

5

0947112083
ref: 5
09471-12128

0947112083

5A

3573301D00
ref: 5A
35733-10D00

3573301D00

5B

3573310D00
ref: 5B

3573310D00

6-1

0916006086
ref: 6-1
09160-06077

0916006086

6-2

0916006077
ref: 6-2

0916006077

7

0932009009
ref: 7

0932009009

8

0918006152
ref: 8
09180-06262

0918006152

9-1

0831616066
ref: 9-1
08316-1006B

0831616066

9-2

0831012066
ref: 9-2
08310-0006A

0831012066

9-3

0831000063
ref: 9-3
08310-0006A

0831000063

10

3592701D10
ref: 10

3592701D10

11

0932106028
ref: 11

0932106028

12-1

0151706164
ref: 12-1
01550-0616A

0151706164

12-2

0155006163
ref: 12-2
01550-0616A

0155006163

12-3

0214206163
ref: 12-3
02142-0616A

0214206163

13-1

0916006059
ref: 13-1
09160-06088

0916006059

13-2

0916006077
ref: 13-2

0916006077

14-1

0831626066
ref: 14-1
08316-1006B

0831626066

14-2

0831012066
ref: 14-2
08310-0006A

0831012066

14-3

0831000063
ref: 14-3
08310-0006A

0831000063

15-1

3597000A10
ref: 15-1

3597000A10

15-2

3597024D60
ref: 15-2

3597024D60

16-1

3597701D10
ref: 16-1
35977-01D11

3597701D10

16-2

3597801D10
ref: 16-2
35977-01D11

3597801D10

16-3

3597701D11
ref: 16-3

3597701D11

17-1

0214205124
ref: 17-1
02142-0512A

0214205124

17-2

0214205123
ref: 17-2
02142-0512A

0214205123

18-1

0831626055
ref: 18-1
08316-2005A

0831626055

18-2

0831011056
ref: 18-2
08310-0005A

0831011056

18-3

0831000053
ref: 18-3
08310-0005A

0831000053

19-1

3597000A21
ref: 19-1
35970-00A10

3597000A21

19-2

3597024D60
ref: 19-2

3597024D60

20-1

0831626055
ref: 20-1
08316-2005A

0831626055

20-2

0831011056
ref: 20-2
08310-0005A

0831011056

20-3

0831000053
ref: 20-3
08310-0005A

0831000053

21

3597401D00
ref: 21

3597401D00

22-1

0214206125
ref: 22-1
02142-0612A

0214206125

22-2

0214206123
ref: 22-2
02142-0612A

0214206123

23

0832131064
ref: 23
08321-0106A

0832131064

24-1

0831626065
ref: 24-1
08316-2006A

0831626065

24-2

0831000063
ref: 24-2
08310-0006A

0831000063
