CLUTCH
GS500E 1992 (N) USA (E03)

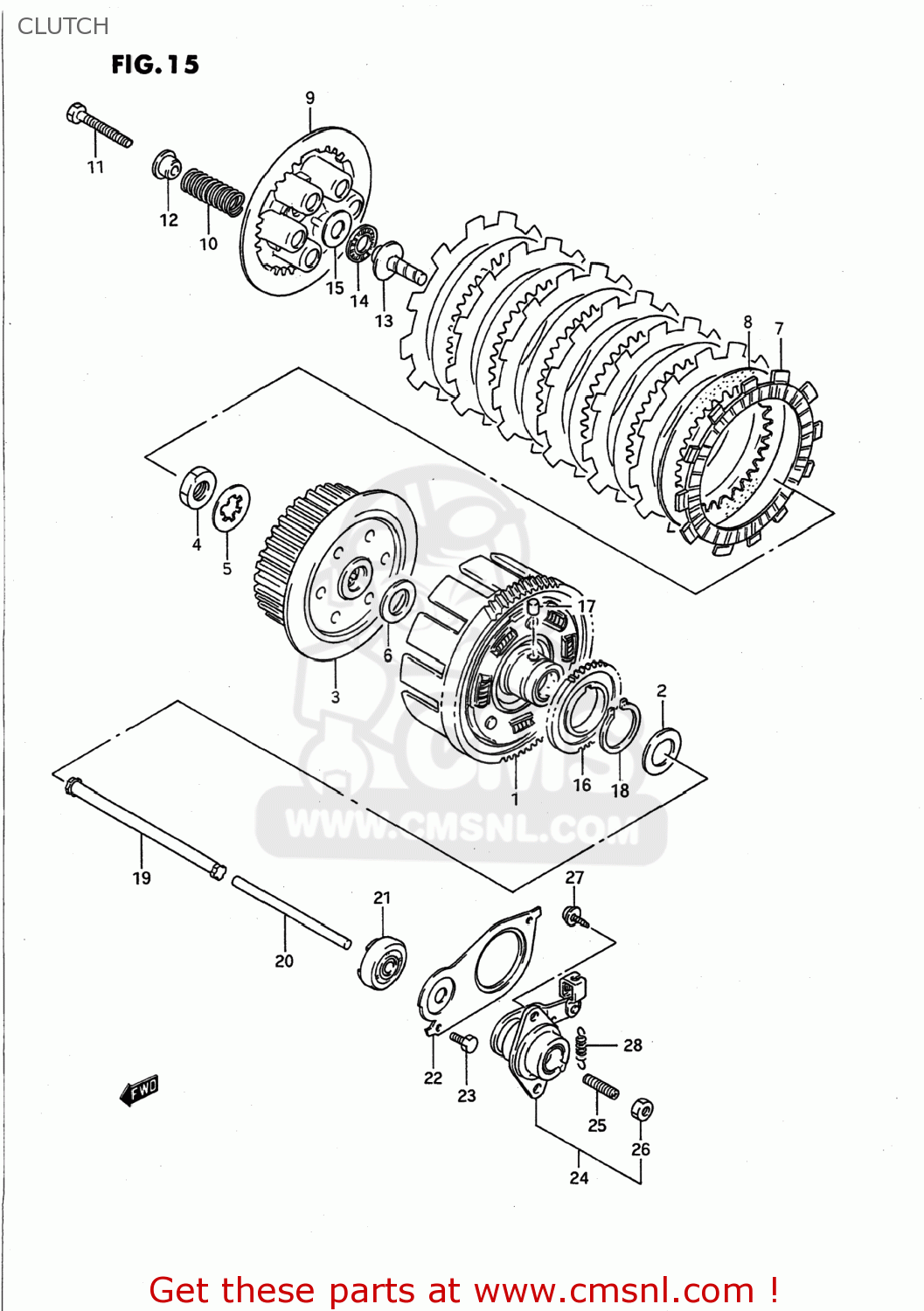

Clutch diagram GS500E 1992 (N) USA (E03)
CLUTCH GS500E 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120044101
ref: 1-1
21200-44102
GEAR ASSEMBLY,PRIMARY DRIVE
€ 333.00
1-2
2120044102
ref: 1-2
GEAR ASSY,PRI DRIVEN
€ 333.00
2
0821125381
ref: 2
09181-25223
WASHER
€ 3.00
3
2141144101
ref: 3
HUB,CLUTCH SLEEVE
€ 56.50
4
0914020002
ref: 4
09140-20001
NUT (20MM)
€ 3.50
5
0916720009
ref: 5
WASHER,LOCK
€ 3.00
6
0916020015
ref: 6
WASHER(20X44X3)
€ 4.50
7
2144137400
ref: 7
PLATE,CLUTCH DRIVE (NAS)
€ 20.50
8-1
2145145000
ref: 8-1
21451-28C31
PLATE,CLUTCH DRIVEN (NAS)
€ 10.50
8-2
2145128C30
ref: 8-2
21451-28C31
PLATE,CLUTCH DRIVEN T: (NAS)
€ 10.50
9-1
2146216501
ref: 9-1
21462-14301
DISC,CLUTCH PRESSURE
€ 51.00
9-2
2146214301
ref: 9-2
DISC,CLUTCH PRESSURE
€ 51.00
10
0944020019
ref: 10
SPRING
€ 8.00
11
0910006145
ref: 11
BOLT(6X40)
€ 2.50
12
2141401D00
ref: 12
SPACER,CLUTCH SLEEVE HUB
€ 5.50
13
2312144100
ref: 13
PIECE,CLUTCH PUSH
€ 21.50
14
0926315003
ref: 14
BEARING(15X28X2)
€ 7.00
15-1
0916015015
ref: 15-1
09160-15045
WASHER
€ 4.00
15-2
0916015045
ref: 15-2
WASHER(15.5X28X1)
€ 4.00
16-1
1632101D00
ref: 16-1
16321-01D10
GEAR,OIL PUMP DRIVE
€ 53.00
16-2
1632101D10
ref: 16-2
GEAR,OIL PUMP DRIVE(NT:39)
€ 53.00
17
0926106002
ref: 17
PIN(6X6)
€ 1.50
18
0833131383
ref: 18
CIRCLIP
€ 2.50
19
2311044111
ref: 19
ROD,PUSH,R
€ 13.00
20
2311124A01
ref: 20
ROD,CLUTCH PUSH,L
€ 15.00
21
0928506011
ref: 21
SEAL,OIL(6X34X10)
€ 9.50
22-1
2311744101
ref: 22-1
23117-44102
PLATE,CLUTCH PUSH ROD
€ 6.50
22-2
2311744102
ref: 22-2
RETAINER,PUSH ROD OIL SEAL
€ 6.50
23-1
0110706127
ref: 23-1
01500-06127
BOLT
€ 2.00
23-2
0150006123
ref: 23-2
01500-0612A
BOLT
€ 2.00
24
2320001D00
ref: 24
SCREW ASSY,CLUTCH RELEASE
€ 78.00
25
0913406010
ref: 25
SCREW(6X25)
€ 3.00
26
0831022067
ref: 26
08310-00067
NUT 6MM
€ 2.50
27-1
0311116168
ref: 27-1
03141-06163
SCREW
€ 2.00
27-2
0314106163
ref: 27-2
SCREW 6X16
€ 2.00
28
0944308001
ref: 28
SPRING
€ 3.00
up
