SIGNAL GENERATOR

GS500E 1992 (N) USA (E03)

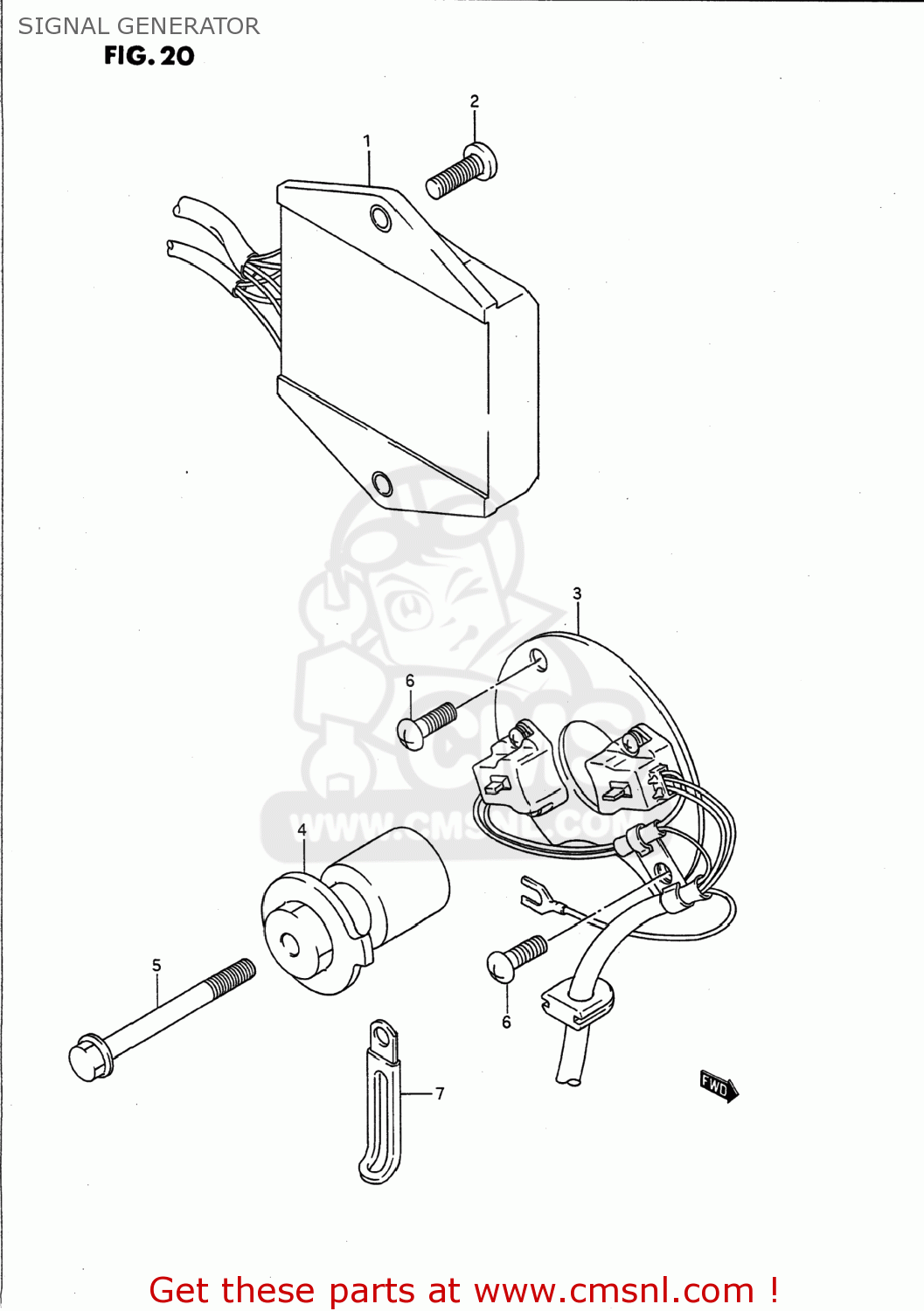

Signal generator diagram GS500E 1992 (N) USA (E03)

SIGNAL GENERATOR GS500E 1992 (N) USA (E03)

SIGNAL GENERATOR GS500E 1992 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3290001D00
ref: 1-1
32900-01D20

IGNITER ASSEMBLY

€ 487.50

1-2

3290001D20
ref: 1-2

IGNITOR ASSY

€ 487.50

1-3

3290001D10
ref: 1-3

IGNITER ASSEMBLY

€ 369.50

2-1

0215206165
ref: 2-1
02112-0616A

SCREW

€ 2.00

2-2

0214216163
ref: 2-2
02142-1616B

SCREW 6X16

€ 2.00

3

3311044420
ref: 3

SIGNAL GENERATOR ASSY

€ 292.50

4-1

3312001D00
ref: 4-1

ROTOR,SIGNAL

€ 90.50

4-2

3312001D10
ref: 4-2

ROTOR,SIGNAL

€ 68.50

5-1

0910306121
ref: 5-1
09103-06064

BOLT

€ 2.50

5-2

0910306064
ref: 5-2

BOLT(6X60)

€ 2.50

6-1

0912505024
ref: 6-1

SCREW(5X12)

€ 2.00

6-2

0211205103
ref: 6-2
02112-0510A

SCREW

€ 2.00

7-1

0940406422
ref: 7-1
09404-06429

CLAMP

€ 2.50

7-2

0940406429
ref: 7-2

CLAMP(L:45)

€ 2.50
