MUFFLER

GS500E 1992 (N) USA (E03)

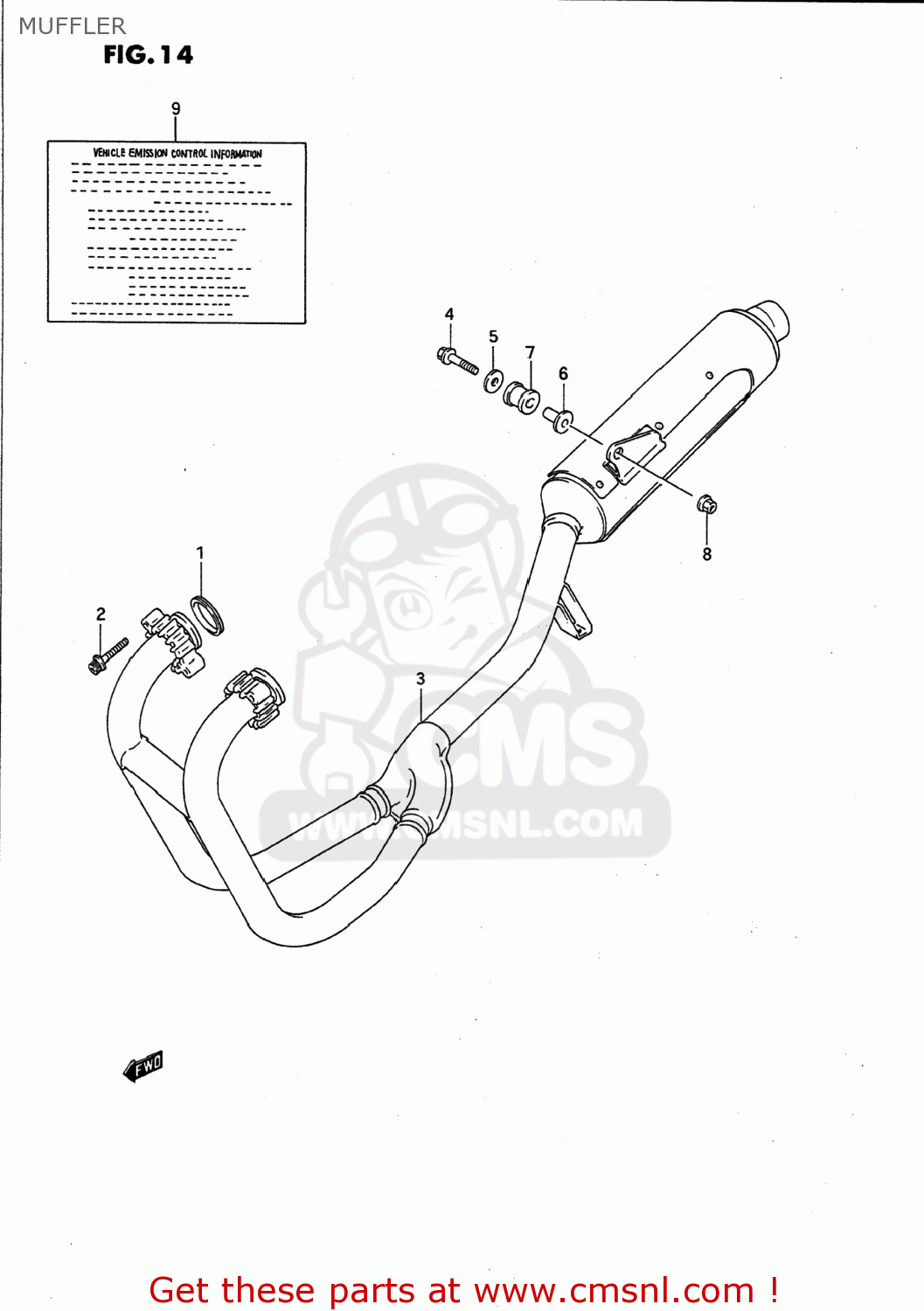

Muffler diagram GS500E 1992 (N) USA (E03)

MUFFLER GS500E 1992 (N) USA (E03)

MUFFLER GS500E 1992 (N) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1418101D00
ref: 1

GASKET,EXHAUST PIPE (NAS)

€ 8.00

2-1

0712008405
ref: 2-1
07120-0840A

BOLT

€ 3.50

2-2

0712008403
ref: 2-2
07120-0840A

BOLT

€ 3.50

3-1

1430101D20H01
ref: 3-1
14301-01DC0-H01

MUFFLER ASSEMBLY

€ 559.00

3-2

1430101DC0H01
ref: 3-2

MUFFLER

€ 559.00

4

0910308256
ref: 4

BOLT(8X40)

€ 6.00

5

0916008002
ref: 5
09160-08135

WASHER (8.5X29X1.6)

€ 2.00

6

0918008152
ref: 6

SPACER(8.6X12X24.2)

€ 6.00

7

0932012048
ref: 7

CUSHION

€ 5.00

8-1

0831616085
ref: 8-1
08316-1008B

NUT 8MM

€ 3.00

8-2

0831610083
ref: 8-2
08316-1008B

NUT

€ 3.00

9-1

1879301D20
ref: 9-1

LABEL (INFORMATION E3)

€ 3.00

9-2

1879401D20
ref: 9-2

LABEL (INFORMATION E33)

€ 3.00
