FRONT MASTER CYLINDER
GS500E 1992 (N) USA (E03)

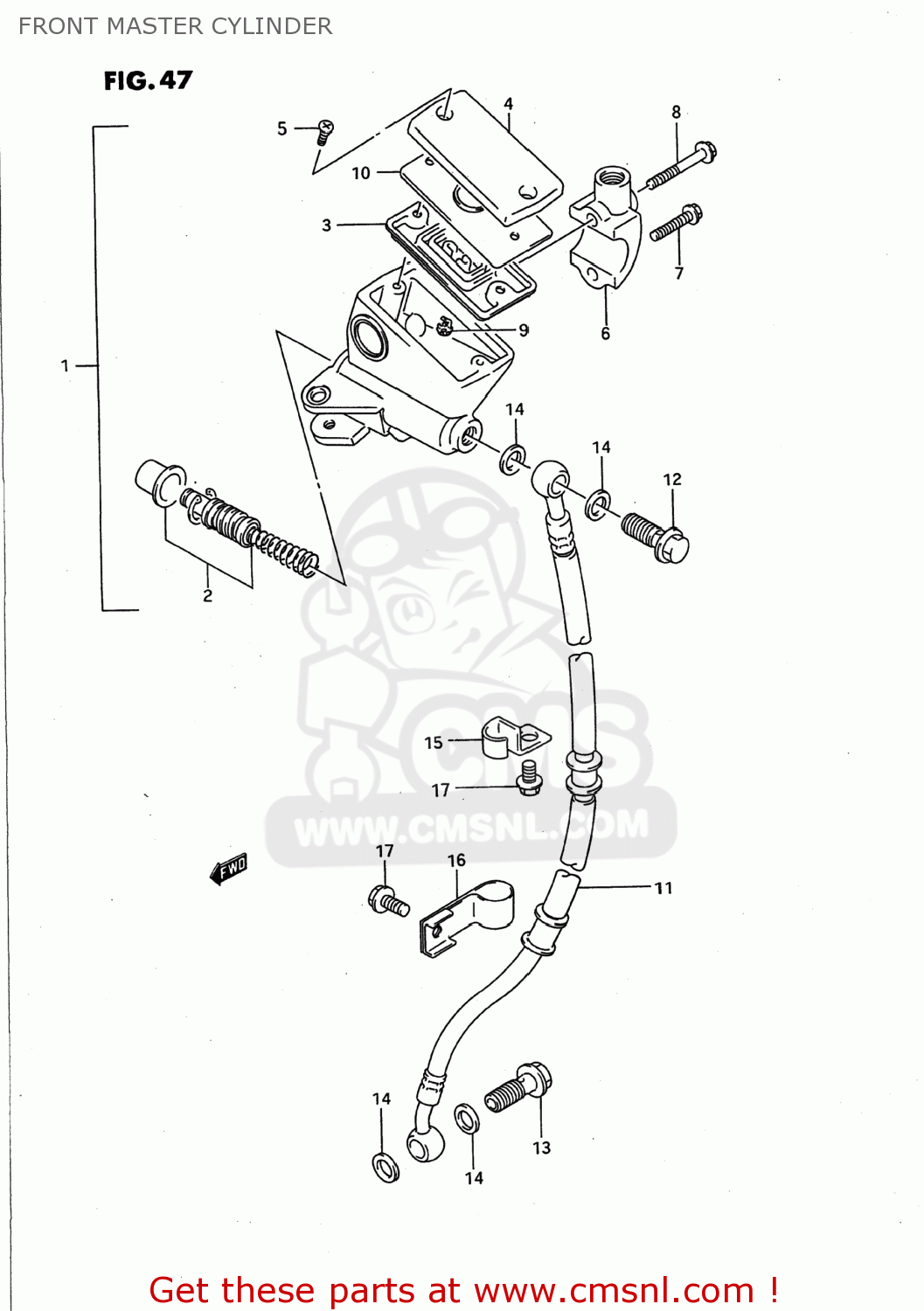

Front master cylinder diagram GS500E 1992 (N) USA (E03)
FRONT MASTER CYLINDER GS500E 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5960038C00
ref: 1-1
CYLINDER ASSY,FR MASTER
€ 202.50
1-2
5960045C10
ref: 1-2
CYLINDER ASSY,FR MASTER
€ 241.00
2
5960036820
ref: 2
59600-04810
CUP SET,MASTER CYLINDER
€ 37.50
3
5966749460
ref: 3
5966749460
4-1
5966934C00
ref: 4-1
59669-41C00
CAP
€ 30.00
4-1
5966934C00
ref: 4-1
59669-41C00
CAP
€ 30.00
4-1
5966934C00
ref: 4-1
59669-41C00
CAP
€ 30.00
4-2
5966941C00
ref: 4-2
CAP
€ 30.00
5
6968949300
ref: 5
SCREW
€ 1.50
6
5967144300
ref: 6
HOLDER
€ 14.50
7
5967519C00
ref: 7
BOLT(6X25)
€ 3.00
8
5967519C10
ref: 8
BOLT(6X38)
€ 4.00
9
5966448B00
ref: 9
PROTECTOR
€ 8.00
10
5966841C00
ref: 10
PLATE,DIAPHRAGM
€ 8.00
11-1
5948001D00
ref: 11-1
HOSE COMP,FRONT BRAKE
€ 65.00
11-2
5948001D20
ref: 11-2
HOSE,FR BRAKE,R
€ 82.00
12-1
0936010017
ref: 12-1
BOLT UNION
€ 6.50
12-2
0936010039
ref: 12-2
09360-10061
BOLT UNION
€ 6.50
13-1
0936010033
ref: 13-1
09360-10062
BOLT 10X1.25X24
€ 5.00
13-2
0936010040
ref: 13-2
09360-10062
BOLT UNION
€ 5.00
14
0916110009
ref: 14
WASHER(10X15X1.5)
€ 2.00
15
5926801D01
ref: 15
CLAMP,FR BRAKE HOSE
€ 8.00
16
5926801D10
ref: 16
CLAMP,FRONT BRAKE NO.2
€ 6.00
17-1
0151706125
ref: 17-1
01550-0612A
BOLT 6X12
€ 2.50
17-2
0155006123
ref: 17-2
01550-0612A
BOLT
€ 2.50
