FRONT WHEEL
GS500E 1992 (N) USA (E03)

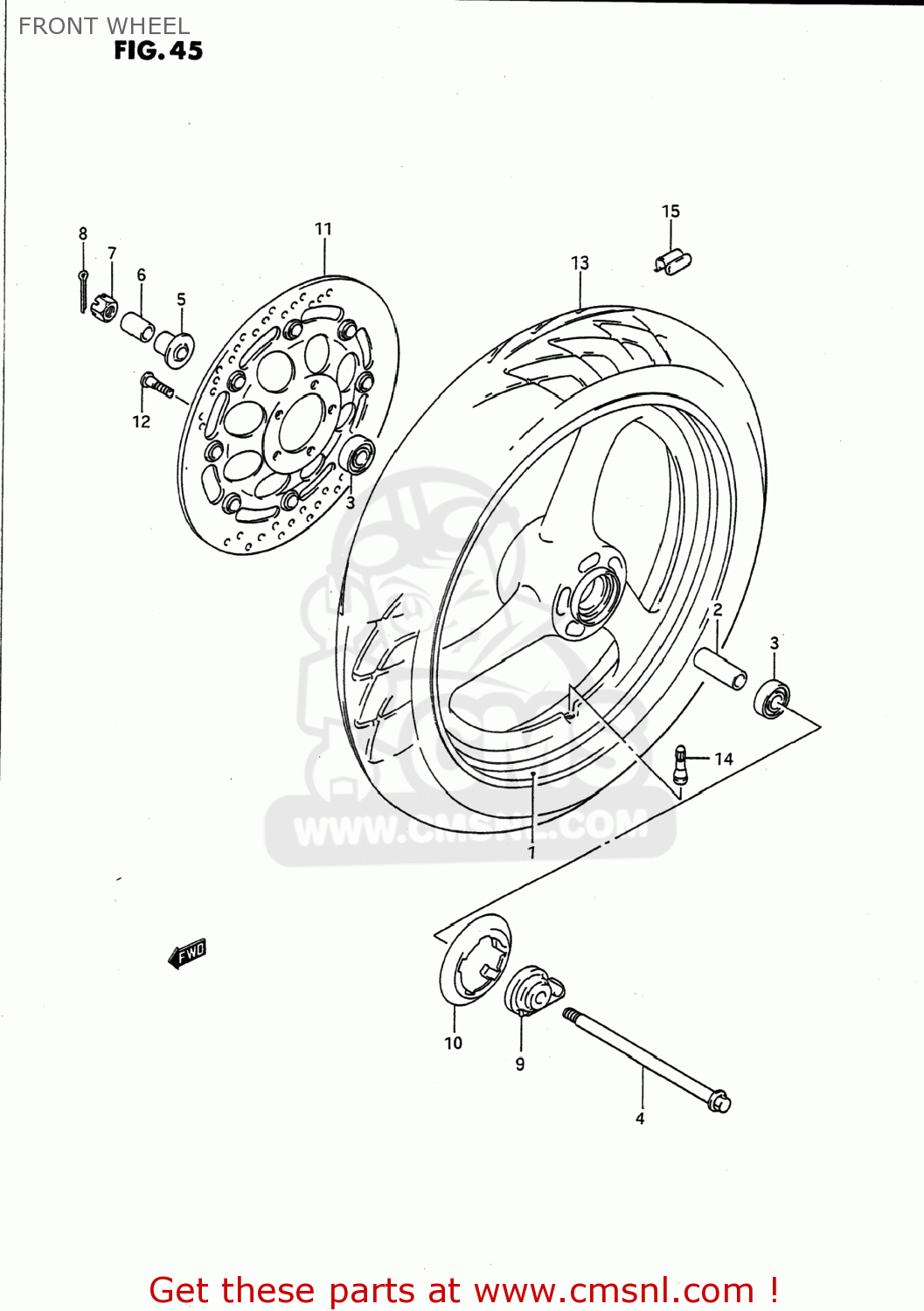

Front wheel diagram GS500E 1992 (N) USA (E03)
FRONT WHEEL GS500E 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5411134C0028W
ref: 1-1
54111-34C01-28W
WHEEL,FRONT (MT3.00X17)
€ 480.50
1-2
5411134C0017U
ref: 1-2
54111-34C01-17U
WHEEL,FRONT (MT3.00X17)
€ 622.00
2
0918015011
ref: 2
SPACER(15.3X21.7X63)
€ 7.50
3
0812363027
ref: 3
BEARING
€ 19.00
4
5471101D00
ref: 4
AXLE,FR
€ 38.50
5
5474033410
ref: 5
SPACER,FR AXLE
€ 15.50
6
5474101D00
ref: 6
SPACER,FR AXLE,R
€ 12.50
7
0915912027
ref: 7
NUT
€ 9.00
8
0411130308
ref: 8
04111-3030A
COTTER PIN
€ 1.50
9
5460001D01
ref: 9
BOX ASSY,SPEEDOMETER GEAR
€ 115.00
10-1
5487138C0030H
ref: 10-1
54871C38C00J291
COVER,FR HUB,L
€ 18.00
10-2
5487138C000SR
ref: 10-2
54871C38C00J291
COVER,FRONT HUB,LEFT
€ 9.50
11-1
5921001D00
ref: 11-1
59210-01D11
DISC,BRAKE
€ 266.50
11-1
5921001D00
ref: 11-1
59210-01D11
DISC,BRAKE
€ 266.50
11-2
5921001D11
ref: 11-2
DISC,FR BRAKE,R
€ 266.50
11-2
5921001D11
ref: 11-2
DISC,FR BRAKE,R
€ 266.50
11-3
5921001D30
ref: 11-3
DISC,FR BRAKE,R
€ 229.00
11-3
5921001D30
ref: 11-3
DISC,FR BRAKE,R
€ 229.00
11-4
5921001D40
ref: 11-4
DISC,FR BRAKE,R
€ 367.50
11-4
5921001D40
ref: 11-4
DISC,FR BRAKE,R
€ 367.50
12
0910608082
ref: 12
09106-08148
BOLT 8X33
€ 6.00
13
5511001D00
ref: 13
TIRE,T/L(110/70-17 54H)
€ 234.00
14-1
4313075150
ref: 14-1
43130-78030
VALVE,TIRE
€ 14.50
14-1
4313075150
ref: 14-1
43130-78030
VALVE,TIRE
€ 14.50
14-2
4313078030
ref: 14-2
VALVE,TIRE TR413 BS
€ 14.50
14-3
4313024A00
ref: 14-3
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
14-3
4313024A00
ref: 14-3
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
14-4
4313024A11
ref: 14-4
43130-24A00
VALVE ASSEMBLY,WHEEL,TR412
€ 7.00
15-1
5541100A00
ref: 15-1
BALANCER,WHEEL (10G)
€ 6.50
15-2
5541200A01
ref: 15-2
55412-17G00
BALANCER,WHEEL (20G)
€ 7.00
15-3
5541300A01
ref: 15-3
BALANCER,WHEEL
€ 4.00
