TURNSIGNAL LAMP
GS500E 1992 (N) USA (E03)

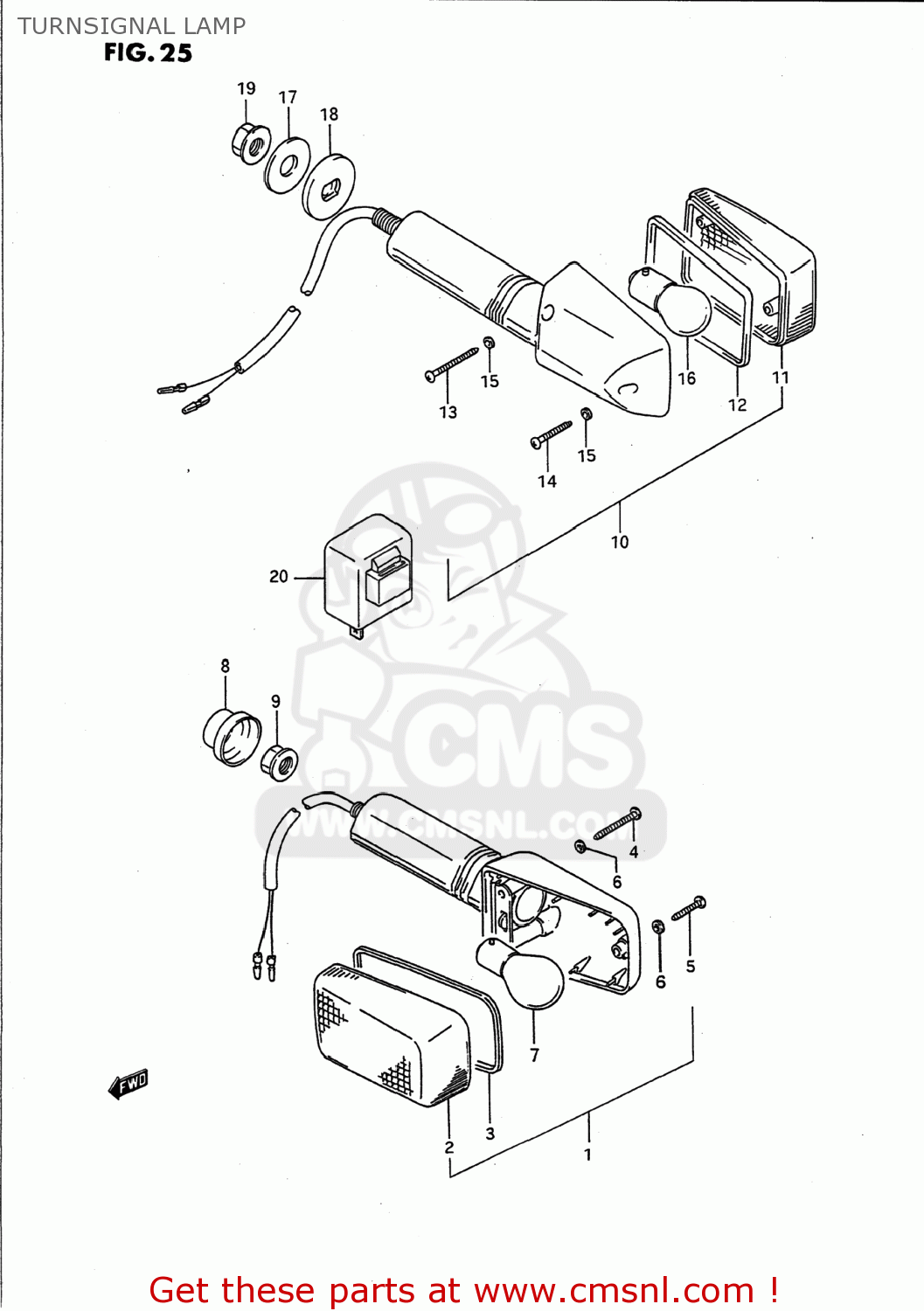

Turnsignal lamp diagram GS500E 1992 (N) USA (E03)
TURNSIGNAL LAMP GS500E 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560101D10
ref: 1
LAMP ASSY,FR TURN SIGNAL
€ 70.50
2
3561217C20
ref: 2
LENS
€ 6.50
3
3561327A00
ref: 3
GASKET (NAS)
€ 3.00
4
3562327A00
ref: 4
SCREW(3X30)
€ 1.50
5
3572540511
ref: 5
SCREW
€ 1.50
6
3562727A02
ref: 6
GASKET (NAS)
€ 1.50
7
0947112045
ref: 7
BULB(12V21W)
€ 5.00
8
3569801D00
ref: 8
CAP,TURNSIGNAL LAMP
€ 2.00
9-1
0831626105
ref: 9-1
08316-2010B
NUT
€ 3.50
9-2
0831620103
ref: 9-2
08316-2010B
NUT
€ 3.50
9-3
0831610103
ref: 9-3
08316-1010B
NUT
€ 2.00
10
3560117C41
ref: 10
LAMP ASSY,FR TURN SIGNAL
€ 112.00
11
3561217C20
ref: 11
LENS
€ 6.50
12
3561327A00
ref: 12
GASKET (NAS)
€ 3.00
13
3562327A00
ref: 13
SCREW(3X30)
€ 1.50
14
3572540511
ref: 14
SCREW
€ 1.50
15
3562727A02
ref: 15
GASKET (NAS)
€ 1.50
16
0947112045
ref: 16
BULB(12V21W)
€ 5.00
17-1
0916010094
ref: 17-1
WASHER(10.5X30X3.2)
€ 3.50
17-2
0916010006
ref: 17-2
09160-10501
WASHER (10.5X30X2.3)
€ 2.50
17-3
0916010501
ref: 17-3
WASHER(10.5X30X2.3)
€ 2.50
18
3569517C00
ref: 18
SPACER,RR TURNSIGNAL
€ 3.00
19-1
0831626105
ref: 19-1
08316-2010B
NUT
€ 3.50
19-2
0831012108
ref: 19-2
08310-00107
NUT
€ 2.50
19-3
0831000103
ref: 19-3
08310-0010A
NUT
€ 2.00
20-1
3861031310
ref: 20-1
38610-31X50
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
20-2
3861045D00
ref: 20-2
38610-45D01
RELAY,TURN SIGNAL
€ 68.50
20-3
3861045D01
ref: 20-3
RELAY ASSY,TURNSIGNAL LAMP
€ 68.50
