REAR MASTER CYLINDER
GS500E 1992 (N) USA (E03)

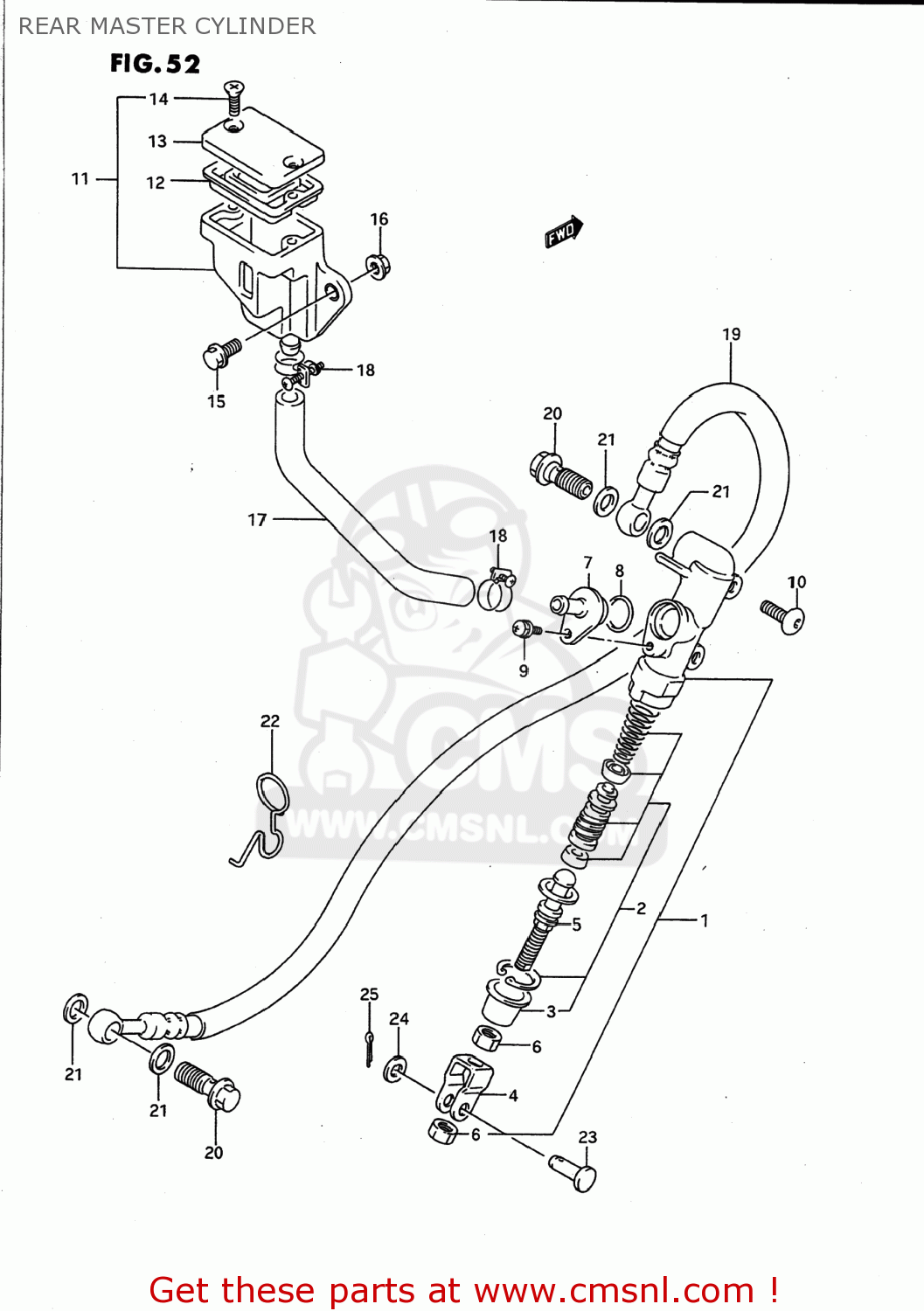

Rear master cylinder diagram GS500E 1992 (N) USA (E03)
REAR MASTER CYLINDER GS500E 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960001D00
ref: 1
CYLINDER ASSY,RR MASTER
€ 174.50
2
6960004820
ref: 2
PISTON/CUP SET
€ 31.00
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6969219A00
ref: 4
YOKE
€ 10.50
5
6967001D00
ref: 5
ROD,PUSH
€ 24.50
6-1
6969324A00
ref: 6-1
69693-05A00
NUT
€ 1.50
6-2
6969305A00
ref: 6-2
NUT
€ 1.50
7
6967200A00
ref: 7
CONNECTOR
€ 5.50
8
6968634200
ref: 8
O RING
€ 3.50
9
0211274123
ref: 9
02112-7412A
SCREW
€ 2.50
10-1
0913906054
ref: 10-1
BOLT(6X21)
€ 2.50
10-2
0913906056
ref: 10-2
SCREW(6X20)
€ 3.00
10-3
0913906057
ref: 10-3
SCREW(6X25)
€ 2.50
11-1
6974001D00
ref: 11-1
69740-01D02
TANK ASSEMBLY,RESERVOIR
€ 58.00
11-2
6974001D01
ref: 11-2
69740-01D02
TANK ASSEMBLY,RESERVOIR
€ 58.00
11-3
6974001D02
ref: 11-3
TANK ASSY,RR RESERVOIR
€ 58.00
12
5966704700
ref: 12
DIAPHRAGM
€ 8.00
13-1
6966924A00
ref: 13-1
69669-24A01
CAP
€ 12.00
13-2
6966924A01
ref: 13-2
CAP
€ 12.00
13-3
5966905D00
ref: 13-3
CAP
€ 13.50
14
6968904A00
ref: 14
SCREW
€ 2.00
15-1
0151706167
ref: 15-1
01550-06167
BOLT 6X16
€ 1.50
15-2
0155006163
ref: 15-2
01550-0616A
BOLT
€ 2.50
16-1
0915906017
ref: 16-1
08319-31067
NUT
€ 2.50
16-2
0831610063
ref: 16-2
08316-1006B
NUT
€ 2.50
17
6973101D01
ref: 17
69731-01D02
HOSE,RESERVOIR TANK
€ 19.50
18-1
0940016302
ref: 18-1
09400-16304
CLAMP
€ 4.50
18-2
0940113413
ref: 18-2
09401-13417
CLIP
€ 2.50
19-1
6948001D00
ref: 19-1
69480-01D10
HOSE,REAR BRAKE
€ 99.00
19-2
6948001D10
ref: 19-2
HOSE,RR BRAKE
€ 99.00
20-1
0936010017
ref: 20-1
BOLT UNION
€ 6.50
20-2
0936010039
ref: 20-2
09360-10061
BOLT UNION
€ 6.50
21
0916110009
ref: 21
WASHER(10X15X1.5)
€ 2.00
22
6924301D00
ref: 22
GUIDE,RR BRAKE HOSE
€ 4.00
23
0920006037
ref: 23
09200-06068
PIN
€ 5.00
24-1
0832221067
ref: 24-1
08322-01067
WASHER
€ 2.00
24-2
0832201063
ref: 24-2
08322-0106B
WASHER
€ 2.00
25
0411120158
ref: 25
04111-2015A
PIN
€ 1.50
