CYLINDER

GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)

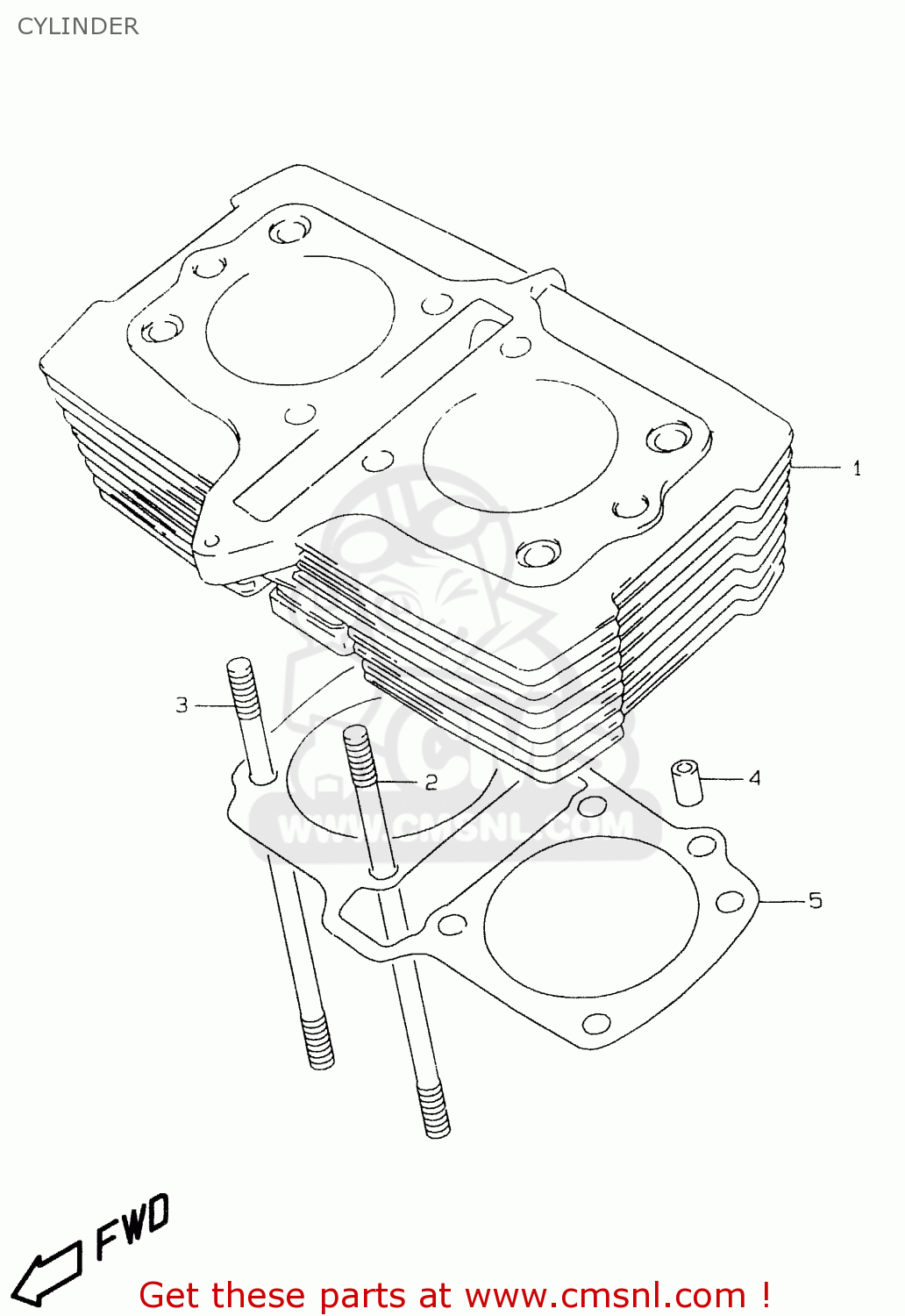

Cylinder diagram GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)

CYLINDER GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)

CYLINDER GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)

prices are in EUR

ref

part #

description

quantity

1

1121001D200F0
ref: 1

CYLINDER

€ 791.50

1

1121001D300F0
ref: 1
E18,E39

CYLINDER

€ 860.50

2

0910810112
ref: 2

BOLT,STUD

€ 9.00

3

0910810041
ref: 3

BOLT,STUD

€ 9.00

4

0421111189
ref: 4

PIN

€ 2.00

5

1124101D00
ref: 5

GASKET,CYLINDER (NAS)

€ 9.50
