STEERING STEM

GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)

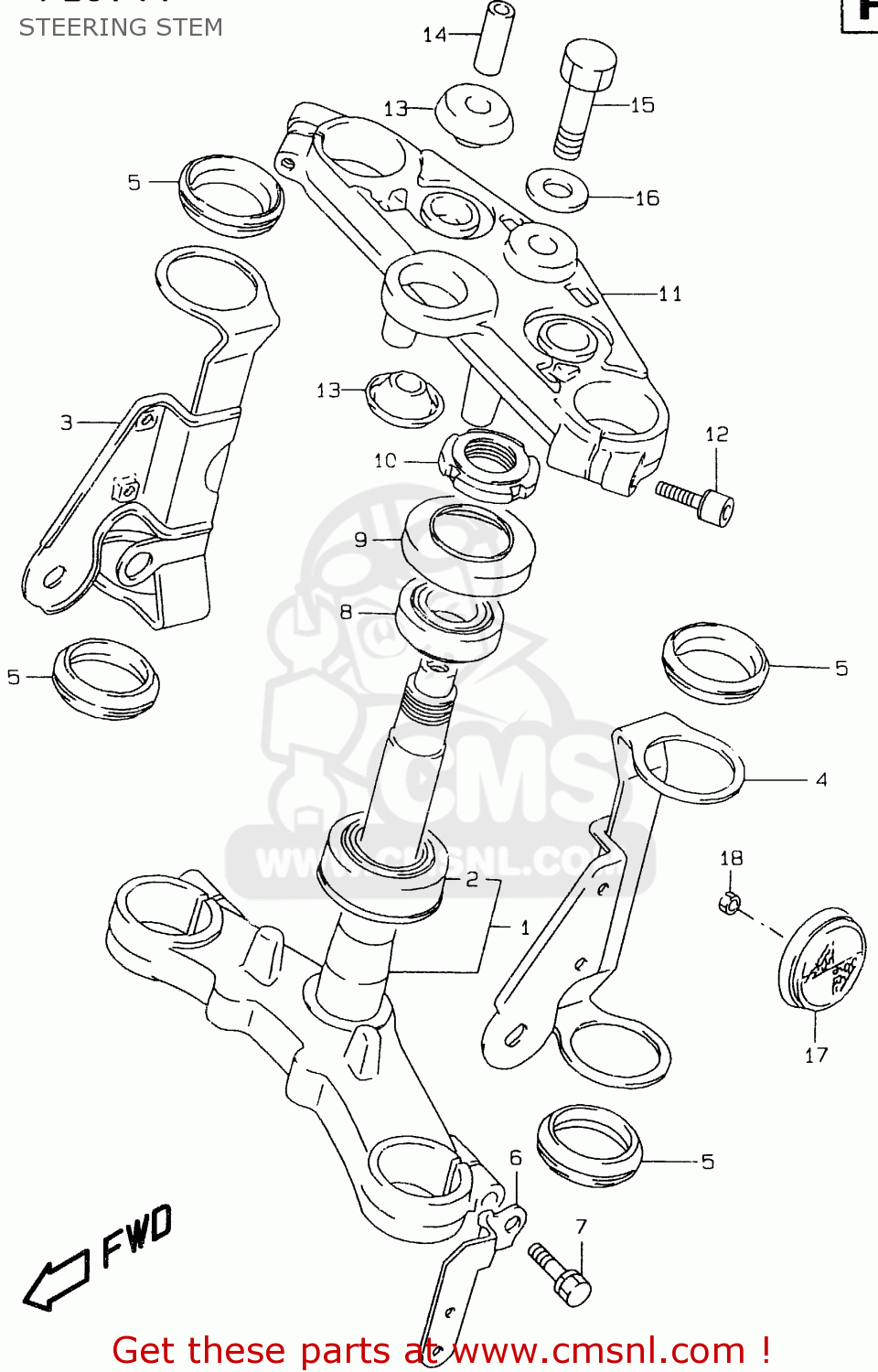

Steering stem diagram GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)

STEERING STEM GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)
STEERING STEM GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)
STEERING STEM GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)
prices are in EUR
ref
part #
description
quantity
1
5141001D91
ref: 1
STEM,STEERING
5141001D91
€ 288.00
1
5141001D80
ref: 1
MODEL X P37
STEM,STEERING
€ 0.00
2
0926530009
ref: 2
BEARING(30X55X17)
0926530009
€ 49.50
3
5153001D01
ref: 3
BRACKET,HEADLAMP,R
5153001D01
€ 34.00
4
5154001D01
ref: 4
BRACKET,HEADLAMP,L
5154001D01
€ 26.00
5
5155334300
ref: 5
CUSHION,HEADLAMP BRACKET
5155334300
€ 4.50
6
3595601D10
ref: 6
E39
BRACKET,FR SIDE RR,R
3595601D10
€ 4.50
6
3595701D10
ref: 6
E39
BRACKET,FR SIDE RR,L
3595701D10
€ 8.50
7
5135201D00
ref: 7
BOLT,STEERING STEM
5135201D00
€ 4.00
8
0926525019
ref: 8
BEARING(25X47X15)
0926525019
€ 48.50
9
5164349002
ref: 9
SEAL,STEERING UPR DUST
5164349002
€ 7.50
10
5163128000
ref: 10
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
11
5131101D00
ref: 11
HEAD,STEERING STEM
5131101D00
€ 300.50
12
0713008303
ref: 12
BOLT
0713008303
€ 3.00
12
5132801D80
ref: 12
MODEL X P37
BOLT,STEERING(07130-08303)
€ 0.00
13
5624001D00
ref: 13
CUSHION,UPR BRACKET
5624001D00
€ 23.00
14
5624301D00
ref: 14
SPACER,STEERING STEM HEAD
5624301D00
€ 6.00
15
5135305C00
ref: 15
BOLT
5135305C00
€ 10.50
16
5135622012
ref: 16
WASHER,STEM HEAD(10.5X30X3.2)
5135622012
€ 4.00
17
3595014A00
ref: 17
E39
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
18
0831620053
ref: 18
E39
NUT
0831620053
€ 2.00
