WIRING HARNESS

GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)

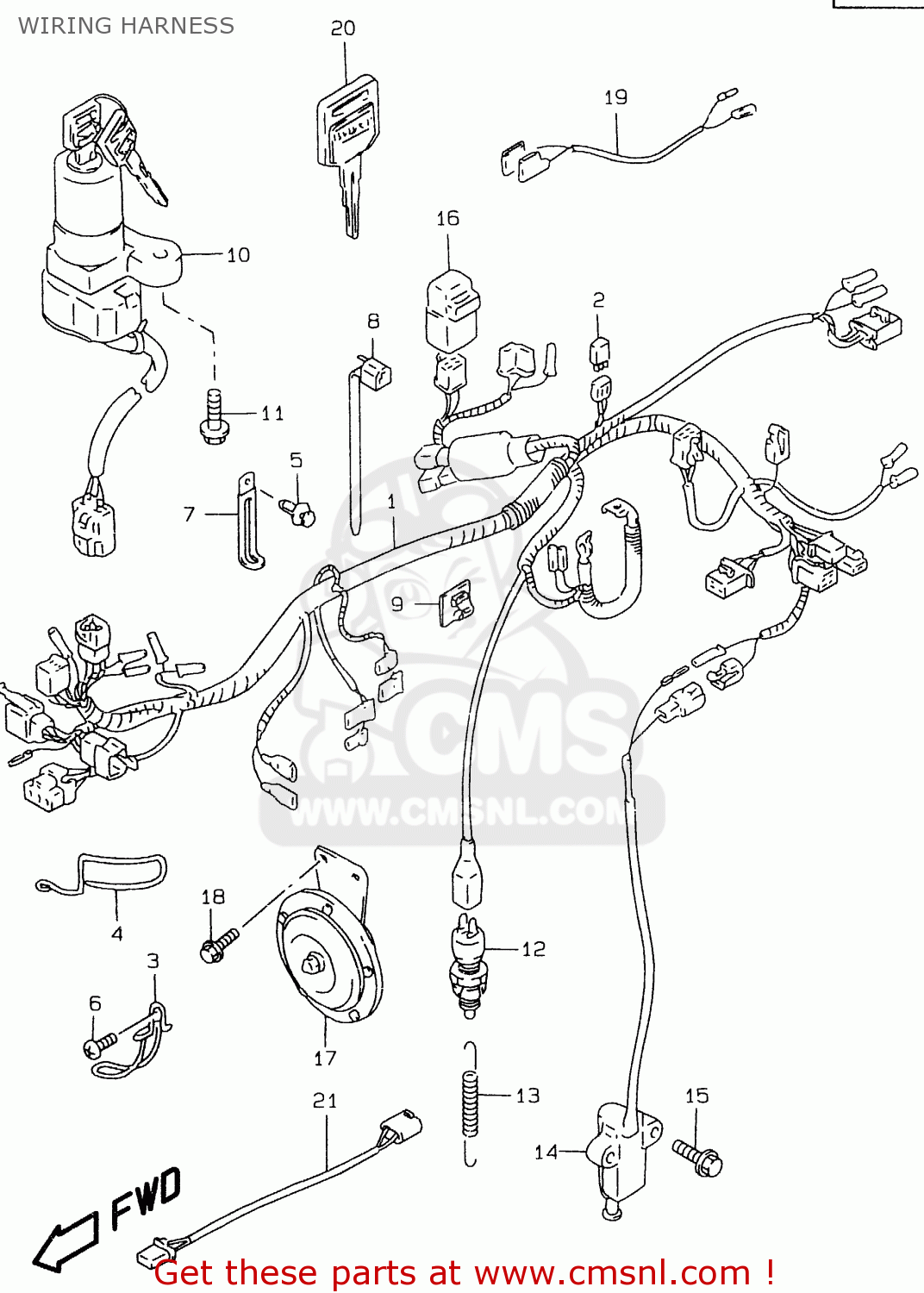

Wiring harness diagram GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)

WIRING HARNESS GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)
WIRING HARNESS GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)
WIRING HARNESS GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)
prices are in EUR
ref
part #
description
quantity
1
3661001D30
ref: 1
MODEL V
HARNESS,WIRING
€ 373.00
1
3661001D31
ref: 1
MODEL W/X
HARNESS,WIRING
€ 373.00
1
3661001D40
ref: 1
E4
HARNESS,WIRING
€ 0.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
3
3661101D00
ref: 3
PROTECTOR
3661101D00
€ 11.50
4
3661101D10
ref: 4
PROTECTOR
3661101D10
€ 11.50
5
09409073055PK
ref: 5
CLIP(BLACK)
09409073055PK
€ 1.50
6
0214206123
ref: 6
SCREW 6X12
0214206123
€ 2.00
7
0940406431
ref: 7
CLAMP(L:65)
0940406431
€ 2.50
7
0940406432
ref: 7
CLAMP(L:65)
0940406432
€ 2.50
7
0940406434
ref: 7
CLAMP(L:80 T:1.0)
0940406434
€ 3.00
7
0940408418
ref: 7
CLAMP(L:65)
€ 3.50
8
0940714403
ref: 8
CLAMP(L:125)
0940714403
€ 2.50
8
0940718403
ref: 8
CLAMP L:165
€ 2.50
9
0940306310
ref: 9
CLAMP
0940306310
€ 3.00
10
3710026D02
ref: 10
LOCK ASSEMBLY,STEERING
3710026D02
€ 134.00
10
3710026D11
ref: 10
E24
LOCK ASSY,STEERING
€ 103.50
11
0913906026
ref: 11
SCREW(6X18)
0913906026
€ 2.50
12
3774024A00
ref: 12
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
13
0944306042
ref: 13
SPRING
0944306042
€ 3.00
14
3784001D01
ref: 14
SWITCH ASSY,SIDE STAND
3784001D01
€ 75.50
14
3784001D01
ref: 14
MODEL V E4
SWITCH ASSY,SIDE STAND
3784001D01
€ 75.50
14
3784001D10
ref: 14
MODEL W/X E4
SWITCH ASSY,SIDE STAND
€ 100.50
15
0155006303
ref: 15
BOLT
0155006303
€ 2.50
16
3874024X50
ref: 16
RELAY ASSY
3874024X50
€ 37.50
17
3850001D10
ref: 17
HORN ASSY
3850001D10
€ 46.50
18
0155006123
ref: 18
BOLT
0155006123
€ 2.50
19
3685219D00
ref: 19
WIRE,CLUTCH LEAD
3685219D00
€ 12.00
20
3714626D10
ref: 20
OPT
KEY,BLANK
3714626D10
€ 41.50
21
3685201D40
ref: 21
E4
WIRE,AIR SOLENOID
€ 10.00
