STAND - REAR BRAKE

GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)

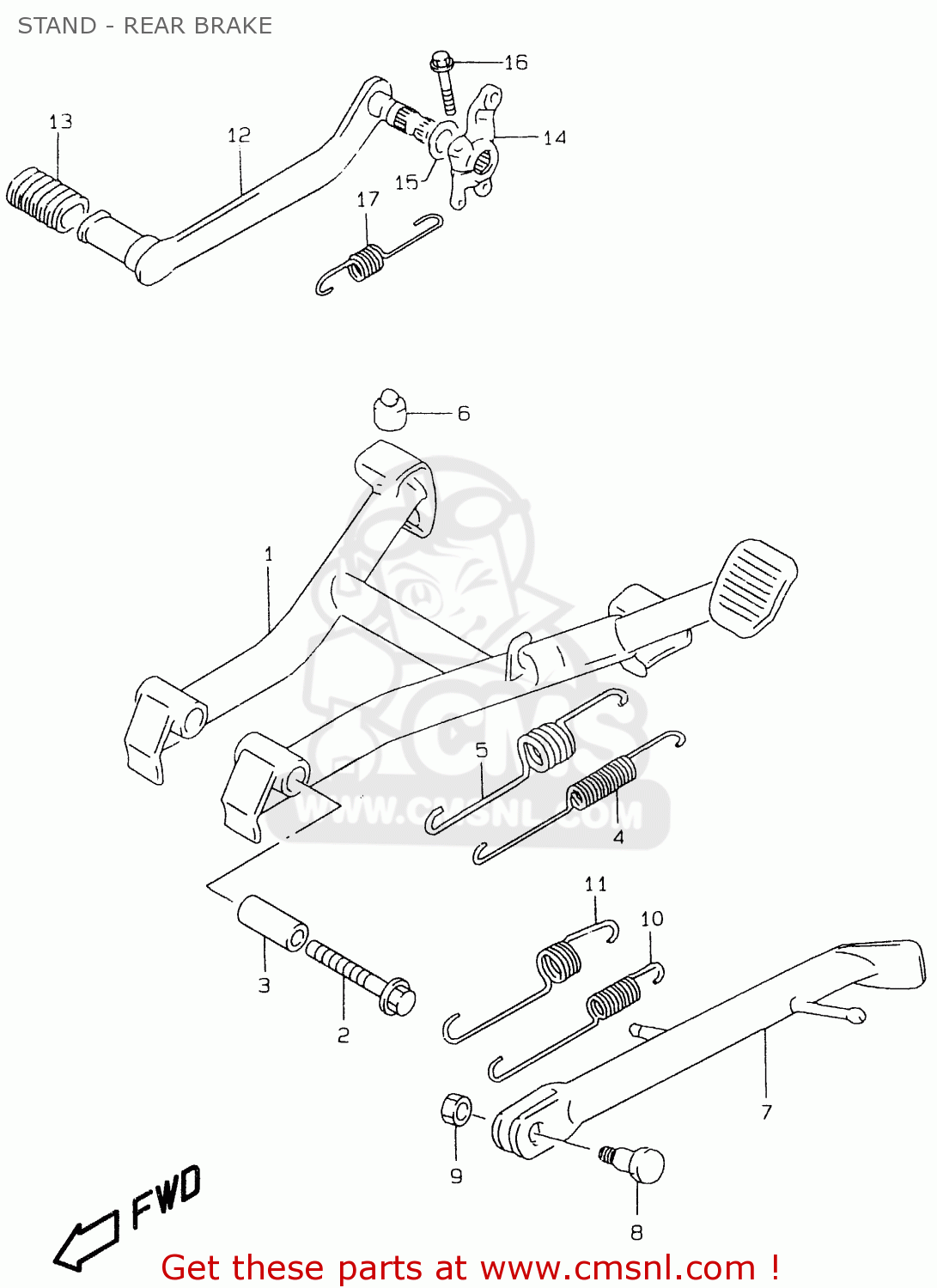

Stand - rear brake diagram GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)

prices are in EUR

ref

part #

description

quantity

4210001D00
ref: 1

STAND,CTR

€ 177.50

0158010603
ref: 2

BOLT

€ 3.50

0918010040
ref: 3

SPACER(10X16X38.8)

€ 3.00

0944314059
ref: 4

SPRING

€ 9.50

0944322013
ref: 5

SPRING OUTER

€ 7.00

0932110017
ref: 6

CUSHION

€ 5.50

4231001D10019
ref: 7

STAND,PROP(BLACK)

€ 138.00

0911110027
ref: 8

BOLT(10X34)

€ 3.50

0915910027
ref: 9
MODEL V/W

NUT

€ 3.00

0831921103
ref: 9
MODEL X

NUT

€ 2.00

0944315046
ref: 10

SPRING

€ 7.50

0944322017
ref: 11

SPRING

€ 7.00

4311001D12
ref: 12

PEDAL,BRAKE

€ 37.00

2565249300
ref: 13

RUBBER,PEDAL

€ 5.50

4312101D00
ref: 14

ARM,BRAKE ROD

€ 26.00

4321204A00
ref: 15

WASHER,BRAKE PEDAL

€ 2.00

0155006253
ref: 16

BOLT

€ 2.50

0944313028
ref: 17

SPRING

€ 20.50
