CYLINDER HEAD

GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)

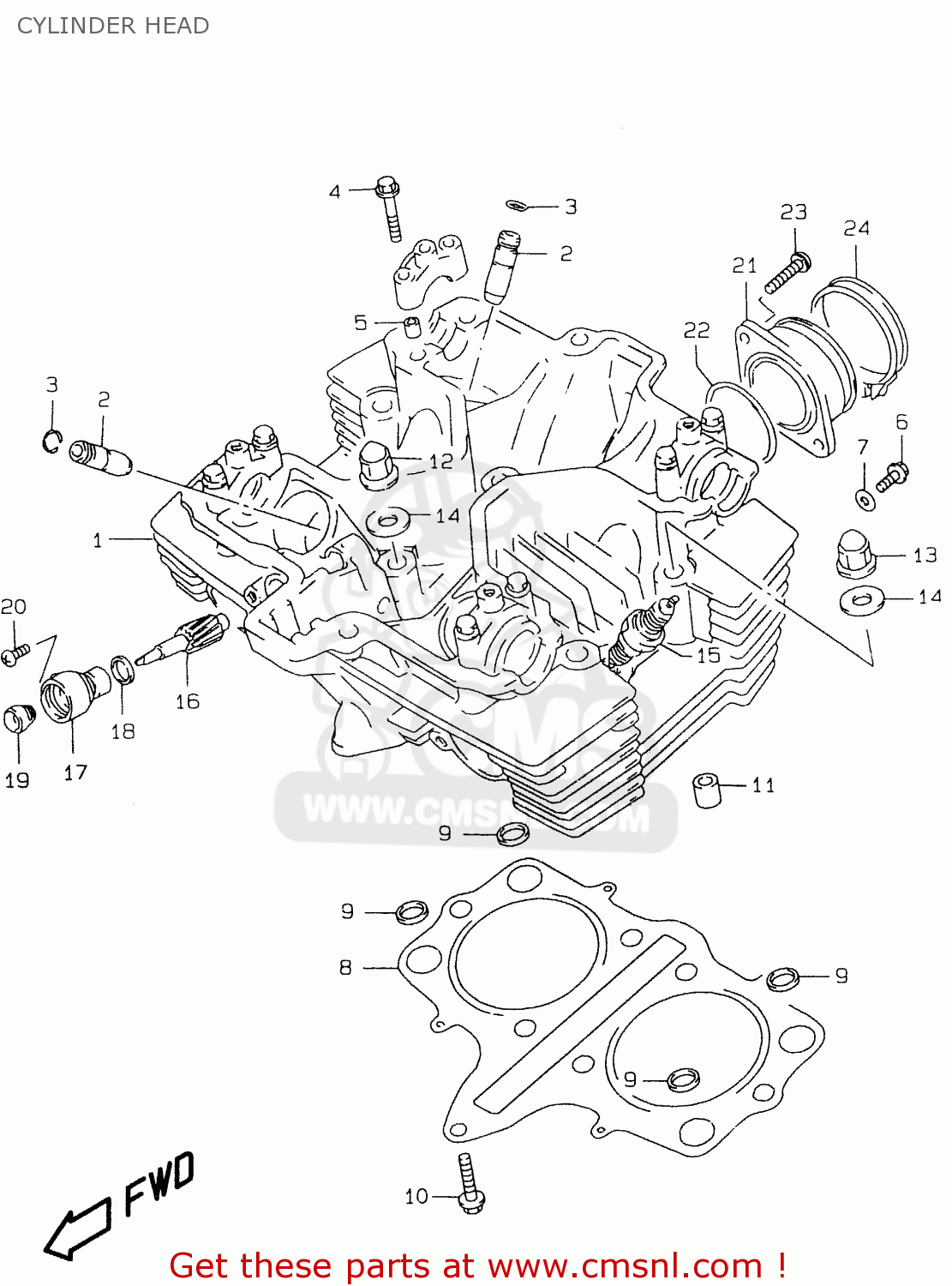

Cylinder head diagram GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)

CYLINDER HEAD GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)
CYLINDER HEAD GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)
CYLINDER HEAD GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)
prices are in EUR
ref
part #
description
quantity
1
1110001D20
ref: 1
HEAD ASSY,CYLINDER
€ 1,090.50
1
1110001D30
ref: 1
E18,E39
HEAD ASSY, CYLINDER
€ 0.00
2
1111545740
ref: 2
GUIDE,INTAKE VALVE
1111545740
€ 25.50
3
0938110003
ref: 3
RING,SNAP
0938110003
€ 2.50
4
0910306071
ref: 4
BOLT(6X39)
0910306071
€ 2.50
5
0920608001
ref: 5
PIN(6.2X8X11)
0920608001
€ 2.00
6
0712006123
ref: 6
BOLT
€ 3.50
7
0916806023
ref: 7
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
8
1114101D10
ref: 8
GASKET,CYLINDER HEAD (NAS)
1114101D10
€ 35.00
9
1114306B00
ref: 9
O RING,HEAD GASKET
1114306B00
€ 8.00
10
0155006303
ref: 10
BOLT
0155006303
€ 2.50
11
0421111189
ref: 11
PIN
0421111189
€ 2.00
12
0915910069
ref: 12
NUT
0915910069
€ 5.00
13
0915910026
ref: 13
NUT
0915910026
€ 6.00
14
0916810031
ref: 14
GASKET(10.2X20X2).3 (NAS)
0916810031
€ 2.00
15
0948200334
ref: 15
PLUG,SPARK(DPR8EA-9)
€ 4.00
15
0948200335111
ref: 15
SPARK PLUG X24EPR-U9
€ 4.00
16
2643145002
ref: 16
GEAR,TACHOMETER DRIVEN
2643145002
€ 43.00
17
2644149000
ref: 17
SLEEVE,TACHOMETER DRIVE GEAR
2644149000
€ 18.00
18
2645145000A
ref: 18
SEAL,TACHOMETER DRIVEN
2645145000A
€ 4.50
19
0928905002
ref: 19
SEAL,OIL(5X12X8)
0928905002
€ 11.00
20
0912805101
ref: 20
SCREW(5X12)
0912805101
€ 1.50
21
1311001D01
ref: 21
~GM51A-140407, ~GM51
PIPE,INTAKE
€ 30.50
21
1311001D02
ref: 21
GM51A-140408~, GM51B
PIPE,INTAKE
1311001D02
€ 30.50
21
1311001D40
ref: 21
MODEL W/X E4
PIPE, INTAKE
€ 43.00
22
0928040003
ref: 22
MODEL V
O-RING (D:2.4 ID:39.7)
0928040003
€ 3.50
22
0928040010
ref: 22
MODEL W/X
O RING(D:2.4,ID:39.7)
0928040010
€ 3.50
23
0211216163
ref: 23
SCREW
€ 2.00
24
0940254208
ref: 24
CLAMP
0940254208
€ 5.00
