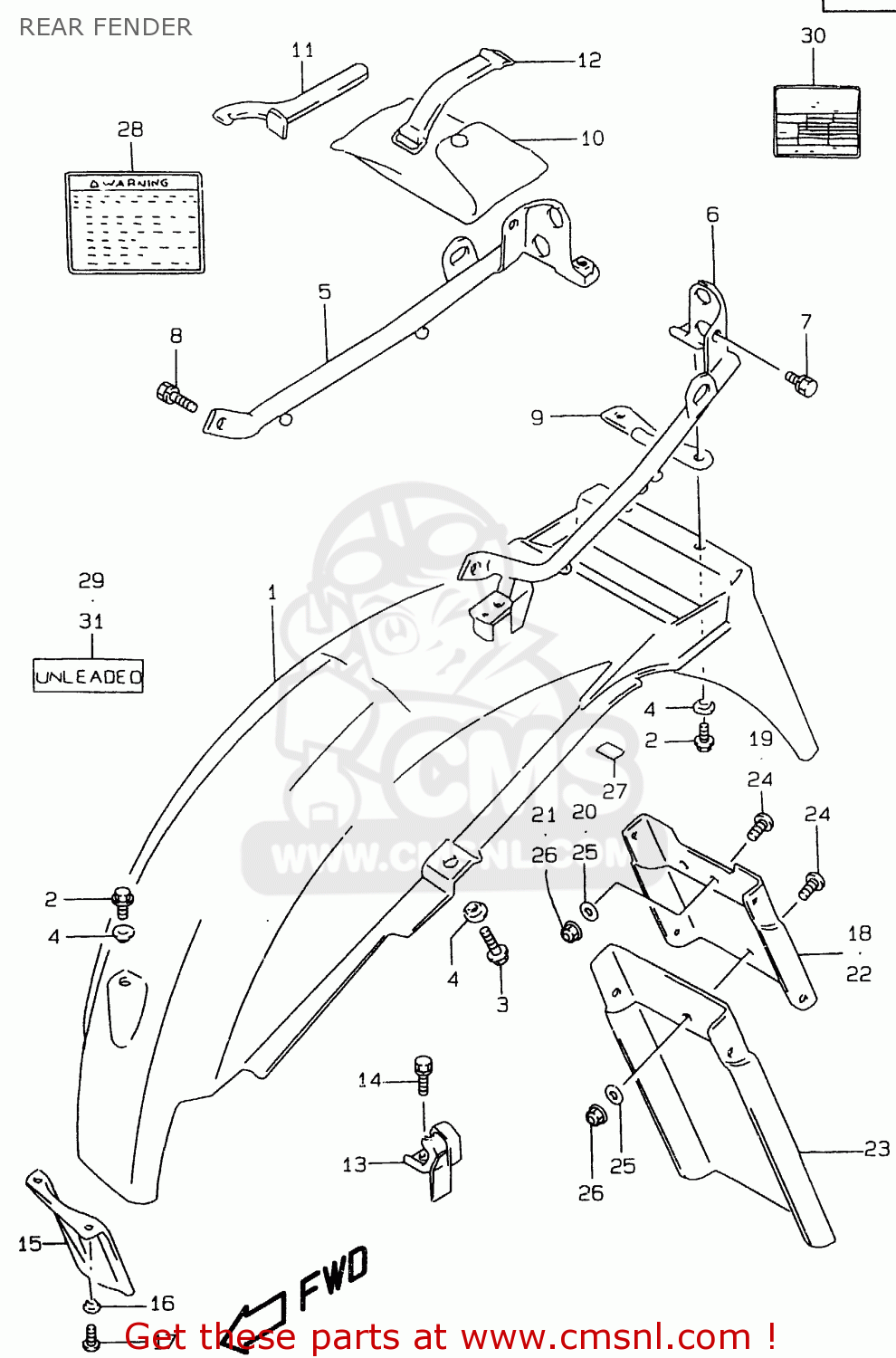

REAR FENDER

ref

part #

description

quantity

1

6311101D30
ref: 1

BODY,REAR FENDER

€ 20.50

1

6311101D20
ref: 1
E18,E22,E25

BODY,RR FENDER

€ 108.00

1

6311101D40
ref: 1
E39

BODY, REAR FENDER

€ 87.00

2

0155006123
ref: 2
MODEL V

BOLT

€ 2.50

2

0911106066
ref: 2
MODEL W/X

BOLT(6X16)

€ 2.50

3

0155006163
ref: 3

BOLT

€ 2.50

4

0916906037
ref: 4

WASHER

€ 6.50

5

6321001D10
ref: 5

BRACE,RR FENDER,R

€ 73.50

6

6322001D10
ref: 6

BRACE,RR FENDER,L

€ 73.50

7

0155008123
ref: 7

BOLT

€ 3.50

8

0155008203
ref: 8

BOLT

€ 3.00

9

4742501D00
ref: 9

PLATE,TOOL HOLDER

€ 4.50

10

0980021017
ref: 10

TOOL ASSY

€ 59.00

11

0982200005
ref: 11

CLAMP

€ 22.00

12

0946200046
ref: 12

BAND

€ 4.50

13

9572001D00
ref: 13

HOLDER,HELMET

€ 7.00

14

0157006203
ref: 14
MODEL V/W

BOLT

€ 2.50

14

0155006163
ref: 14
MODEL X

BOLT

€ 2.50

15

6341142A00
ref: 15

GUARD,RR UNIT MUD

€ 3.50

16

0916906010
ref: 16

WASHER

€ 3.00

17

0214206163
ref: 17

SCREW

€ 2.50

18

6331112C00
ref: 18
E25

EXTENSION,RR FENDER

€ 19.50

19

0214206163
ref: 19
E25

SCREW

€ 2.50

20

0916006019
ref: 20
E25

WASHER(6.5X16X1.2)

€ 1.50

21

0831921068
ref: 21
E25

NUT 6MM

€ 2.00

22

6331101D40
ref: 22
E18,E22,E39

EXTENSION,RR FENDER

€ 18.00

23

6333148B12
ref: 23
E18,E22,E39

MUDGUARD,RR FENDER

€ 31.00

24

0214206163
ref: 24
E18,E22,E39

SCREW

€ 2.50

25

0916006019
ref: 25
E18,E22,E39

WASHER(6.5X16X1.2)

€ 1.50

26

0831921068
ref: 26
E18,E22,E39

NUT 6MM

€ 2.00

27

6311506C00
ref: 27

TAPE,RR FENDER

€ 7.00

28

6831933E00
ref: 28

LABEL (WARNING SAFETY),E

€ 8.00

28

6831933E20
ref: 28
E18,E22,E34,E39

LABEL,WARNING

€ 8.00

28

6831933E30
ref: 28
E4,E18,E34

LABEL,WARNING

€ 8.50

28

6831933E40
ref: 28
E18,E34

LABEL,WARNING

€ 8.00

28

6831933E70
ref: 28
E25,E34

LABEL,WARNING

€ 5.50

28

6831933E50
ref: 28
E34

LABEL,WARNING

€ 8.00

28

6831933E80
ref: 28
P37

LABEL, WARNING SAFETY (DOTUGUESE)

€ 4.00

29

6862317D00
ref: 29
E2

LABEL,CAUTION

€ 4.00

30

6833201D00
ref: 30
MODEL V

LABEL,TIRE AIR PRESSURE

€ 4.50

30

6833201D10
ref: 30
MODEL V E4

LABEL, TIRE AIR PRESSURE

€ 0.00

30

6833201D30
ref: 30
MODEL W

LABEL, TIRE INFORMATION

€ 7.00

31

8693273060
ref: 31
E24

LABEL,FUEL CAUTION

€ 4.00

32

9901101D5828B
ref: 32
MODEL V

MANUAL, OWNER'S

€ 19.00

32

9901101D58042
ref: 32
MODEL V, E18,E22,E25

O.M. GS500E V

€ 21.00

32

9901101D5928B
ref: 32
MODEL W

MANUAL, OWNER'S

€ 15.00

32

9901101D59042
ref: 32
MODEL W, E18,E22,E25

MANUAL, OWNER'S

€ 21.00

32

9901101D6028B
ref: 32
MODEL X

MANUAL, OWNER'S

€ 0.00

32

9901101D60042
ref: 32
MODEL X, E18,E22,E25

MANUAL, OWNER'S

€ 6.00

32

9901101D60057
ref: 32
MODEL X P37, DRAWING

MANUAL, OWNER'S

€ 0.00
