STARTING MOTOR

GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)

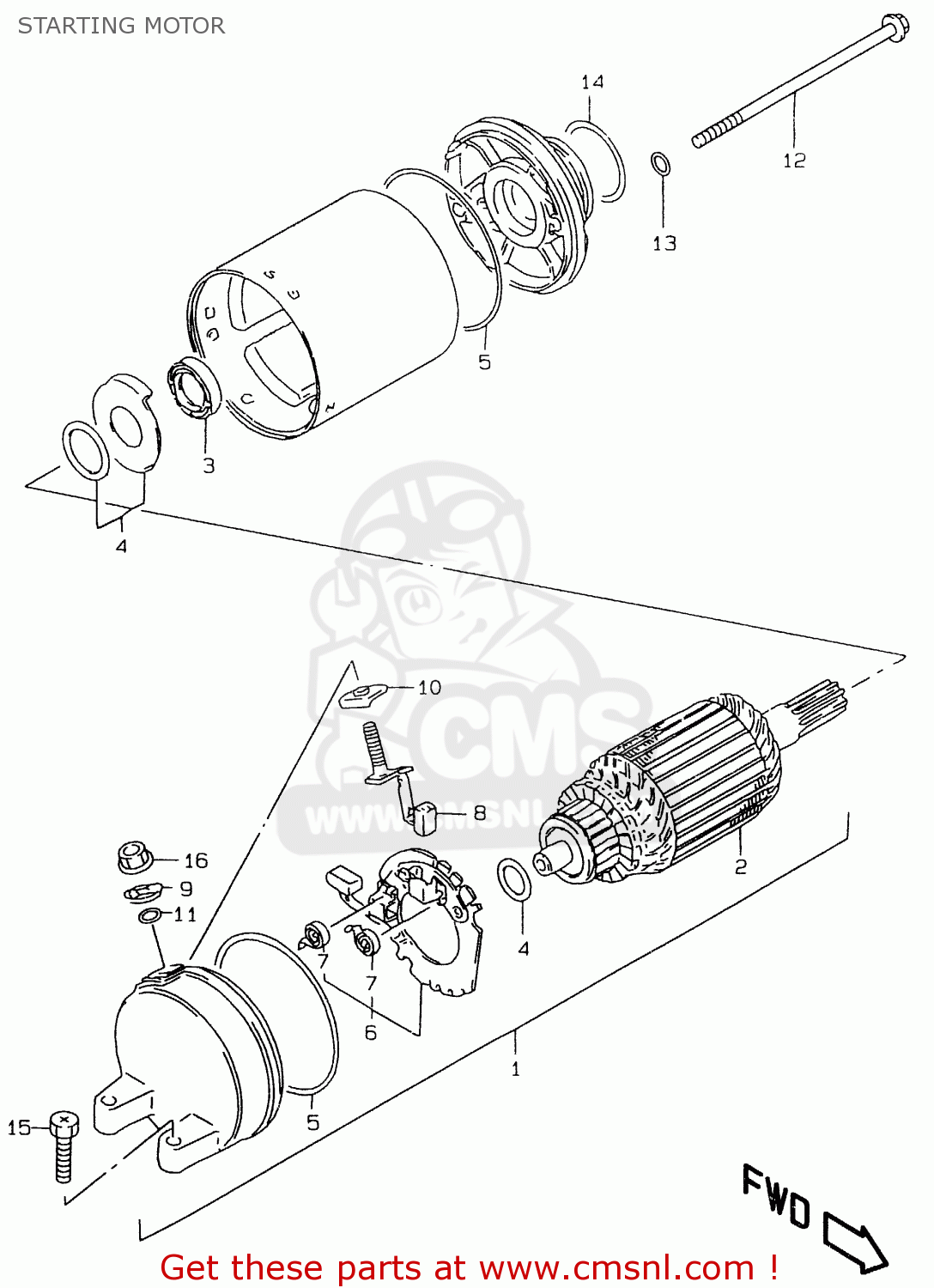

Starting motor diagram GS500E 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E37)

prices are in EUR

ref

part #

description

quantity

3110020C00
ref: 1

MOTOR ASSEMBLY,STARTING

€ 530.00

3131027A01H17
ref: 2

ARMATURE

€ 222.00

3115343400
ref: 3

SEAL,OIL

€ 19.50

3117043400
ref: 4

SHIM SET,STARTING MOTOR

€ 3.50

3126444110
ref: 5

O RING

€ 8.00

3113227A01
ref: 6

HOLDER,BRUSH

€ 47.00

3113565010
ref: 7

SPRING

€ 3.00

3113038300
ref: 8

BRUSH SUB ASSY,STARTING MOTOR

€ 12.50

3117238300
ref: 9

BUSHING

€ 4.00

3117138300
ref: 10

BUSH,B

€ 5.50

3114338300
ref: 11

O RING

€ 3.50

3128188C00
ref: 12

BOLT

€ 8.50

3115638300
ref: 13

O RING

€ 3.00

0928024003
ref: 14

O RING(D:3,ID:24.5)

€ 2.00

0912806024
ref: 15

SCREW (6X25)

€ 2.50

0836135068
ref: 16

NUT

€ 2.00
