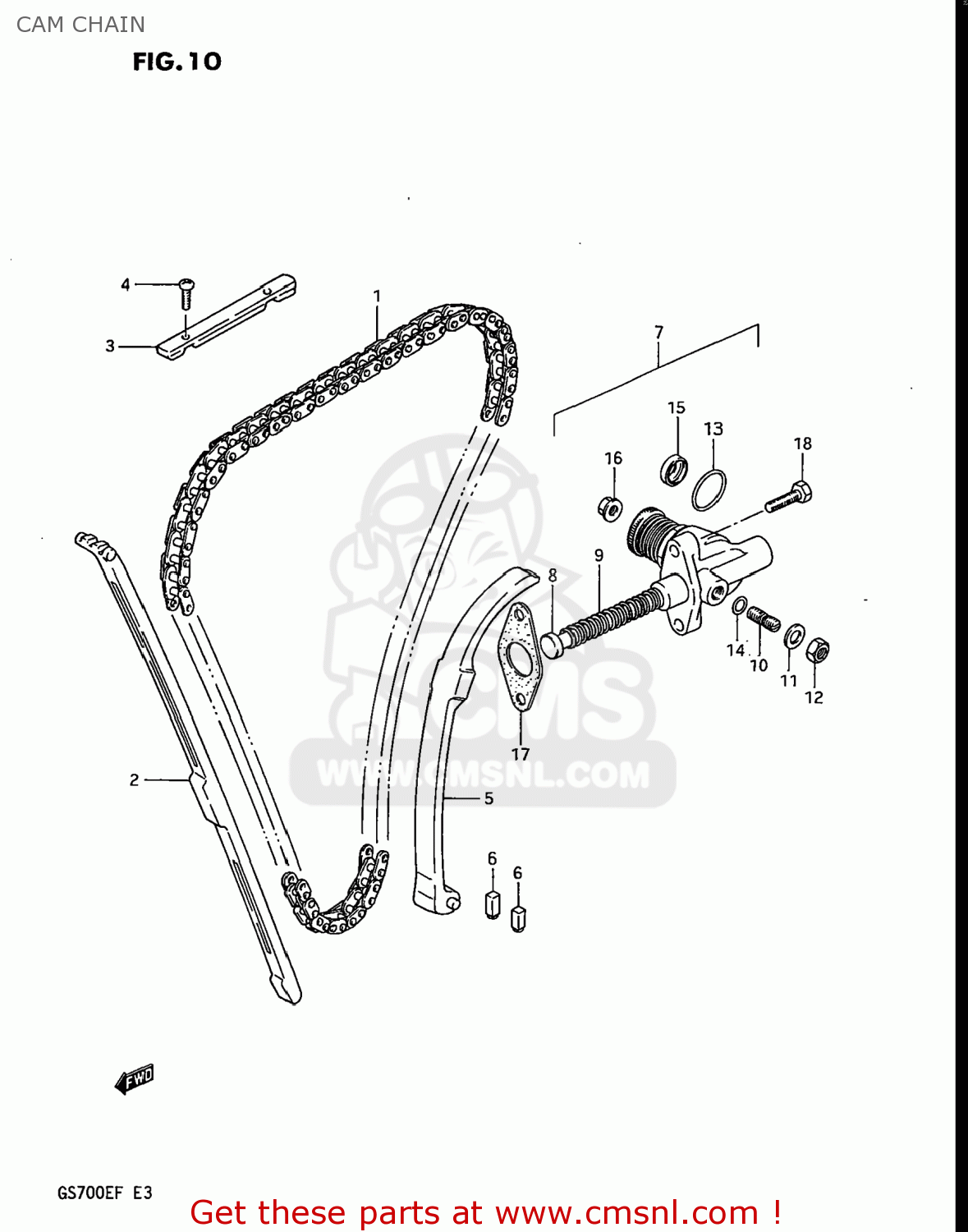

CAM CHAIN

ref

part #

description

quantity

1

1276045040
ref: 1

CHAIN,CAMSHAFT DRIVE(120L)

€ 112.00

2

1277131301
ref: 2

GUIDE,CAM CHAIN NO.1

€ 30.50

3

1278247040
ref: 3

GUIDE,CAM CHAIN NO.3

€ 89.50

4

0211205128
ref: 4
02112-05127

SCREW

€ 2.50

5

1281031301
ref: 5

TENSIONER

€ 49.00

6

1281444101
ref: 6

CUSHION,CAM CHAIN TENSIONER

€ 8.50

7

1283033302
ref: 7

ADJUSTER ASSY,TENSIONER

€ 116.50

8

1283333201
ref: 8

ROD,PUSH

€ 17.00

9

0944012029
ref: 9

SPRING

€ 3.50

10

1283845010
ref: 10
12838-45001

SCREW,TENSIONER ADJUST

€ 6.00

11

0832211084
ref: 11
08322-0108A

WASHER

€ 1.50

12

0831011085
ref: 12
08310-0008A

NUT

€ 1.50

13

0928021013
ref: 13

O RING(D:2.4,ID:20.8)

€ 4.50

14

0928006005
ref: 14

O RING(D:1.9,ID:5.7)

€ 2.50

15

0928410006
ref: 15

SEAL,OIL(10X16X4)

€ 4.00

16

0831616064
ref: 16
08316-1006B

NUT 6MM

€ 2.50

17

1283731310
ref: 17
12837-47010

GASKET,TENSIONER ADJUSTER (MCA)

€ 7.50

18

0912806022
ref: 18
09103-06212

SCREW

€ 2.50

all assemblies
