prices are in EUR
ref
part #
description
quantity
2

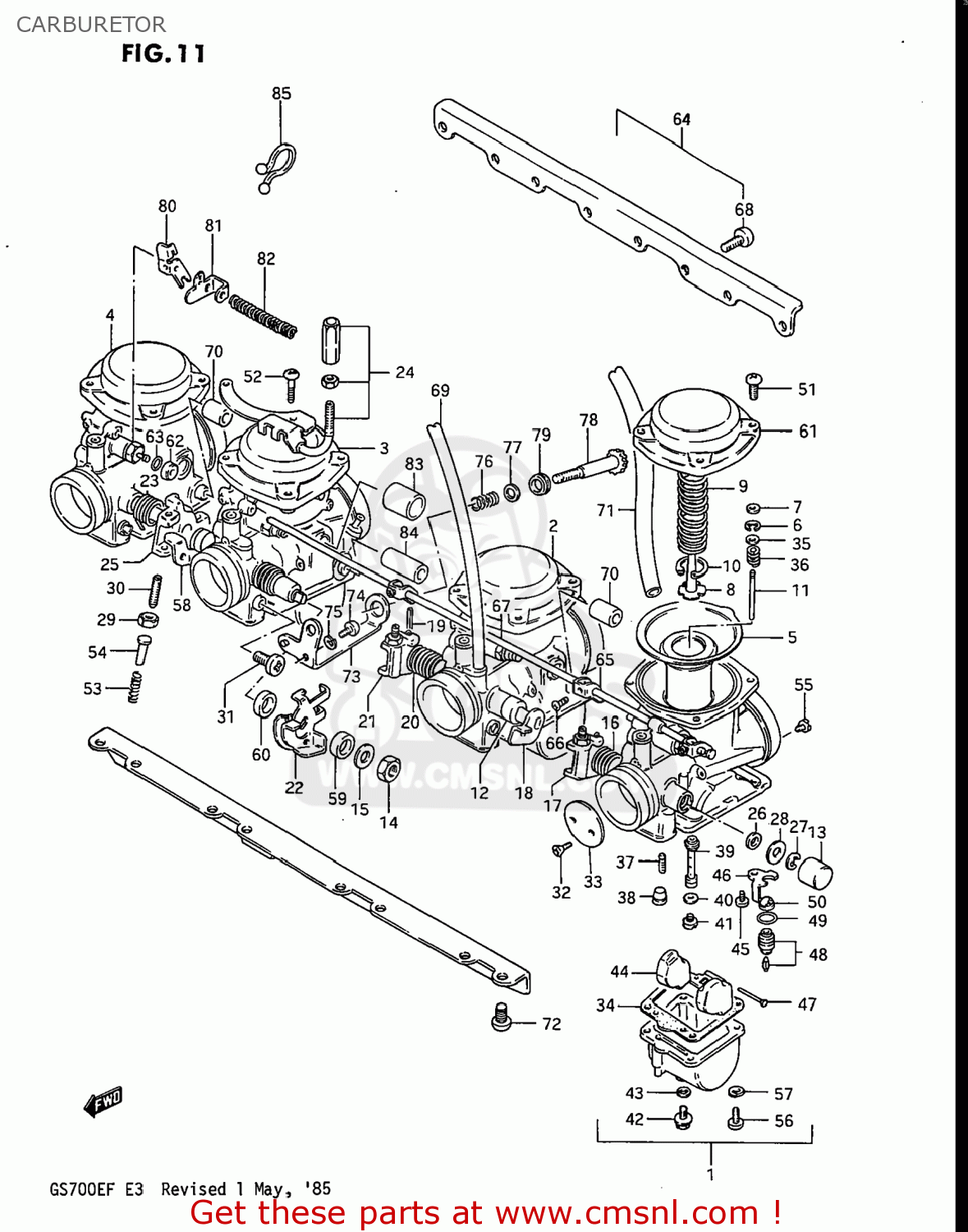

CARBURETOR ASSEMBLY,MIDDLE,LEFT (ASB
6
CLIP,NEEDLE
7
RING
8
HOLDER,GUIDE
9
SPRING,DIAPHRAGM
10
E RING
12
GASKET
13
CAP
14
NUT 8MM
15
WASHER
16
SPRING,THROTTLE SHAFT
17
SHAFT,THROTTLE
22
LEVER ASSEMBLY,THROTTLE
24
BRACKET,THROTTLE CABLE
27
E RING
28
GASKET,THROTTLE SHAFT (NAS)
29
NUT
30
SCREW
31
SCREW
32
SCREW
33
VALVE,THROTTLE (BUTTERFLY)
34
GASKET,FLOAT CHAMBER (NAS)
35
WASHER
35
WASHER
36
SPRING
37
JET,PILOT(37.5)
38
PLUG,NEEDLE JET
41
JET,MAIN(122.5)
42
PLUG,DRAIN
43
GASKET (NAS)
44
FLOAT
45
SCREW 4X6
46
PLATE,NEEDLE VALVE FITING
47
PIN,FLOAT
48
VALVE ASSEMBLY,NEEDLE
49
O-RING,NEEDLE VALVE
51
SCREW
53
SPRING,THROTTLE SCREW
54
PIN,THROTTLE LEVER
55
JET
56
SCREW
57
LOCK WASHER
62
CAP,STARTER VALVE
63
O RING
63
O RING
64
FLANGE ASSEMBLY,CARBURETOR
65
LEVER
66
SCREW,THROTTLE ADJUST
70
NIPPLE,CARBURETOR
72
SCREW 6X12
73
BRACKET,THROTTLE ADJUST
74
SCREW
75
LOCK WASHER
78
ADJUSTER
79
BUSH
81
PLATE,CHOKE CABLE
84
NIPPLE,CARBURETOR
