FRONT DAMPER
GS700E 1985 (F) USA (E03)

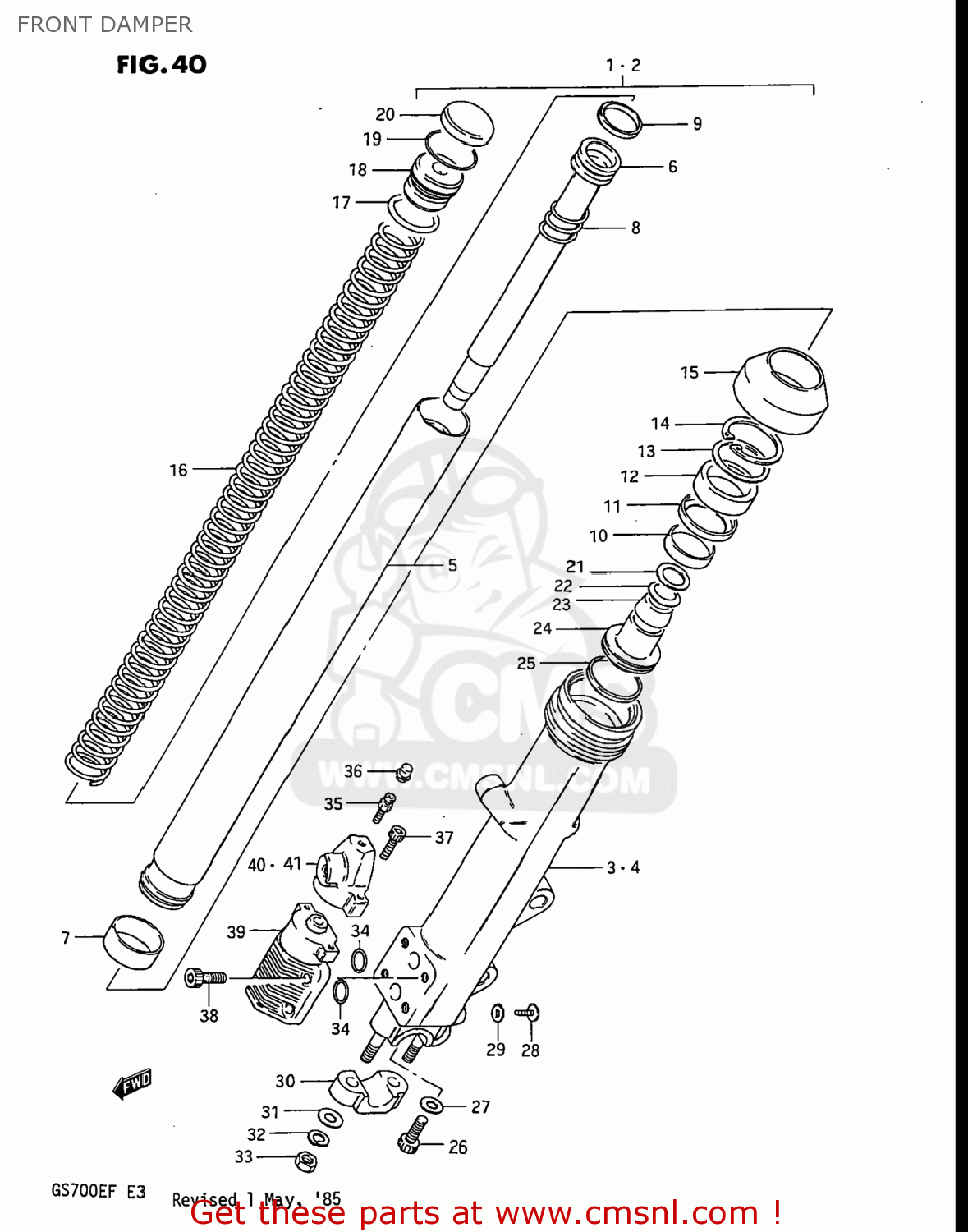

Front damper diagram GS700E 1985 (F) USA (E03)
FRONT DAMPER GS700E 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110331305
ref: 1
DAMPER ASSEMBLY,RIGHT
€ 287.50
2
5110431305
ref: 2
DAMPER ASSEMBLY,LEFT
€ 316.00
3
511303130015T
ref: 3
TUBE,OUTER,RIGHT
€ 255.00
4
511403130015T
ref: 4
TUBE,OUTER,LEFT
€ 127.50
5
5111031305
ref: 5
TUBE,FORK,INNER
€ 246.50
6
5114631305
ref: 6
CYLINDER,FRONT FORK
€ 29.00
7
5112131300
ref: 7
PISTON
€ 18.50
8
5117734210
ref: 8
SPRING,FORK REBOUND
€ 7.00
9
5119634210
ref: 9
RING,PISTON
€ 6.50
10
5115231300
ref: 10
BUSHING,GUIDE
€ 22.50
11
5116834210
ref: 11
51168-38A00
SPACER,SEAL
€ 5.50
12
5115309310
ref: 12
51153-03B30
OIL SEAL,FRONT FORK
€ 15.00
13
5115834320
ref: 13
RING,BACKUP
€ 4.00
14
5155634320
ref: 14
CIRCLIP,INNTERNAL
€ 7.00
15
5157145200
ref: 15
51571-34320
BOOT
€ 20.50
16
5117131305
ref: 16
SPRING
€ 15.00
17
5111734210
ref: 17
O RING
€ 5.00
18
5117534210
ref: 18
SEAT,FRONT FORK SPRING
€ 12.50
19
5116934210
ref: 19
STOPPER RING,FORK SPRING
€ 3.00
20
5118934210
ref: 20
CAP,FRONT FORK
€ 5.00
21
5112634310
ref: 21
VALVE
€ 2.50
22
5112734310
ref: 22
SPRING,VALVE
€ 3.00
23
5112534310
ref: 23
VALVE,OIL LOCK PIEACE
€ 7.00
24
5119534370
ref: 24
PIECE,OIL LOCK
€ 24.00
25
5112334320
ref: 25
RING,PISTON
€ 14.50
26
5114748130
ref: 26
BOLT(8X27)
€ 3.50
27
5114831030
ref: 27
51148-36011
GASKET (NAS)
€ 4.00
28
0211204068
ref: 28
02112-0406B
SCREW 4X6
€ 2.00
29
5118333030
ref: 29
GASKET (NAS)
€ 6.50
30
511324404015T
ref: 30
HOLDER,AXLE
€ 38.50
31
0832221085
ref: 31
08322-0108A
WASHER
€ 1.50
32
0832121084
ref: 32
08321-0108A
WASHER,LOCK,8.
€ 2.50
33
0831011085
ref: 33
08310-0008A
NUT
€ 1.50
34
5179911420
ref: 34
09280-15007
O RING,FR FORK
€ 2.00
35
5177811420
ref: 35
BREATHER
€ 8.50
36
5177911420
ref: 36
CAP
€ 4.50
37
5179734310
ref: 37
07130-05167
BOLT
€ 2.50
38
5179634310
ref: 38
07130-0616B
BOLT
€ 2.50
39
5179031300
ref: 39
VALVE SET,MODULATOR
€ 210.50
40
5178031300
ref: 40
PLUNGER SET,MODULATOR,RIGHT
€ 92.00
41
5177031300
ref: 41
PLUNGER SET,MODULATOR,LEFT
€ 76.50
