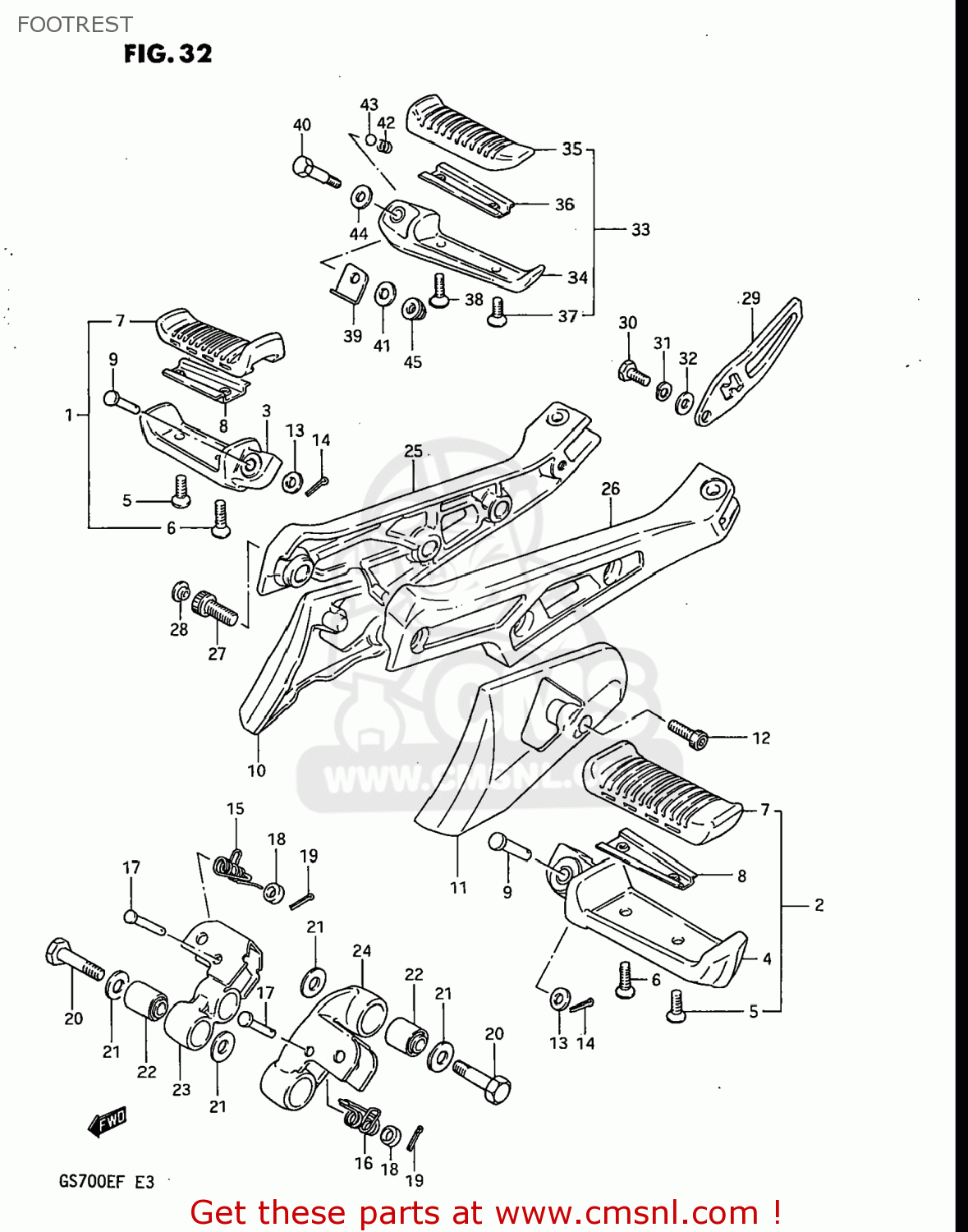

FOOTREST

ref

part #

description

quantity

1

4350131300
ref: 1

FOOTREST ASSEMBLY,FRONT,RIGHT

€ 54.50

2

4350231300
ref: 2

FOOTREST ASSEMBLY,FRONT,LEFT

€ 50.00

3

4351031300
ref: 3

BAR,FRONT FOOTREST,RIGHT

€ 18.00

4

4352031300
ref: 4

BAR,FR FOOTREST,L

€ 48.00

5

0211205128
ref: 5
02112-05127

SCREW

€ 2.50

6

0211205168
ref: 6
02112-05167

SCREW

€ 2.50

7

4355131300
ref: 7
43550-31300

RUBBER,FOOTREST

€ 15.50

8

4358033301
ref: 8

PLATE,FR FOOTREST RUBBER

€ 4.50

9

0920008034
ref: 9
09200-08002

PIN

€ 2.00

10

4358531300
ref: 10

COVER,FRONT FOOTREST,RIGHT

€ 47.50

11

4359531300
ref: 11

COVER,FRONT FOOTREST,LEFT

€ 33.50

12

0711006205
ref: 12
07130-0620B

BOLT

€ 3.00

13

0832211084
ref: 13
08322-0108A

WASHER

€ 1.50

14

0411120208
ref: 14
04111-2020A

PIN 20X20

€ 1.50

15

0944812013
ref: 15

SPRING

€ 6.00

16

0944812014
ref: 16

SPRING

€ 4.50

17

0920006010
ref: 17

PIN

€ 2.50

18

0918006074
ref: 18
09180-06299

SPACER (6.5X12X5.5)

€ 2.50

19

0411120208
ref: 19
04111-2020A

PIN 20X20

€ 1.50

20

0910010191
ref: 20

BOLT 10X40

€ 2.00

21

0916010005
ref: 21

WASHER(10.5X20X3.2)

€ 2.00

22

0931910047
ref: 22

BUSH

€ 8.00

23

4353031300
ref: 23

HOLDER,FRONT FOOTREST,RIGHT

€ 14.50

24

4354031300
ref: 24

HOLDER,FRONT FOOTREST,LEFT

€ 13.00

25

4381131300
ref: 25

BRACKET,MUFFLER,RIGHT

€ 119.00

26

4382131300
ref: 26

BRACKET,MUFFLER,LEFT

€ 77.50

27

0711010255
ref: 27
07130-1025B

BOLT 10X25

€ 3.50

28

4357534500
ref: 28

CAP

€ 1.50

29

4367131300
ref: 29

GUIDE,REAR FOOT

€ 27.50

30

0110708168
ref: 30
01500-0816B

BOLT

€ 2.00

31

0832121088
ref: 31
08321-01087

LOCK WASHER

€ 2.00

32

0832211088
ref: 32
08322-01087

WASHER

€ 2.00

33-1

4360031300
ref: 33-1

FOOTREST ASSY,PILLION,R

€ 39.50

33-2

4370031300
ref: 33-2

FOOTREST ASSEMBLY,PILLION

€ 27.50

34-1

4361045501
ref: 34-1

BAR,PILLION FOOTREST,RIGHT

€ 17.00

34-2

4371045501
ref: 34-2

BAR,PILLION FOOTREST,LEFT

€ 16.00

35

4361231300
ref: 35

RUBBER,RR FOOTREST

€ 8.00

36

4363245501
ref: 36

PLATE,RUBBER STOPPER

€ 2.50

37

0213205127
ref: 37
02122-05127

SCREW 5X12

€ 2.50

38

0213205167
ref: 38
02122-05167

SCREW 5X16

€ 2.00

39-1

4363509300
ref: 39-1

PLATE,SPRING STOP,R

€ 3.50

39-2

4373509300
ref: 39-2

PLATE,SPRING STOP

€ 3.00

40

0911106035
ref: 40

BOLT

€ 4.50

41

0918108004
ref: 41

SHIM(8.2X22X0.2)

€ 2.50

42

0944005003
ref: 42

SPRING

€ 1.50

43

0611107004
ref: 43

BALL

€ 1.50

44

0832211088
ref: 44
08322-01087

WASHER

€ 2.00

45

0831931068
ref: 45
08319-31067

NUT

€ 2.50
