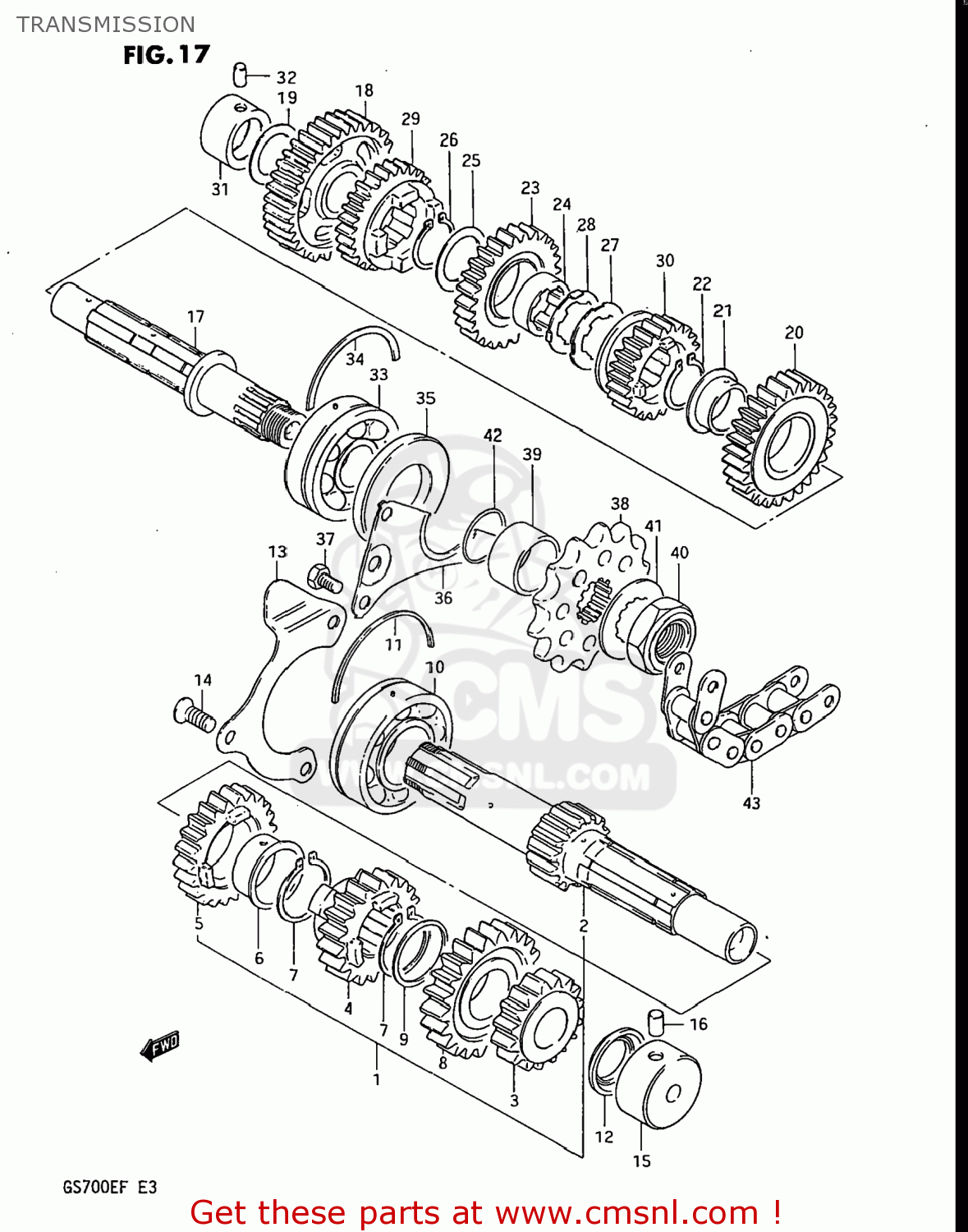

TRANSMISSION

ref

part #

description

quantity

1

2412031301
ref: 1

SHAFT,COUNTER

€ 0.00

2

2412131302
ref: 2

SHAFT,COUNTER

€ 145.00

3

2422131300
ref: 3

GEAR,SECOND DRIVE

€ 104.50

4

2423131304
ref: 4

GEAR,THIRD DRIVE

€ 87.00

5

2424131300
ref: 5

GEAR,FOURTH DRIVE

€ 82.50

6

0930125001
ref: 6
24322-19F00

BUSHING

€ 12.50

7

0938025003
ref: 7

RING,SNAP

€ 3.00

8

2425131302
ref: 8

GEAR,FIFTH DRIVE (NT:23)

€ 95.50

9

0916725012
ref: 9

WASHER,LOCK

€ 3.50

10

0926225051
ref: 10
09262-25105

BEARING(25X62X17)

€ 59.50

11

0939062006
ref: 11
09390-62012

C-RING

€ 5.00

12

0928520006
ref: 12

SEAL,OIL(20X31.2X2.7)

€ 7.00

13

2474131300
ref: 13

PLATE,COUNTERSHAFT BEARING

€ 7.00

14

0212206168
ref: 14
02122-06167

SCREW

€ 2.00

15

0926320049
ref: 15

BEARING(20X34X17.5)

€ 58.00

16

0422107209
ref: 16

PIN

€ 1.50

17

2413131312
ref: 17

SHAFT,DRIVE

€ 58.00

18

2431031300
ref: 18

GEAR,1ST DRIVEN(NT:35)

€ 94.50

19

0821120341
ref: 19

WASHER

€ 2.00

20

2432131300
ref: 20

GEAR,2ND DRIVEN(NT:28)

€ 78.00

21

0930128001
ref: 21

BUSH(28X32X2)

€ 19.50

22

0833111289
ref: 22
08331-3128A

CIRCLIP

€ 2.50

23

2433131300
ref: 23

GEAR,THIRD DRIVEN

€ 85.00

24

2433249000
ref: 24

BUSH,3RD DRIVEN GEAR

€ 13.50

25

0916728001
ref: 25

WASHER,LOCK

€ 3.00

26

0833111289
ref: 26
08331-3128A

CIRCLIP

€ 2.50

27

0916728002
ref: 27

WASHER,LOCK

€ 3.00

28

0916928001
ref: 28

WASHER

€ 3.00

29

2434131303
ref: 29

GEAR,4TH DRIVEN(NT:26)

€ 99.50

30

2435131301
ref: 30

GEAR,5TH DRIVEN(NT:22)

€ 87.00

31

0926320040
ref: 31

BEARING(20X34X20)

€ 42.50

32

0422107209
ref: 32

PIN

€ 1.50

33

0926225065
ref: 33
09262-25105

BALL BEARING 25X62X17

€ 59.50

34

0939062006
ref: 34
09390-62012

C-RING

€ 5.00

35

0928333002
ref: 35

SEAL,OIL(33X62X7)

€ 14.00

36

2475131300
ref: 36

PLATE,DRIVESHAFT OIL

€ 4.50

37

0110706108
ref: 37
01500-06107

BOLT

€ 2.00

38

2751147100
ref: 38
27510-21E00

SPROCKET,ENGINE

€ 45.00

39

0918025066
ref: 39

SPACER (25X33X20.1)

€ 7.50

40

0915920001
ref: 40
09159-20004

NUT

€ 12.00

41

0916725014
ref: 41
09167-25019

WASHER

€ 2.50

42

0928025001
ref: 42

O RING(D:1,ID:24.5)

€ 2.50

43

2760031340
ref: 43
27600-24F20-120

CHAIN ASSEMBLY,DRIVE

€ 243.00
