CRANKCASE
GS700E 1985 (F) USA (E03)

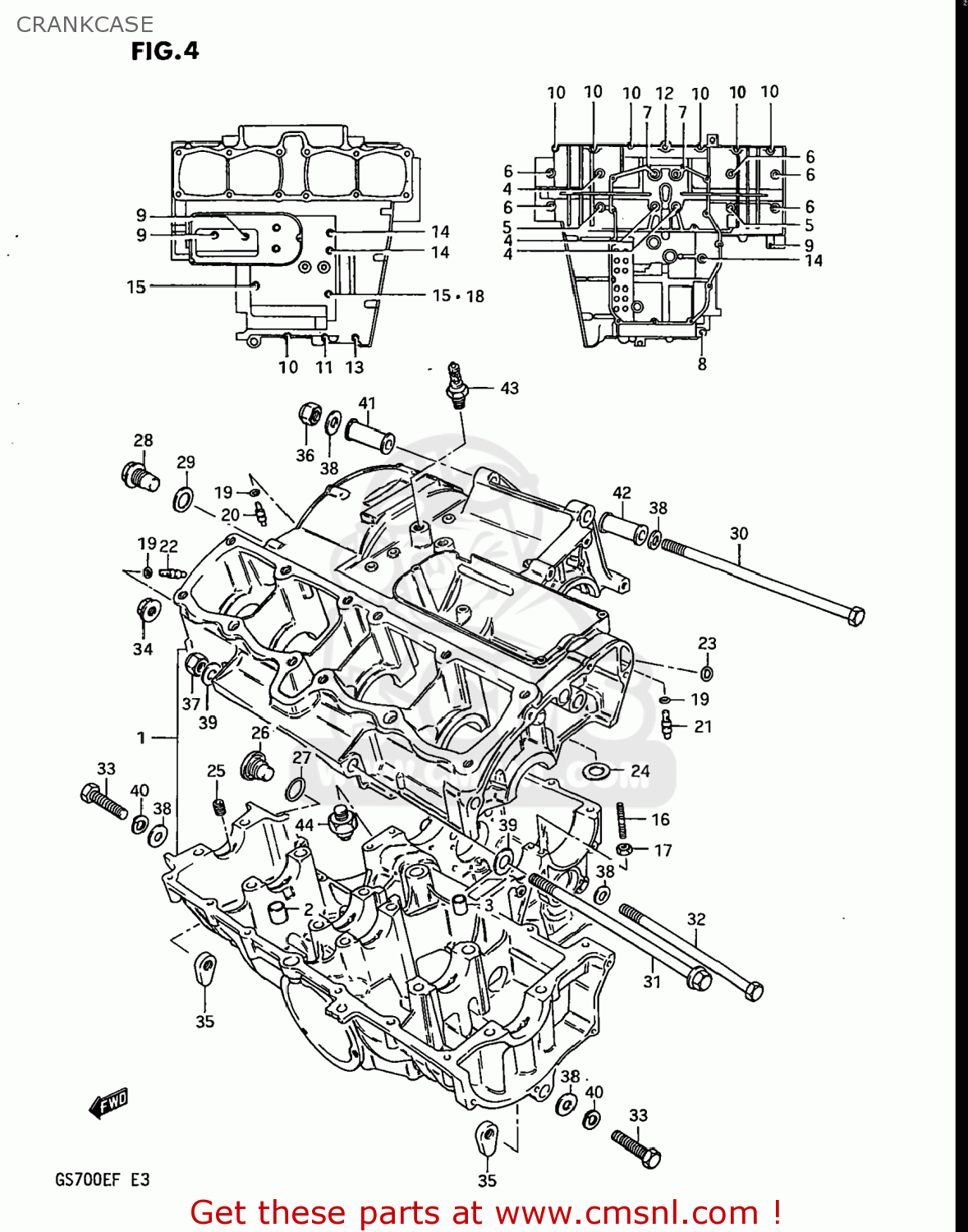

Crankcase diagram GS700E 1985 (F) USA (E03)
CRANKCASE GS700E 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130031881
ref: 1
CRANKCASE ASSEMBLY
€ 1,526.00
2
0920613004
ref: 2
PIN(10.4X13X22)
€ 3.00
3
0920611005
ref: 3
09206-11017
PIN (11X20)(SUS)
€ 6.50
4
0910308109
ref: 4
BOLT(8X120)
€ 3.50
5
0910308038
ref: 5
BOLT(8X135)
€ 4.00
6
0910308080
ref: 6
09103-08139
BOLT
€ 5.50
7
0711008606
ref: 7
07130-0860B
BOLT
€ 4.50
8
0151708605
ref: 8
01550-0860A
BOLT 8X60
€ 3.50
9
0151706354
ref: 9
01550-0635A
BOLT 6X35
€ 2.50
10
0151706404
ref: 10
01550-0640A
BOLT
€ 2.00
11
0151706408
ref: 11
01550-06407
BOLT
€ 2.50
12
0151706505
ref: 12
01550-0650A
BOLT 6X50
€ 2.00
13
0151706555
ref: 13
01550-0655B
BOLT 6X55
€ 2.00
14
0151706855
ref: 14
01550-0685B
BOLT
€ 2.50
15
0151706955
ref: 15
BOLT (5X95)
€ 3.00
16
0142106458
ref: 16
01421-0645A
STUD BOLT (6X45)
€ 2.50
17
0915906017
ref: 17
08319-31067
NUT
€ 2.50
18
0916806018
ref: 18
GASKET(6.2X13X1.2) (NAS)
€ 2.00
19
0928004004
ref: 19
O RING(D:1.2,ID:4)
€ 2.00
20
0949320014
ref: 20
JET,OIL GALLERY
€ 8.00
21
0949380005
ref: 21
JET(8)
€ 12.00
22
0949380007
ref: 22
JET,OIL
€ 14.00
23
0928013001
ref: 23
O RING(D:3.2,ID:12.9)
€ 4.00
24
0821110201
ref: 24
09181-10195
WASHER,THRUST
€ 2.00
25
0949350005
ref: 25
JET,AIR
€ 0.00
26
0924816003
ref: 26
09248-16007
PLUG
€ 16.50
27
0928017002
ref: 27
O RING(D:2.4,ID:16.8)
€ 3.50
28
0924814006
ref: 28
PLUG
€ 4.00
29
0916814004
ref: 29
GASKET(14X19.2X2) (NAS)
€ 2.50
30
0910010195
ref: 30
BOLT 10X255
€ 14.50
31
0910310109
ref: 31
BOLT 10X205
€ 12.00
32
0910010137
ref: 32
09100-10078
BOLT
€ 10.50
33
0110710355
ref: 33
01500-1035B
BOLT
€ 2.50
34
0831931105
ref: 34
08319-3110A
NUT 10MM
€ 3.00
35
0915910020
ref: 35
NUT
€ 7.50
36
0915910039
ref: 36
09159-10064
NUT
€ 8.50
37
0915910052
ref: 37
NUT
€ 8.50
38
0832211105
ref: 38
08322-0110A
WASHER
€ 2.50
39
0916010060
ref: 39
09160-10039
WASHER (10.5X22X2.3)
€ 2.50
40
0832121105
ref: 40
08321-0110A
LOCK WASHER
€ 3.00
41
1161011410
ref: 41
11610-44100
SPACER,ENGINE MOUNT
€ 9.50
42
1161044010
ref: 42
SPACER,ENGINE MOUNT(L:50)
€ 12.00
43
3487031300
ref: 43
34870-31301
GAUGE ASSEMBLY,OIL TEMPERATURE
€ 121.00
44
3782034200
ref: 44
37820-33D10
SWITCH ASSEMBLY
€ 29.00
