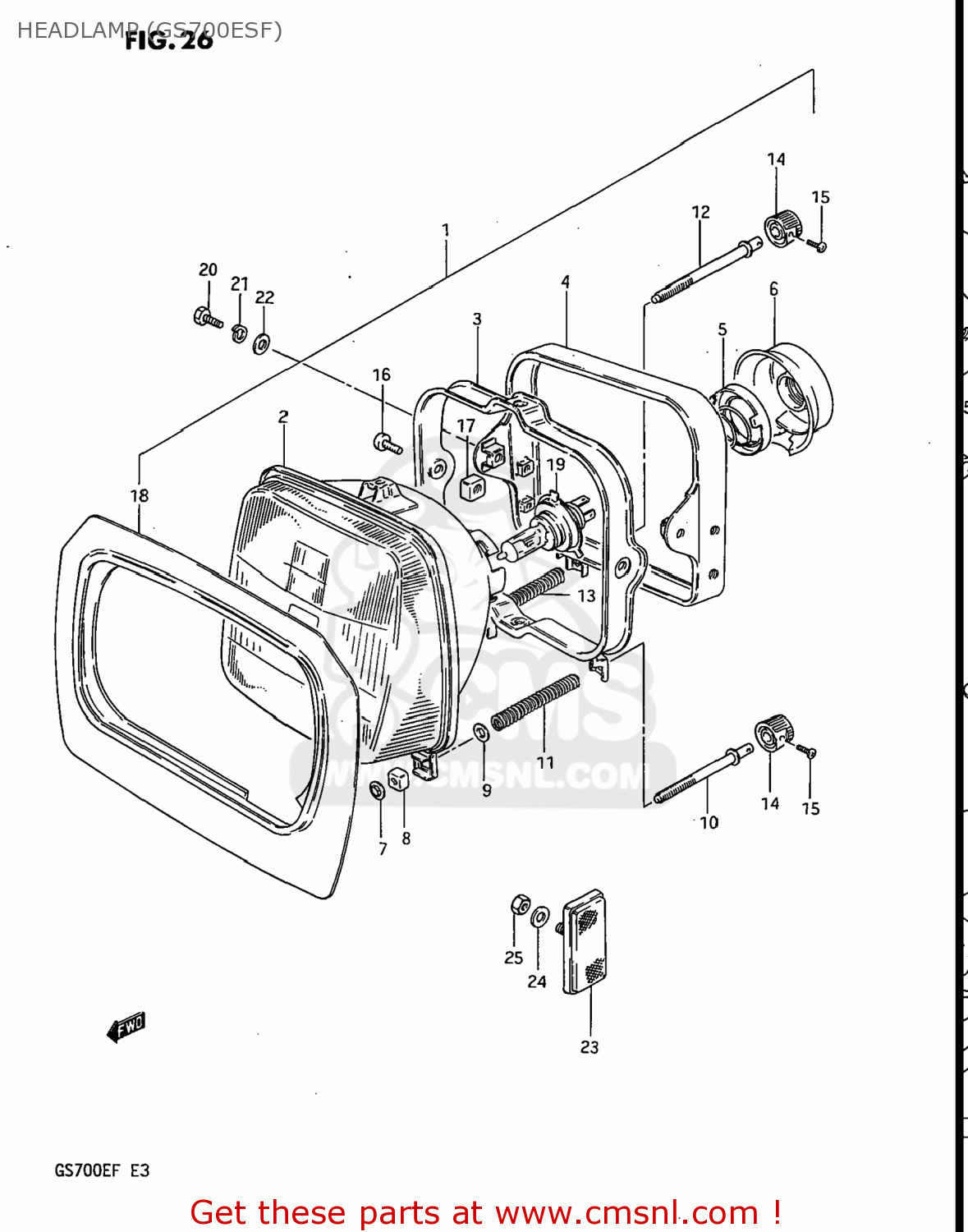

HEADLAMP (GS700ESF)

ref

part #

description

quantity

1

3510049530999
ref: 1

LAMP ASSEMBLY,HEAD

€ 0.00

2

3512149530
ref: 2

LAMP UNIT

€ 0.00

3

3513049500
ref: 3

RING,MOUNTING

€ 30.00

4

3514149500
ref: 4

HOUSING,LAMP UNIT

€ 31.00

5

3513649200
ref: 5

HOLDER

€ 8.50

6

3517349200
ref: 6
35173-38A00

COVER,HEADLAMP SOCKET

€ 12.50

7

3515249330
ref: 7
09148-04010

NUT,HEADLAMP ADJUSTER

€ 2.00

8

3515249500
ref: 8

NUT,HEADLAMP ADJUSTER

€ 2.50

9

3515749320
ref: 9
09160-06073

WASHER

€ 2.00

10

3515149500
ref: 10
35151-49320

SCREW,HEADLAMP ADJUST

€ 16.50

11

3515449500
ref: 11

SPRING

€ 4.50

12

3515149320
ref: 12

SCREW,ADJUSTING

€ 16.50

13

3515449320
ref: 13

SPRING

€ 3.00

14

3516149320
ref: 14
35136-49331

KNOB,ADJUSTER

€ 6.00

15

0211203108
ref: 15
02112-03107

SCREW

€ 1.50

16

0211205128
ref: 16
02112-05127

SCREW

€ 2.50

17

3513545900
ref: 17

NUT

€ 2.50

18

3512949500
ref: 18

SHADE

€ 21.00

19

0947112060
ref: 19

BULB(12V60/55W,H4)

€ 8.00

20

0110706206
ref: 20
01500-0620A

BOLT,M6X1X20

€ 2.00

21

0832121066
ref: 21
08321-0106A

WASHER,LOCK

€ 2.00

22

0832221066
ref: 22
08322-0106B

WASHER, LOWER

€ 2.00

23

3595043431
ref: 23

REFLEX REFLECTOR,FR SIDE

€ 12.00

24

0832221055
ref: 24
08322-0105A

WASHER,5MM

€ 2.50

25

0831012055
ref: 25
08310-0005A

NUT ,5MM

€ 2.50

all assemblies
