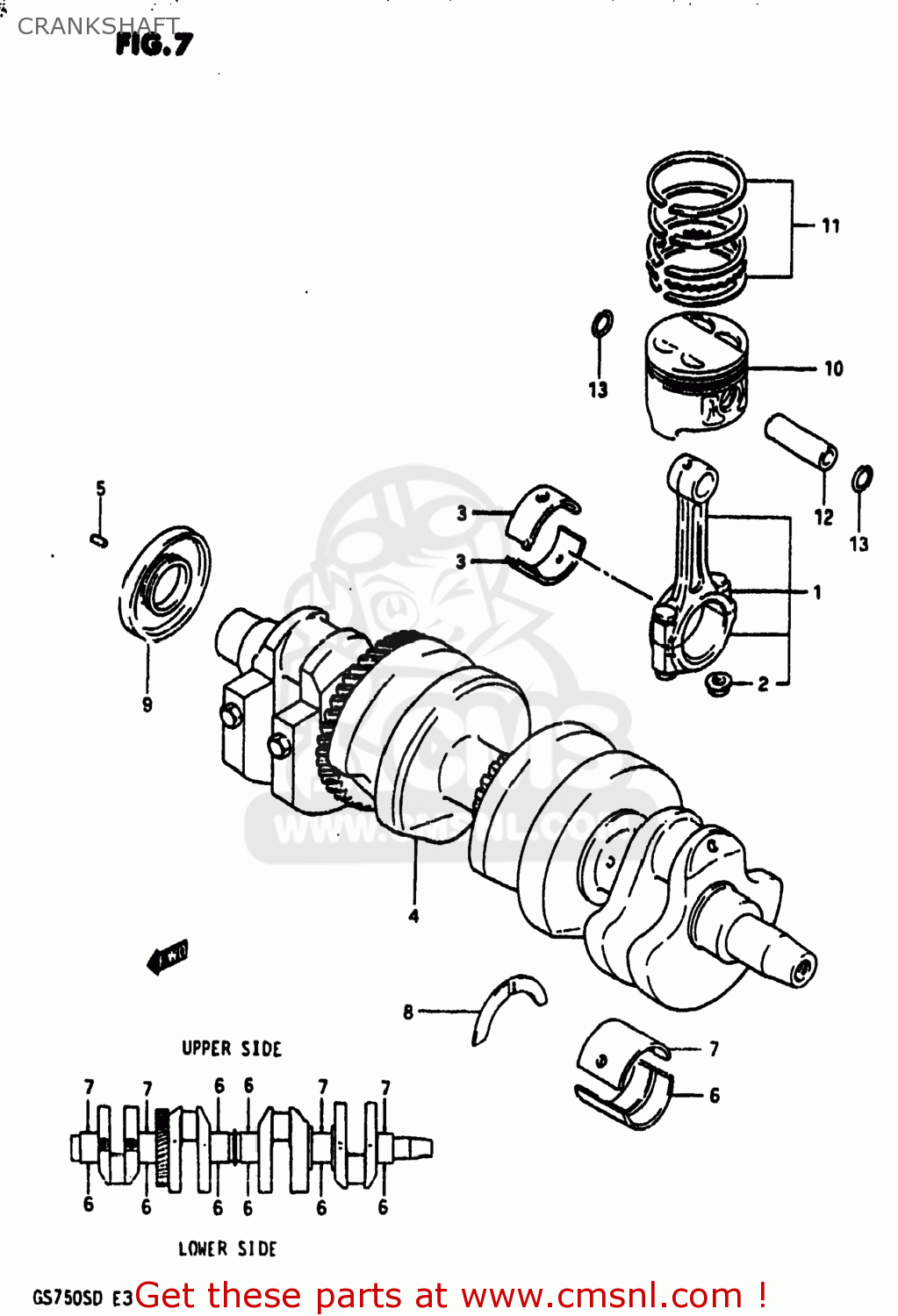

CRANKSHAFT

ref

part #

description

quantity

1

1216045500
ref: 1

ROD ASSEMBLY,CONNECTING

€ 91.50

2

0915908033
ref: 2

NUT

€ 2.50

3-1

1216445510010
ref: 3-1
12164-31E00-0A0

BEARING,CRANK PIN

€ 19.00

3-2

1216445510020
ref: 3-2
12164-31E00-0B0

BEARING,CRANK PIN

€ 19.00

3-3

1216445510030
ref: 3-3
12164-31E00-0C0

BEARING,CRANK PIN

€ 19.00

3-4

1216445510040
ref: 3-4
12164-31E00-0D0

BEARING,CRANK PIN

€ 19.00

4

1222045500
ref: 4

CRANKSHAFT

€ 1,178.00

5

0422104089
ref: 5

PIN

€ 1.50

6-1

1222945400010
ref: 6-1
12229-09301-0A0

METAL CRANKSHAFT

€ 10.00

6-2

1222945400020
ref: 6-2
12229-09301-0B0

METAL CRANKSHAFT

€ 10.00

6-3

1222945400030
ref: 6-3
12229-09301-0C0

METAL CRANKSHAFT

€ 10.00

6-4

1222945400040
ref: 6-4
12229-09301-0D0

METAL CRANKSHAFT

€ 9.00

7-1

1222945410010
ref: 7-1
12229-06B10-0A0

METAL CRANKSHAFT

€ 12.00

7-2

1222945410020
ref: 7-2
12229-06B10-0B0

METAL CRANKSHAFT

€ 12.50

7-3

1222945410030
ref: 7-3
12229-06B10-0C0

METAL CRANKSHAFT

€ 12.00

7-4

1222945410040
ref: 7-4
12229-06B10-0D0

METAL CRANKSHAFT

€ 11.50

8-1

1222831302
ref: 8-1

PLATE,CRANK THRUST

€ 8.00

8-2

1222831304
ref: 8-2

PLATE,CRANK THRUST

€ 9.00

8-3

1222831306
ref: 8-3

PLATE,CRANK THRUST

€ 8.00

9

0928330031
ref: 9
09283-30048

OIL SEAL

€ 15.00

10-1

1211145410
ref: 10-1
12111-45402

PISTON

€ 68.00

10-2

1211145410050
ref: 10-2
12103-45840-050

PISTON

€ 89.00

10-3

1211145410100
ref: 10-3
12103-45840-100

PISTON

€ 72.00

11-1

1214045410
ref: 11-1
12140-31311

RING SET,PISTON

€ 62.50

11-2

1214045410050
ref: 11-2
12140-31311-050

RING SET,PISTON (OS:0.5)

€ 99.50

11-3

1214045410100
ref: 11-3
12140-31311-100

RING SET,PISTON (OS:1.0)

€ 89.00

12

1215145501
ref: 12

PIN,PISTON (18MM)

€ 14.00

13

0938118002
ref: 13

CIRCLIP

€ 1.50
