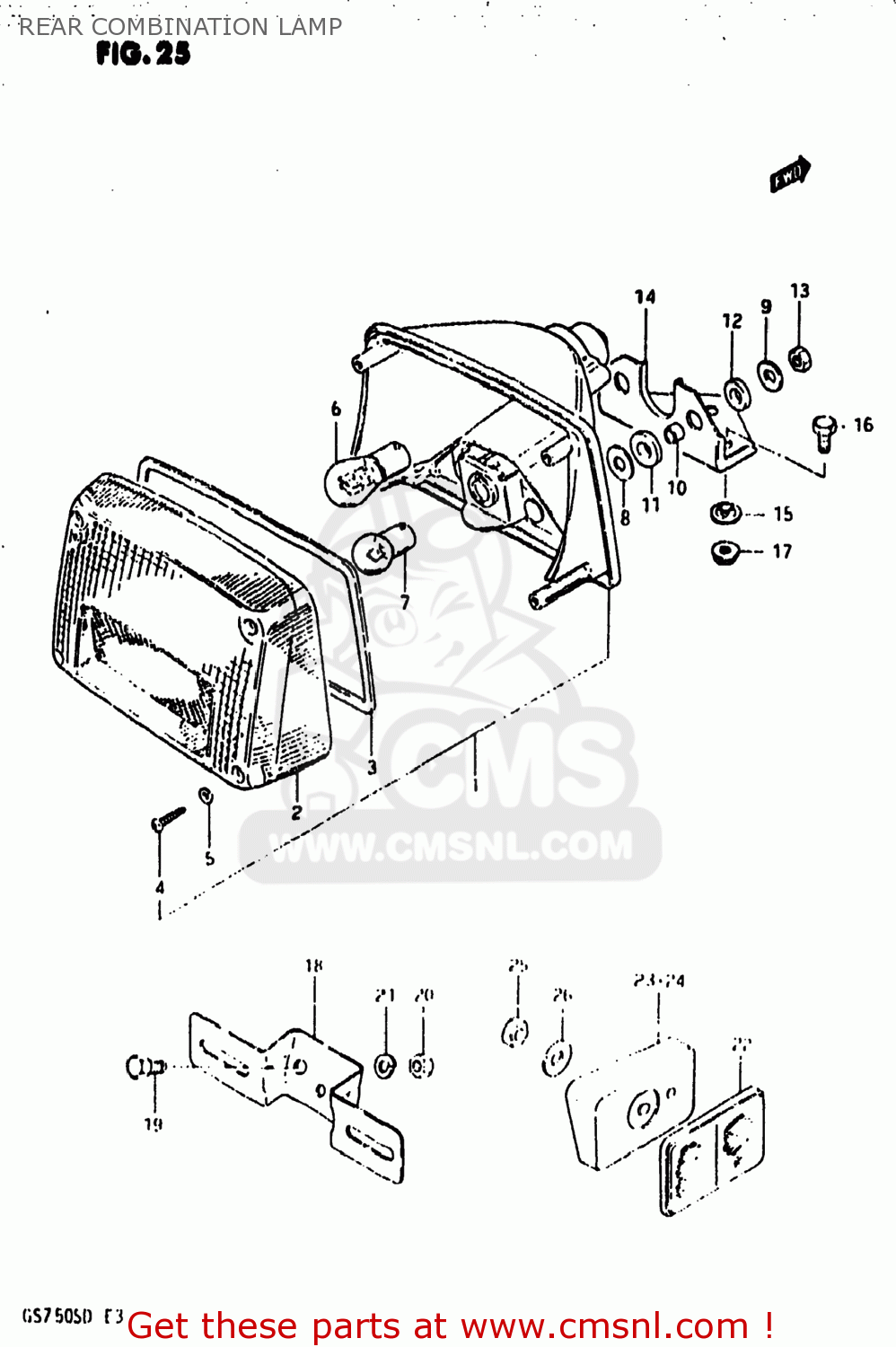

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3571049330
ref: 1

LAMP ASSY,RR COMBINATION

€ 209.50

2

3571249031
ref: 2

LENS

€ 43.50

3

3571349030
ref: 3

GASKET (NAS)

€ 12.50

4

3562749030
ref: 4
03511-0416A

SCREW,REAR COMBINATION LAMP

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947112035
ref: 6

BULB(12V23W)

€ 5.50

7

0947112037
ref: 7
09471-12141

BULB

€ 7.00

8

0916006007
ref: 8
09160-06084

WASHER

€ 2.00

9

0916006012
ref: 9
09160-06054

WASHER(6,5X22X1.6)

€ 2.00

10

0918006038
ref: 10

SPACER(6.1X9X7.5)

€ 2.00

11

0932009003
ref: 11

CUSHION

€ 2.00

12

0932009004
ref: 12

CUSHION

€ 2.50

13

0831626068
ref: 13
08316-2006A

NUT 6MM

€ 2.00

14

3572649330
ref: 14

BRACKET,REAR COMBINATION LAMP

€ 8.00

15

0916906028
ref: 15
09169-06041

WASHER

€ 2.00

16

0110706168
ref: 16
01500-06167

BOLT, UPPER

€ 3.00

17

0831626068
ref: 17
08316-2006A

NUT 6MM

€ 2.00

18

3592749330
ref: 18

BRACKET,LICENSE PLATE

€ 8.50

19

0151706168
ref: 19
01550-06167

BOLT

€ 1.50

20

0831011068
ref: 20
08310-00067

NUT

€ 2.50

21

0832121068
ref: 21
08321-01067

LOCK WASHER

€ 2.50

22

3597049330
ref: 22

REFLEX REFLECTOR,RR

€ 16.50

23

3597749330
ref: 23

SPACER,REAR REFLEX REFLECTOR

€ 2.50

24

3597849330
ref: 24

SPACER,REAR REFLEX REFLECTOR

€ 3.00

25

0831011058
ref: 25
08310-00057

NUT

€ 2.50

26

0832221058
ref: 26
08322-01057

WASHER

€ 2.50
