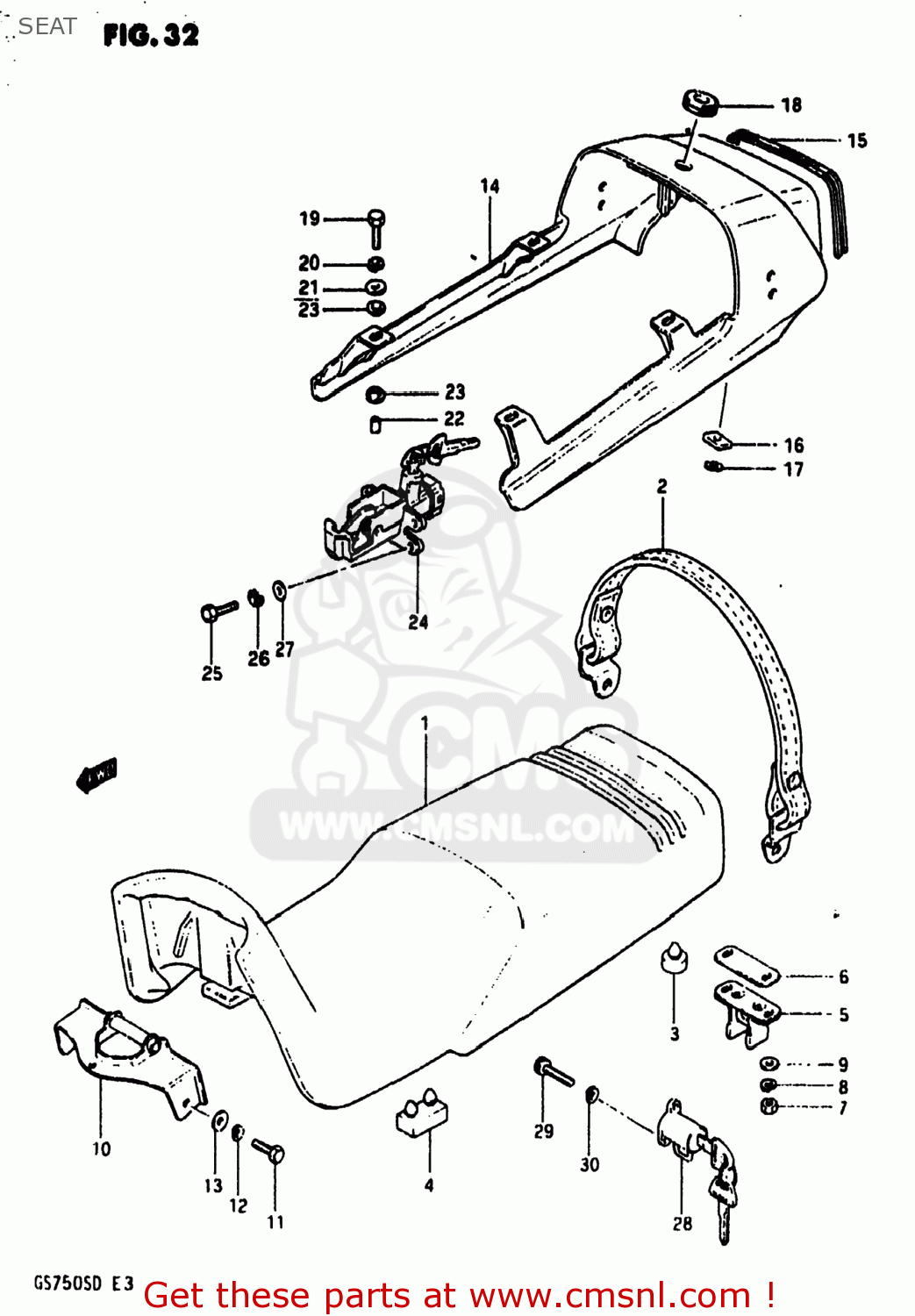

SEAT

ref

part #

description

quantity

1

451004930586Z
ref: 1
45100-49306-B6D

SEAT ASSEMBLY

€ 477.00

2

451804930649V
ref: 2
45180-49316-6RL

BAND,SEAT GRIP

€ 65.00

3

0932108009
ref: 3

CUSHION

€ 4.00

4

0932910001
ref: 4

CUSHION

€ 2.50

5

4521044101
ref: 5

STRIKER,SEAT LOCK

€ 32.50

6

4521744100
ref: 6

SHIM,SEAT LOCK STRIKER

€ 4.50

7

0831022068
ref: 7
08310-00067

NUT 6MM

€ 2.50

8

0832121068
ref: 8
08321-01067

LOCK WASHER

€ 2.50

9

0832221068
ref: 9
08322-01067

WASHER

€ 2.00

10

4521049301
ref: 10

PLATE,SEAT HOOK FR

€ 17.50

11

0110706128
ref: 11
01500-06127

BOLT

€ 2.00

12

0832121068
ref: 12
08321-01067

LOCK WASHER

€ 2.50

13

0832221068
ref: 13
08322-01067

WASHER

€ 2.00

14

4550349820291
ref: 14
45503-49820

COVER,SEAT TAIL

€ 138.00

15

4556249310
ref: 15
45562-49301

MOLE,SEAT TAIL COVER

€ 5.50

16

4552834200
ref: 16

CUSHION,SEAT TAIL

€ 2.50

17

0914803002
ref: 17

NUT

€ 3.00

18

4552249200
ref: 18

GROMMET,SEAT LOCK HOLE

€ 5.50

19

0110706258
ref: 19
01500-06257

BOLT

€ 2.00

20

0832121068
ref: 20
08321-01067

LOCK WASHER

€ 2.50

21

0916006004
ref: 21
09160-06134

WASHER (6.5X24X1.6)

€ 1.50

22

0918007013
ref: 22
09180-06290

SPACER (7X10X12)

€ 2.50

23

0932010003
ref: 23

CUSHION

€ 2.50

24

9570049300KEY
ref: 24
95700-49860

LOCK SET

€ 78.00

25

0110405128
ref: 25
01500-05127

BOLT

€ 2.00

26

0832121058
ref: 26
08321-0105A

LOCK WASHER

€ 2.00

27

0832221058
ref: 27
08322-01057

WASHER

€ 2.50

28

9570035821
ref: 28
95700-49850

LOCK ASSEMBLY,HELMET

€ 57.50

29

0910606005
ref: 29
07130-06307

BOLT

€ 3.00

30

0832121068
ref: 30
08321-01067

LOCK WASHER

€ 2.50

all assemblies
