CYLINDER

GS750A 1983 (D) USA (E03)

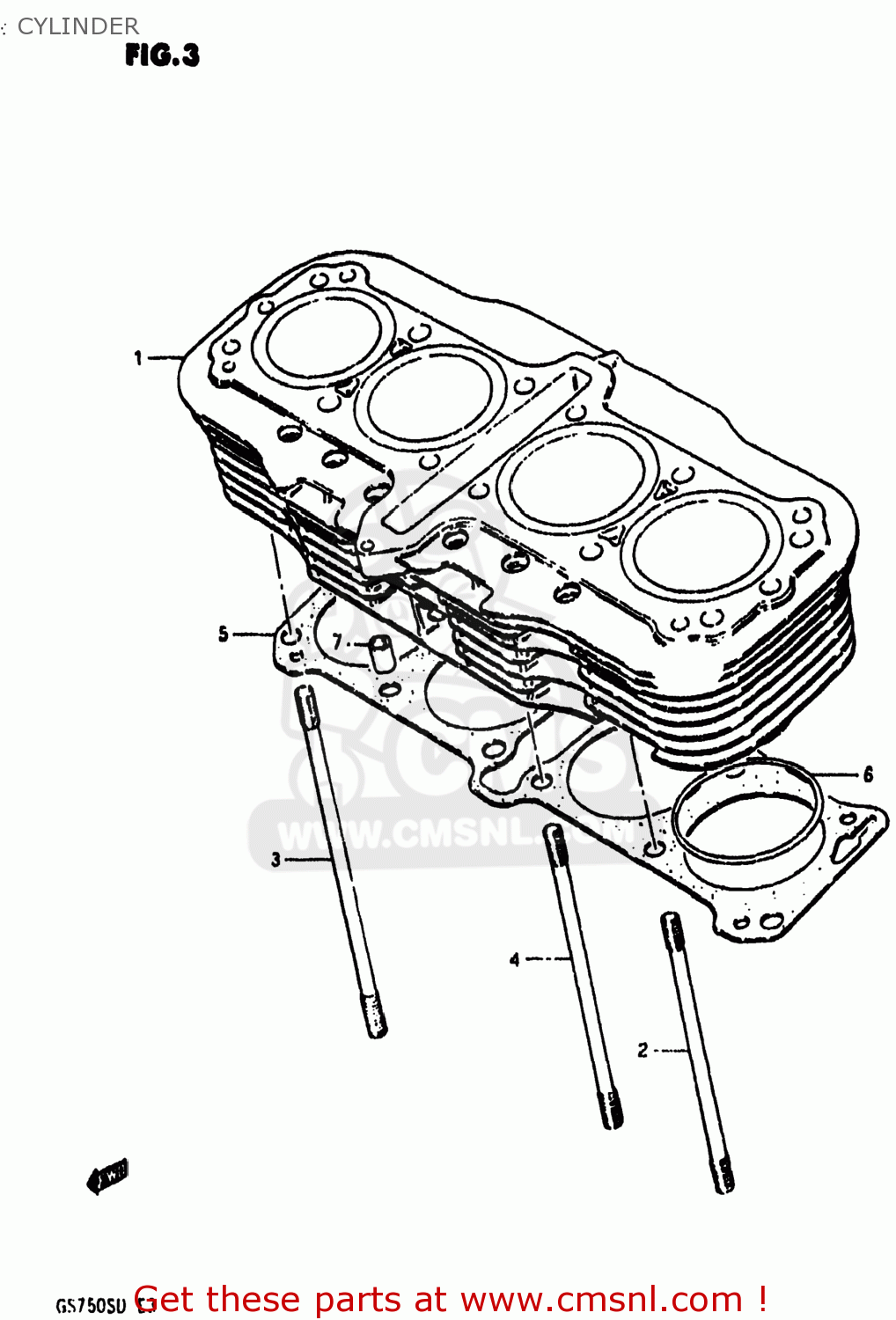

Cylinder diagram GS750A 1983 (D) USA (E03)

CYLINDER GS750A 1983 (D) USA (E03)

CYLINDER GS750A 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121045410
ref: 1

CYLINDER

€ 519.50

2

0910810032
ref: 2

STUD

€ 5.50

3

0910810034
ref: 3
09108-10069

STUD

€ 7.00

4

0910810033
ref: 4
09108-10096

STUD

€ 12.50

5

1124145401
ref: 5
11241-45401-H17

GASKET,CYLINDER (MCA)

€ 23.50

6

0928070001
ref: 6

O RING(D:2,ID:70)

€ 7.50

7

0920613006
ref: 7
09206-13017

PIN

€ 9.00
