CRANKSHAFT
GS750E 1982 (Z) USA (E03)

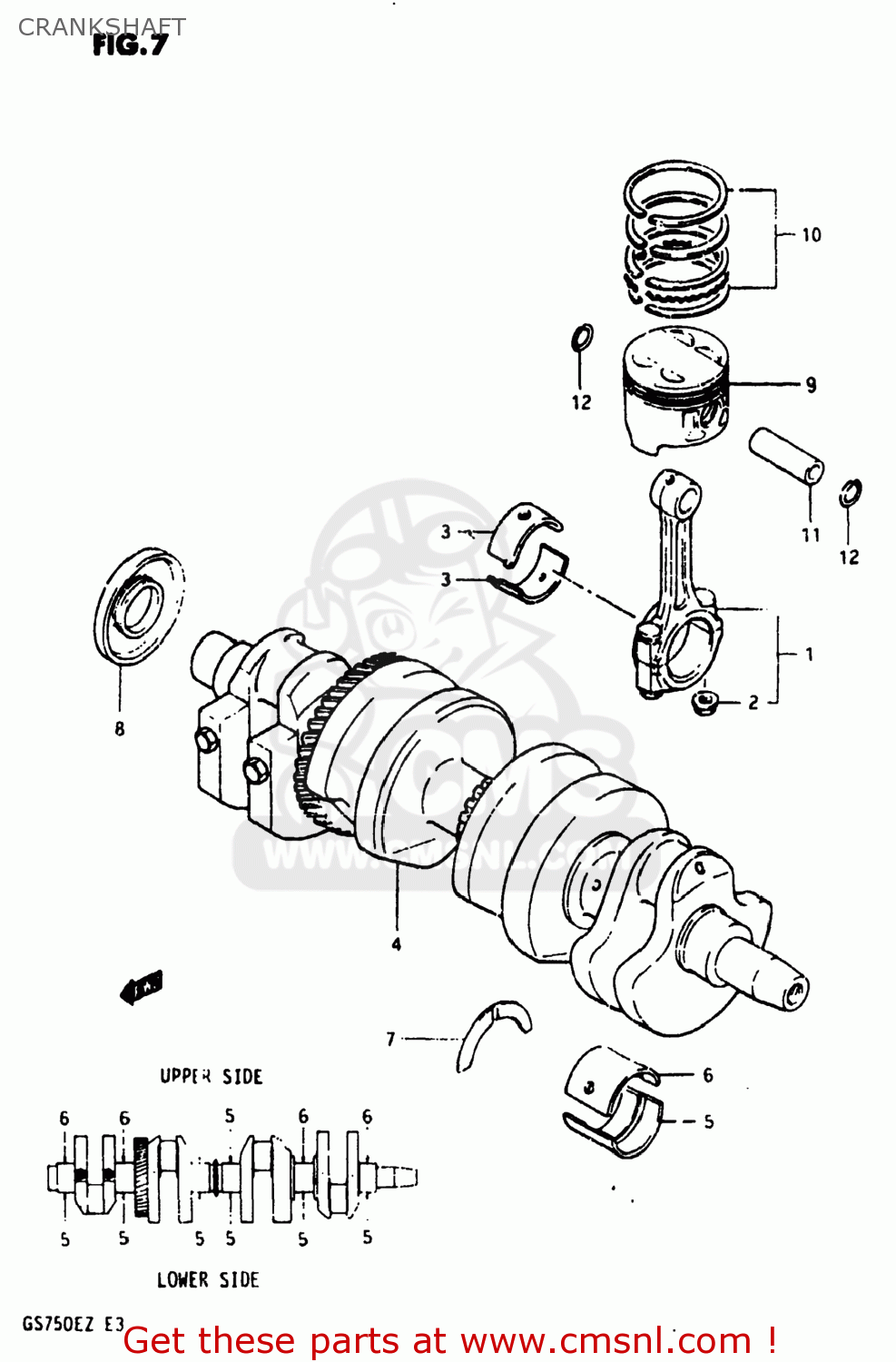

Crankshaft diagram GS750E 1982 (Z) USA (E03)
CRANKSHAFT GS750E 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1216045400
ref: 1
12160-45500
CONNECTING ROD ASSEMBLY
€ 91.50
2
0915908033
ref: 2
NUT
€ 2.50
3-1
1216445510010
ref: 3-1
12164-31E00-0A0
BEARING,CRANK PIN
€ 19.00
3-2
1216445510020
ref: 3-2
12164-31E00-0B0
BEARING,CRANK PIN
€ 19.00
3-3
1216445510030
ref: 3-3
12164-31E00-0C0
BEARING,CRANK PIN
€ 19.00
3-4
1216445510040
ref: 3-4
12164-31E00-0D0
BEARING,CRANK PIN
€ 19.00
3-5
1216445510025
ref: 3-5
BEARING,CRANK PIN(US:0.25)
€ 12.00
3-6
1216445510050
ref: 3-6
BEARING,CRANK PIN(US:0.5)
€ 10.50
4
1222045402
ref: 4
12220-45500
CRANKSHAFT
€ 1,178.00
5-1
1222945400010
ref: 5-1
12229-09301-0A0
METAL CRANKSHAFT
€ 10.00
5-2
1222943400020
ref: 5-2
12229-43400-0B0
METAL CRANKSHAFT
€ 12.00
5-3
1222945400030
ref: 5-3
12229-09301-0C0
METAL CRANKSHAFT
€ 10.00
5-4
1222945400040
ref: 5-4
12229-09301-0D0
METAL CRANKSHAFT
€ 9.00
5-5
1222945400025
ref: 5-5
BEARING,CRANKSHAFT(US:0.25)
€ 11.50
5-6
1222945400050
ref: 5-6
BEARING,CRANKSHAFT(US:0.5)
€ 10.50
6-1
1222945410010
ref: 6-1
12229-06B10-0A0
METAL CRANKSHAFT
€ 12.00
6-2
1222945410020
ref: 6-2
12229-06B10-0B0
METAL CRANKSHAFT
€ 12.50
6-3
1222945410030
ref: 6-3
12229-06B10-0C0
METAL CRANKSHAFT
€ 12.00
6-4
1222945410040
ref: 6-4
12229-06B10-0D0
METAL CRANKSHAFT
€ 11.50
6-5
1222945410025
ref: 6-5
12229-45400-025
METAL CRANKSHAFT
€ 11.50
6-6
1222945410050
ref: 6-6
12229-45400-050
METAL CRANKSHAFT
€ 10.50
7-1
1222845401
ref: 7-1
12228-31306
PLATE,CRANK THRUST
€ 8.00
7-2
1222845402
ref: 7-2
12228-31304
PLATE,CRANK THRUST
€ 9.00
7-3
1222845403
ref: 7-3
12228-31302
PLATE,CRANK THRUST
€ 8.00
8
0928330031
ref: 8
09283-30048
OIL SEAL
€ 15.00
9-1
1211145402
ref: 9-1
PISTON (67.00MM)
€ 68.00
9-2
1211145402050
ref: 9-2
12103-45840-050
PISTON
€ 89.00
9-3
1211145402100
ref: 9-3
12103-45840-100
PISTON
€ 72.00
10-1
1214045410
ref: 10-1
12140-31311
RING SET,PISTON
€ 62.50
10-2
1214045410050
ref: 10-2
12140-31311-050
RING SET,PISTON (OS:0.5)
€ 99.50
10-3
1214045410100
ref: 10-3
12140-31311-100
RING SET,PISTON (OS:1.0)
€ 89.00
11
1215192201
ref: 11
12151-45501
PIN,PISTON (18MM)
€ 14.00
12
0938118002
ref: 12
CIRCLIP
€ 1.50
