REAR BRAKE HOSE

GS750E 1982 (Z) USA (E03)

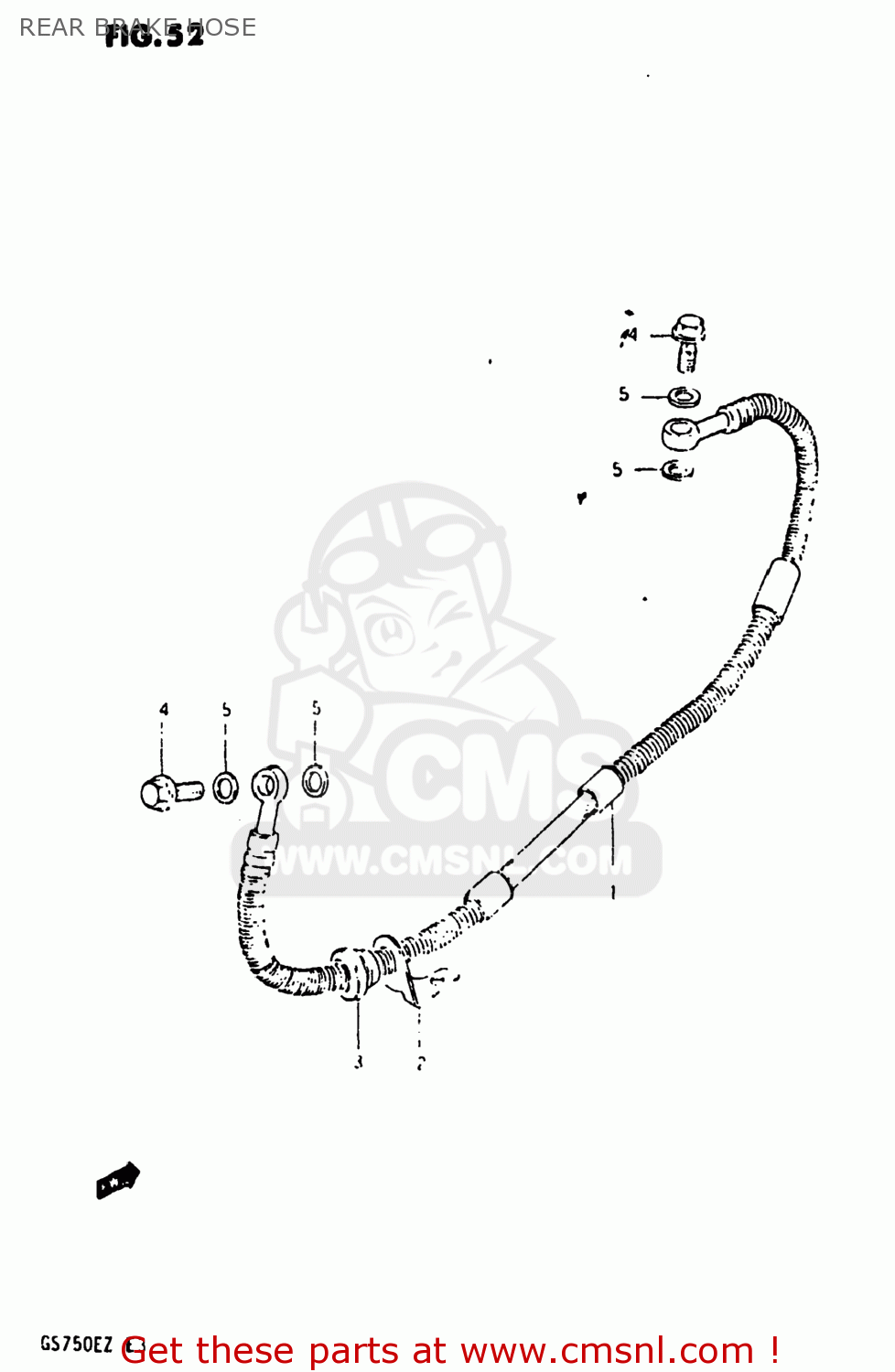

Rear brake hose diagram GS750E 1982 (Z) USA (E03)

REAR BRAKE HOSE GS750E 1982 (Z) USA (E03)

REAR BRAKE HOSE GS750E 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6948049003
ref: 1

HOSE,REAR BRAKE

€ 76.50

2

6924347000
ref: 2

GUIDE,BRAKE HOSE

€ 5.50

3

5924436200
ref: 3

GROMMET,BRAKE HOSE GUIDE

€ 4.00

4

0936010007
ref: 4
09360-10017

BOLT,UNION

€ 6.50

5

0916110005
ref: 5
09161-10009

WASHER

€ 2.00
