FRAME COVER

GS750E 1982 (Z) USA (E03)

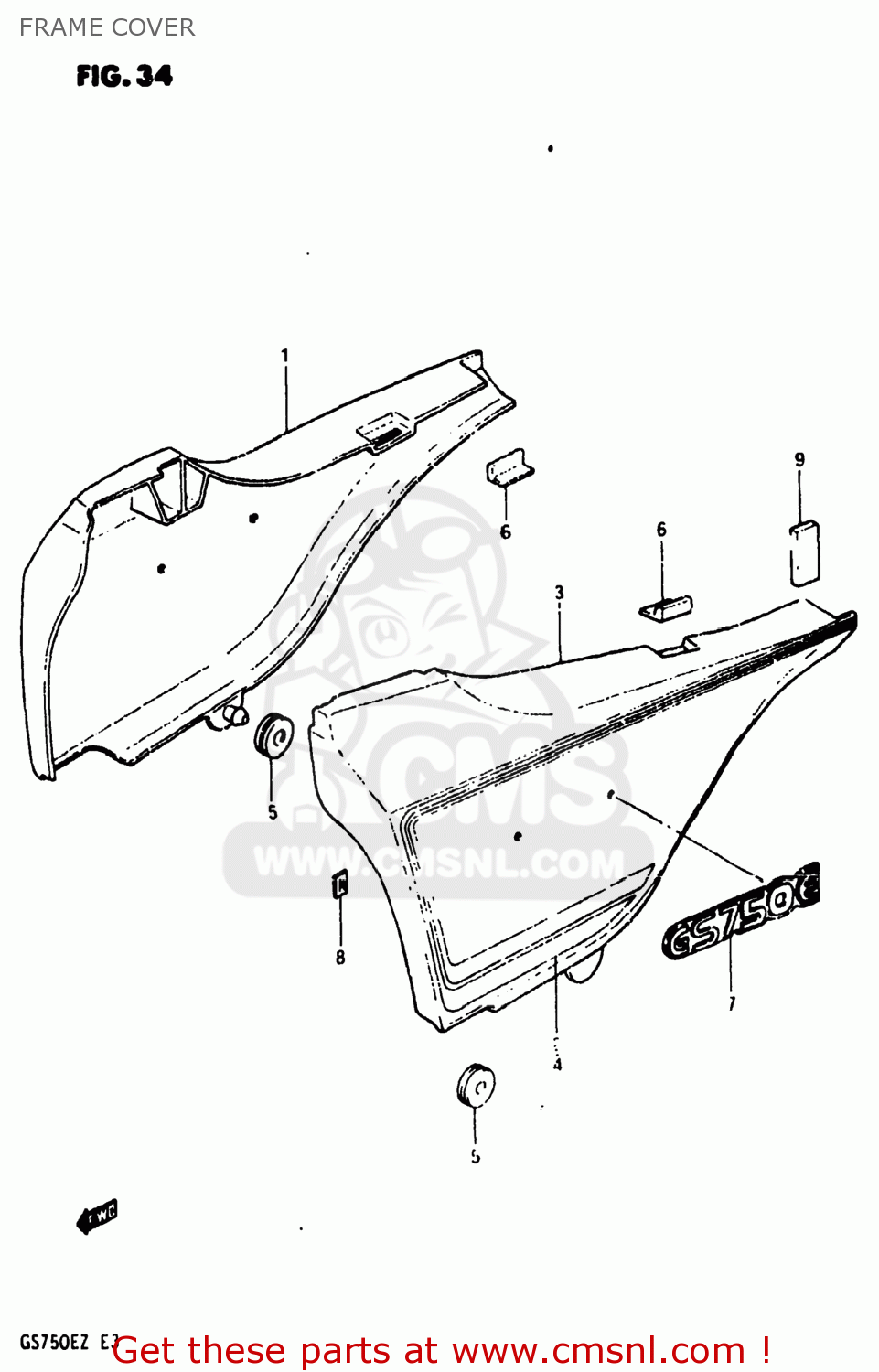

Frame cover diagram GS750E 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

471104546013Z
ref: 1-1
47111-49200

COVER,FRAME,R

€ 94.00

1-2

471104546010S
ref: 1-2
47111-49200

COVER,FRAME,RIGHT

€ 94.00

681304546081P
ref: 2
68130-45Z05-81P

TAPE SET,FRAME COVER

€ 26.00

3-1

472104546013Z
ref: 3-1
47211-49200

COVER,FRAME,LEFT

€ 69.50

3-2

472104546010S
ref: 3-2
47211-49200

COVER,FRAME,LEFT

€ 69.50

TAPE SET,FRAME COVER

€ 11.50

0932008018
ref: 5

CUSHION

€ 4.00

4711702400
ref: 6

CUSHION,FRAME COVER

€ 2.00

6813145450
ref: 7

EMBLEM,FRAME COVER

€ 31.00

0914803002
ref: 8

NUT

€ 3.00

4711349200
ref: 9

RUBBER,FRAME COVER

€ 2.50
