FRONT RH DUMPER
GS750E 1982 (Z) USA (E03)

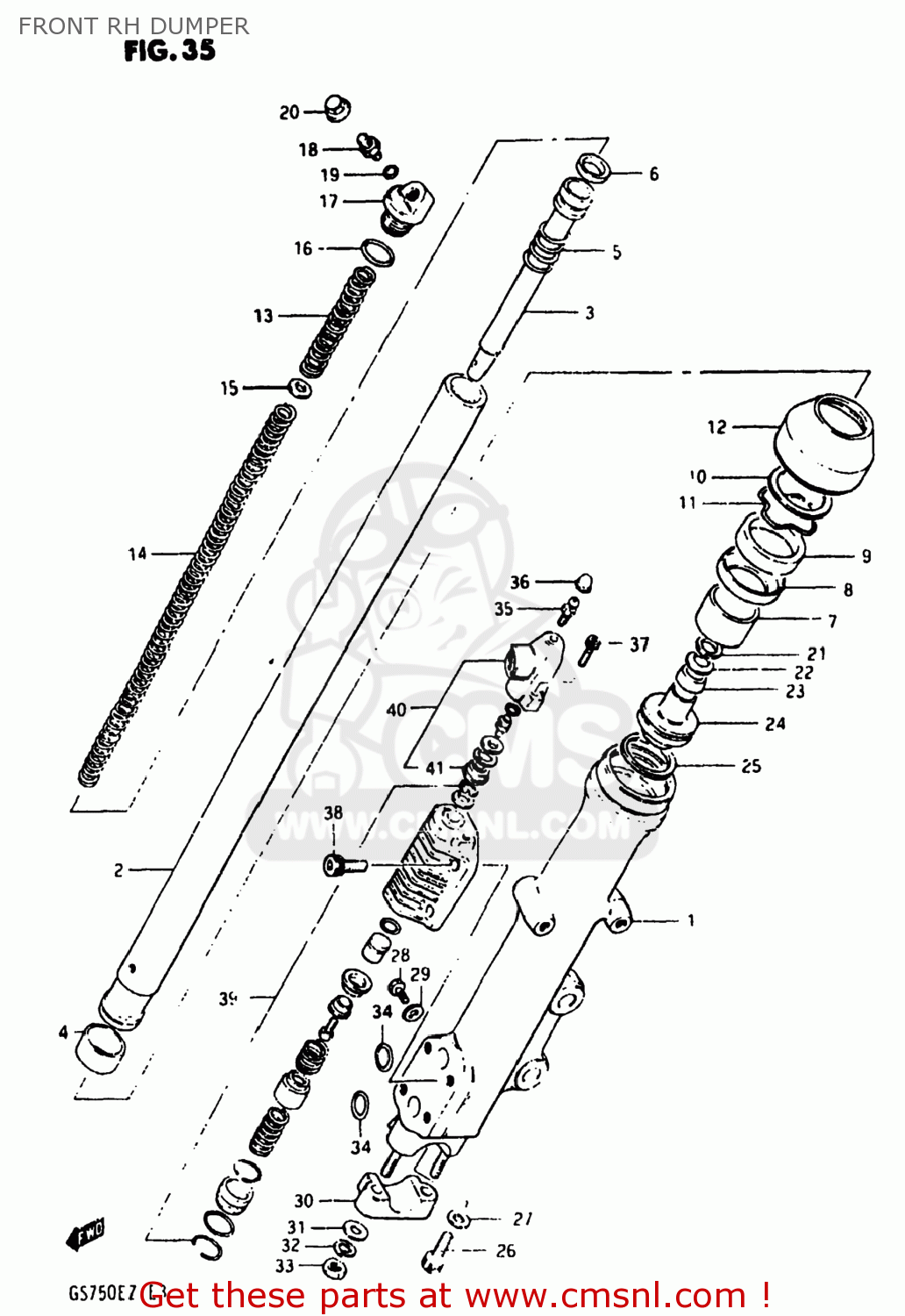

Front rh dumper diagram GS750E 1982 (Z) USA (E03)
FRONT RH DUMPER GS750E 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
5110345900
ref: 0
DAMPER ASSEMBLY,RIGHT
€ 211.50
1
5113045900
ref: 1
TUBE,FORK,OUTER,RIGHT
€ 131.00
2
5111045900
ref: 2
TUBE,FORK,INNER
€ 114.50
3
5114645900
ref: 3
CYLINDER,FRONT FORK
€ 15.50
4
5112145400
ref: 4
PISTON
€ 22.00
5
5117745030
ref: 5
SPRING,FORK REBOUND
€ 4.00
6
5119631230
ref: 6
RING
€ 7.50
7
5115245400
ref: 7
BUSH,GUIDE
€ 14.00
8
5116845031
ref: 8
51168-30B00
SPACER,SEAL
€ 5.00
9
5115334200
ref: 9
51153-19D10
OIL SEAL,FRONT FORK
€ 14.00
10
5115845440
ref: 10
RING,FR FORK
€ 3.00
11
5115645440
ref: 11
51156-01A00
CIRCLIP,FORK OIL SEAL
€ 3.50
12
5157134200
ref: 12
51571-20520
BOOT
€ 19.50
13
5117145440
ref: 13
SPRING
€ 3.50
14
5118445900
ref: 14
SPRING,FRONT FORK
€ 29.00
15
5119247200
ref: 15
WASHER,SPRING
€ 2.50
16
5111731030
ref: 16
51181-31030
O-RING
€ 3.50
17
5135145440
ref: 17
BOLT,FORK INNER TUBE
€ 17.00
18
5129345440
ref: 18
VALVE,AIR
€ 17.00
19
5111745440
ref: 19
09280-06005
O-RING
€ 2.50
20
5129445440
ref: 20
CAP
€ 9.50
21
5112634310
ref: 21
VALVE
€ 2.50
22
5112734310
ref: 22
SPRING,VALVE
€ 3.00
23
5112534310
ref: 23
VALVE,OIL LOCK PIEACE
€ 7.00
24
5119534310
ref: 24
PIECE,FRONT FORK OIL LOCK
€ 21.00
25
5112334310
ref: 25
PISTON RING,FRONT FORK
€ 10.50
26
5114748130
ref: 26
BOLT(8X27)
€ 3.50
27
5114831030
ref: 27
51148-36011
GASKET (NAS)
€ 4.00
28
0110706088
ref: 28
09100-06157
BOLT
€ 2.50
29
5118331030
ref: 29
GASKET,DRAIN,PLUG (NAS)
€ 4.00
30
5113244040
ref: 30
51132-44040-15T
HOLDER,AXLE
€ 38.50
31
0832221088
ref: 31
08322-01087
WASHER
€ 2.00
32
0832121088
ref: 32
08321-01087
LOCK WASHER
€ 2.00
33
0831012088
ref: 33
08310-00087
NUT
€ 2.00
34
5179911420
ref: 34
09280-15007
O RING,FR FORK
€ 2.00
35
5177811420
ref: 35
BREATHER
€ 8.50
36
5177911420
ref: 36
CAP
€ 4.50
37
5179711420
ref: 37
07130-05167
BOLT
€ 2.50
38
5179611420
ref: 38
07130-06167
BOLT
€ 3.00
39
5170011850
ref: 39
MODULATOR VALVE SET,FRONT
€ 92.50
40
5170011840
ref: 40
MODULATOR VALVE SET,FRONT
€ 72.00
41
5177711420
ref: 41
SEPARATOR,FRONT FORK MODULATOR
€ 5.00
