SPEEDOMETER - TACHOMETER
GS750E 1982 (Z) USA (E03)

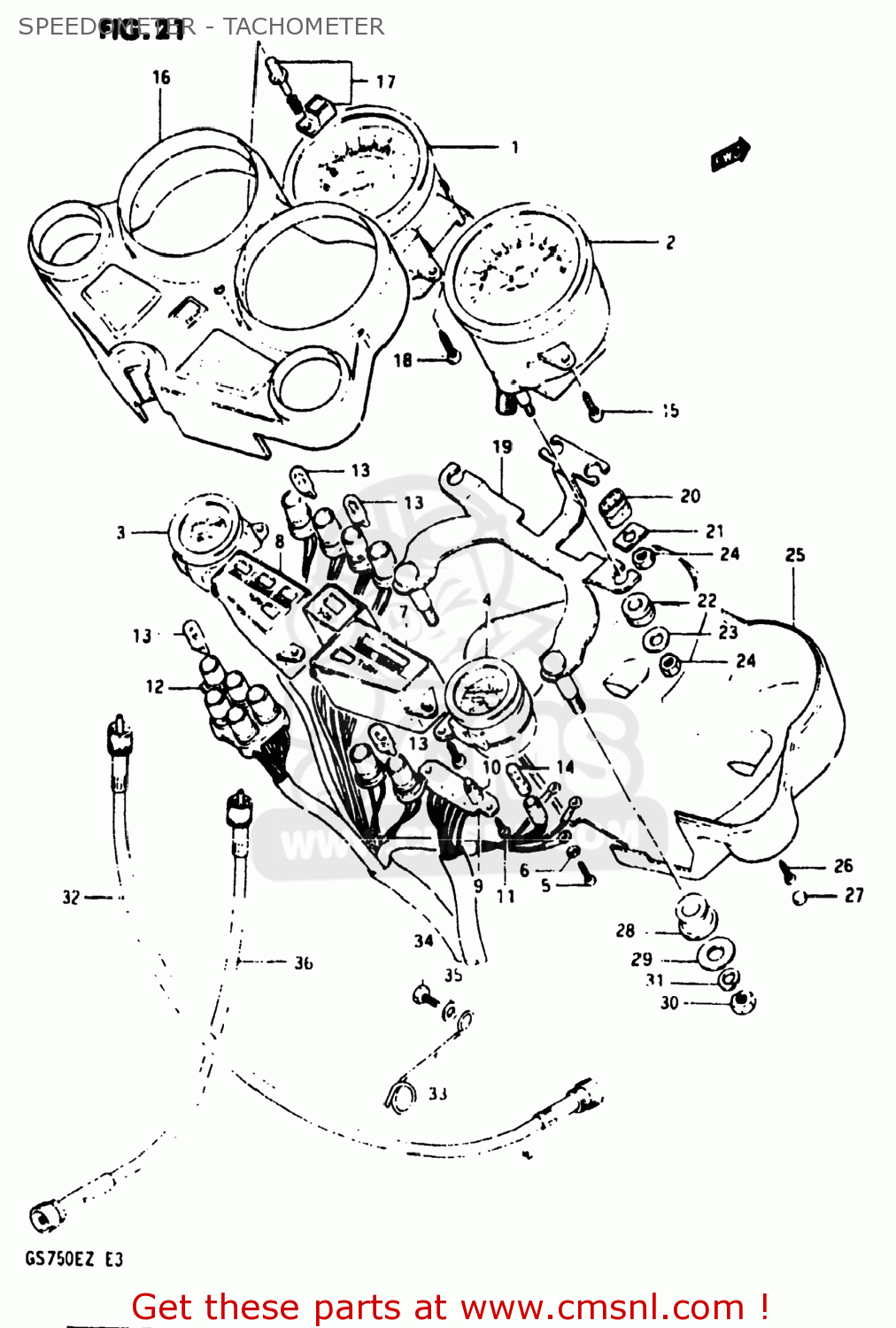

Speedometer - tachometer diagram GS750E 1982 (Z) USA (E03)
SPEEDOMETER - TACHOMETER GS750E 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
0947112023
ref: 0-1
BULB(12V2W,STANLEY,A1272J)
€ 8.50
0-2
0913204005
ref: 0-2
03112-04163
SCREW
€ 2.00
1
3411045770
ref: 1
34110-49511
SPEEDOMETER ASSEMBLY
€ 216.50
2
3421045780
ref: 2
34210-49500
TACHOMETER
€ 333.50
3
3432045720
ref: 3
METER,FUEL
€ 81.50
4
3473045750
ref: 4
34730-45752
METER,OIL TEMPERATURE
€ 68.00
5
0211203068
ref: 5
02112-0306B
SCREW
€ 2.00
6
0832221038
ref: 6
08322-01037
WASHER
€ 2.00
7
3633045720
ref: 7
CASE ASSEMBLY,PILOT LAMP
€ 34.50
8
3636045720
ref: 8
CASE ASSEMBLY,PILOT LAMP
€ 18.00
9
3645345720
ref: 9
SOCKET,GEAR INDICATOR
€ 26.50
10
0947112071
ref: 10
BULB(14V1.12W)
€ 5.00
11
3645634510
ref: 11
09132-03501
SCREW,GEAR INDICATOR
€ 2.00
12
3417045720
ref: 12
SOCKET,SPEEDOMETER
€ 63.00
13
0947112028
ref: 13
BULB(12V3.4W,T10)
€ 3.50
16
3415045720
ref: 16
HOOD,METER
€ 105.00
17
3412445720
ref: 17
KNOB,TRIP METER
€ 8.50
18
0321104168
ref: 18
03112-04163
SCREW
€ 1.50
19
3495045720
ref: 19
BRACKET,COMBINATION METER
€ 41.00
20
3499545720
ref: 20
CUSHION,METER
€ 3.00
21
3418245720
ref: 21
WASHER,METER
€ 3.50
22
3499645720
ref: 22
34189-32B00
CUSHION,METER
€ 5.00
23
3418130520
ref: 23
09160-05037
WASHER,METER
€ 1.50
24
0831022058
ref: 24
08310-00057
NUT
€ 2.50
25
3419345720
ref: 25
COVER,METER,UNDER
€ 62.00
26
0311104128
ref: 26
03111-0412A
SCREW
€ 1.50
27
3419845720
ref: 27
CAP,METER LOWER CASE
€ 3.50
28
3495631001
ref: 28
CUSHION,METER BRACKET
€ 4.50
29
0916008002
ref: 29
09160-08135
WASHER (8.5X29X1.6)
€ 2.00
30
0831012088
ref: 30
08310-00087
NUT
€ 2.00
31
0832121088
ref: 31
08321-01087
LOCK WASHER
€ 2.00
32
3491034400
ref: 32
34910-45421
CABLE ASSEMBLY,SPEEDOMETER
€ 19.00
33
3493845100
ref: 33
CLAMP,SPEEDOMETER CABLE
€ 14.50
34
0110706168
ref: 34
01500-06167
BOLT, UPPER
€ 3.00
35
0832221068
ref: 35
08322-01067
WASHER
€ 2.00
36
3494033211
ref: 36
34940-38300
CABLE ASSEMBLY,TACHOMETER
€ 40.00
