CYLINDER

GS750E 1982 (Z) USA (E03)

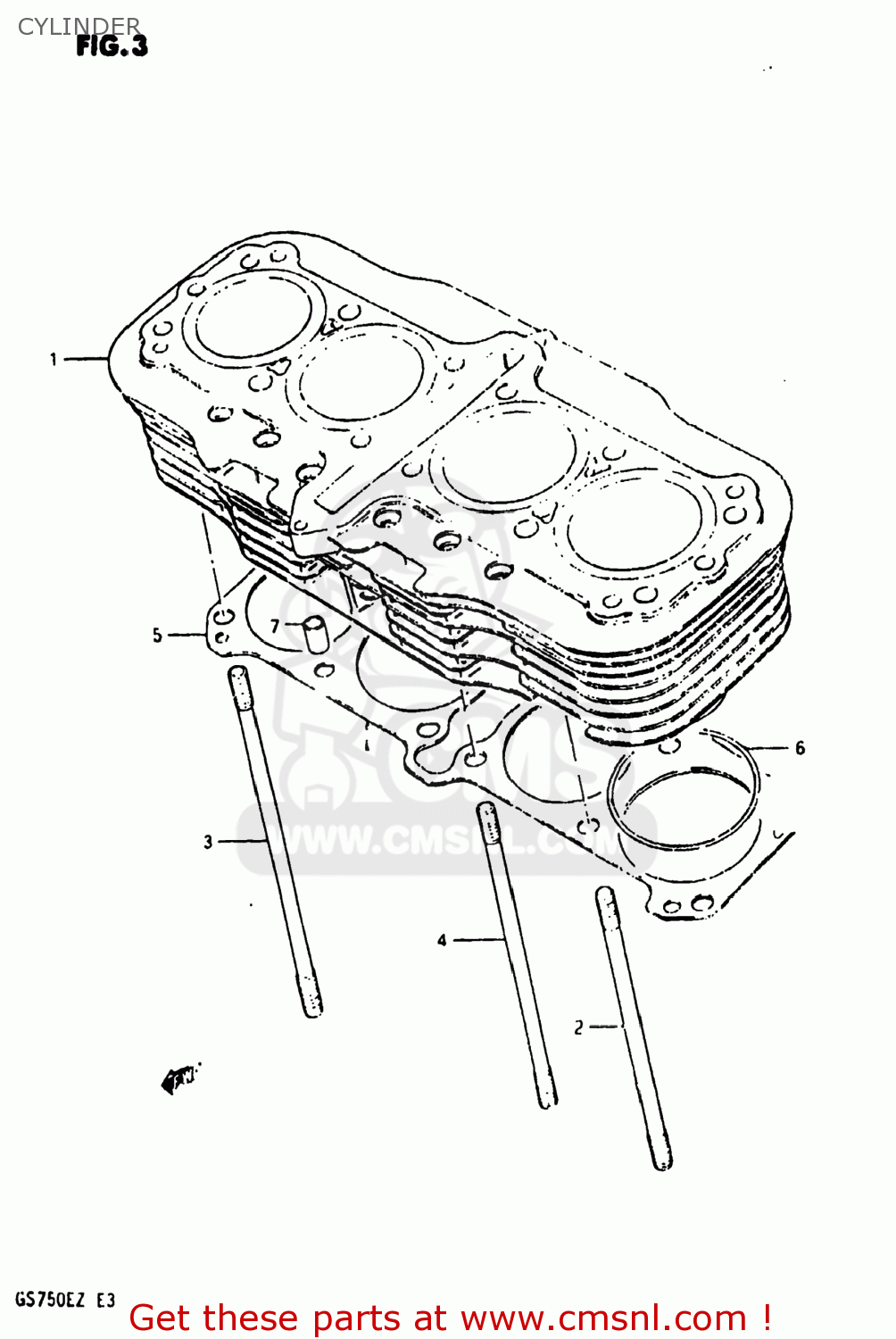

Cylinder diagram GS750E 1982 (Z) USA (E03)

CYLINDER GS750E 1982 (Z) USA (E03)

CYLINDER GS750E 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121045420
ref: 1

CYLINDER

€ 785.50

2

0910810032
ref: 2

STUD

€ 5.50

3

0910810034
ref: 3
09108-10069

STUD

€ 7.00

4

0910810033
ref: 4
09108-10096

STUD

€ 12.50

5

1124145401
ref: 5
11241-45401-H17

GASKET,CYLINDER (MCA)

€ 23.50

6

0928070001
ref: 6

O RING(D:2,ID:70)

€ 7.50

7

0920613006
ref: 7
09206-13017

PIN

€ 9.00
