HEADLAMP HOUSING - FRONT FENDER

GS750E 1982 (Z) USA (E03)

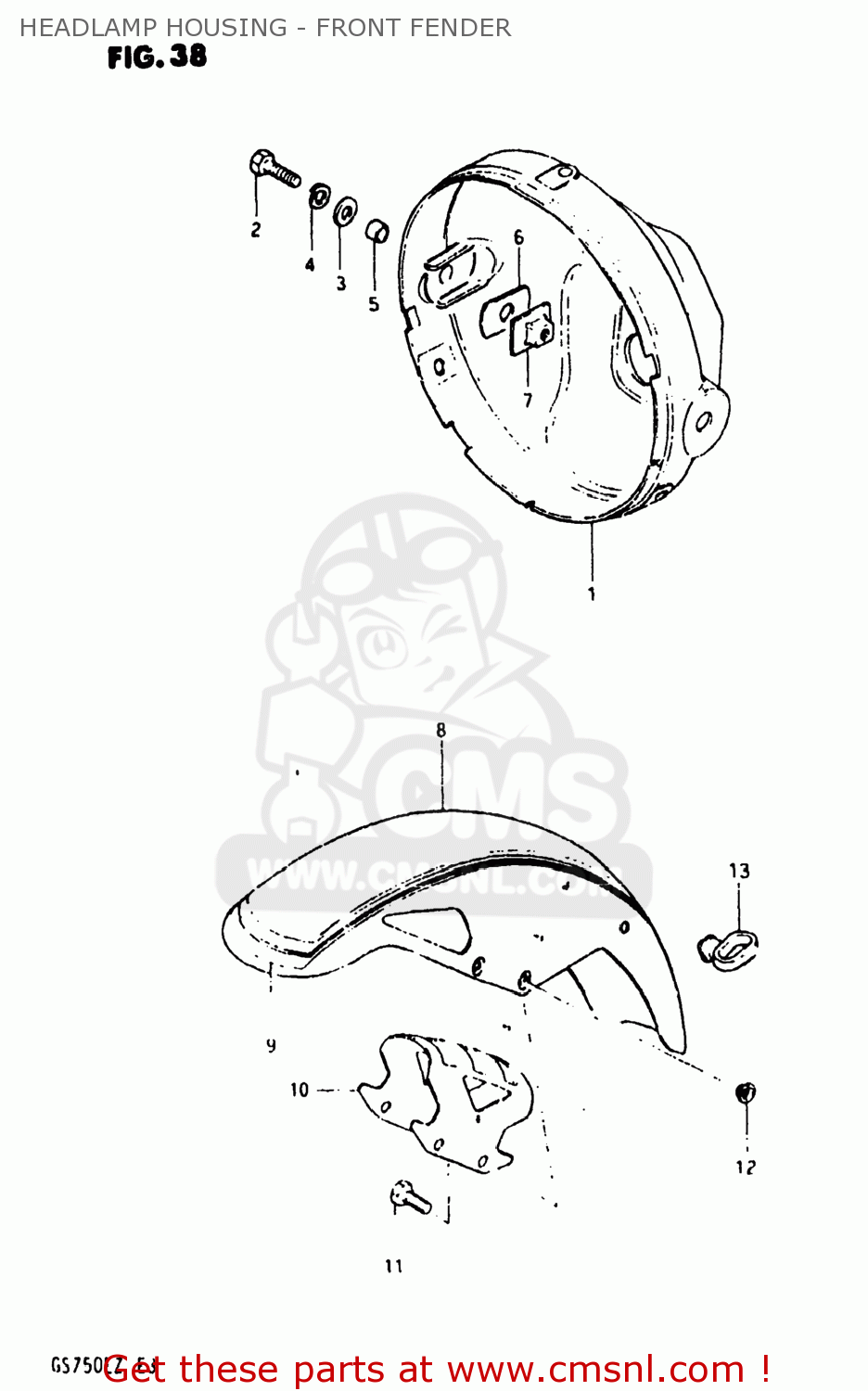

Headlamp housing - front fender diagram GS750E 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

5181134500291
ref: 1
51811-34501-019

HOUSING,HEADLAMP

€ 60.50

0120408257
ref: 2

BOLT

€ 2.00

0832211088
ref: 3
08322-01087

WASHER

€ 2.00

0832121088
ref: 4
08321-01087

LOCK WASHER

€ 2.00

0918008030
ref: 5
09180-08187

SPACER (8.8X12X7)

€ 3.50

0932912002
ref: 6

CUSHION

€ 3.00

5186045000
ref: 7

PLATE,HEADLAMP HOUSING

€ 2.00

8-1

531104546013Z
ref: 8-1

FENDER,FRONT

€ 107.00

8-2

531104546010S
ref: 8-2

FENDER,FRONT

€ 85.00

681504541081P
ref: 9

TAPE SET,REAR FENDER

€ 29.50

5311445900
ref: 10

BRACE,FRONT FENDER

€ 19.00

0910008135
ref: 11
09100-08215

BOLT 8X16

€ 3.00

0916908032
ref: 12

WASHER

€ 11.50

5862121203
ref: 13
58621-21204

GUIDE,CABLE

€ 7.50
