CARBURETOR
GS850G 1982 (Z) GENERAL EXPORT (E01)

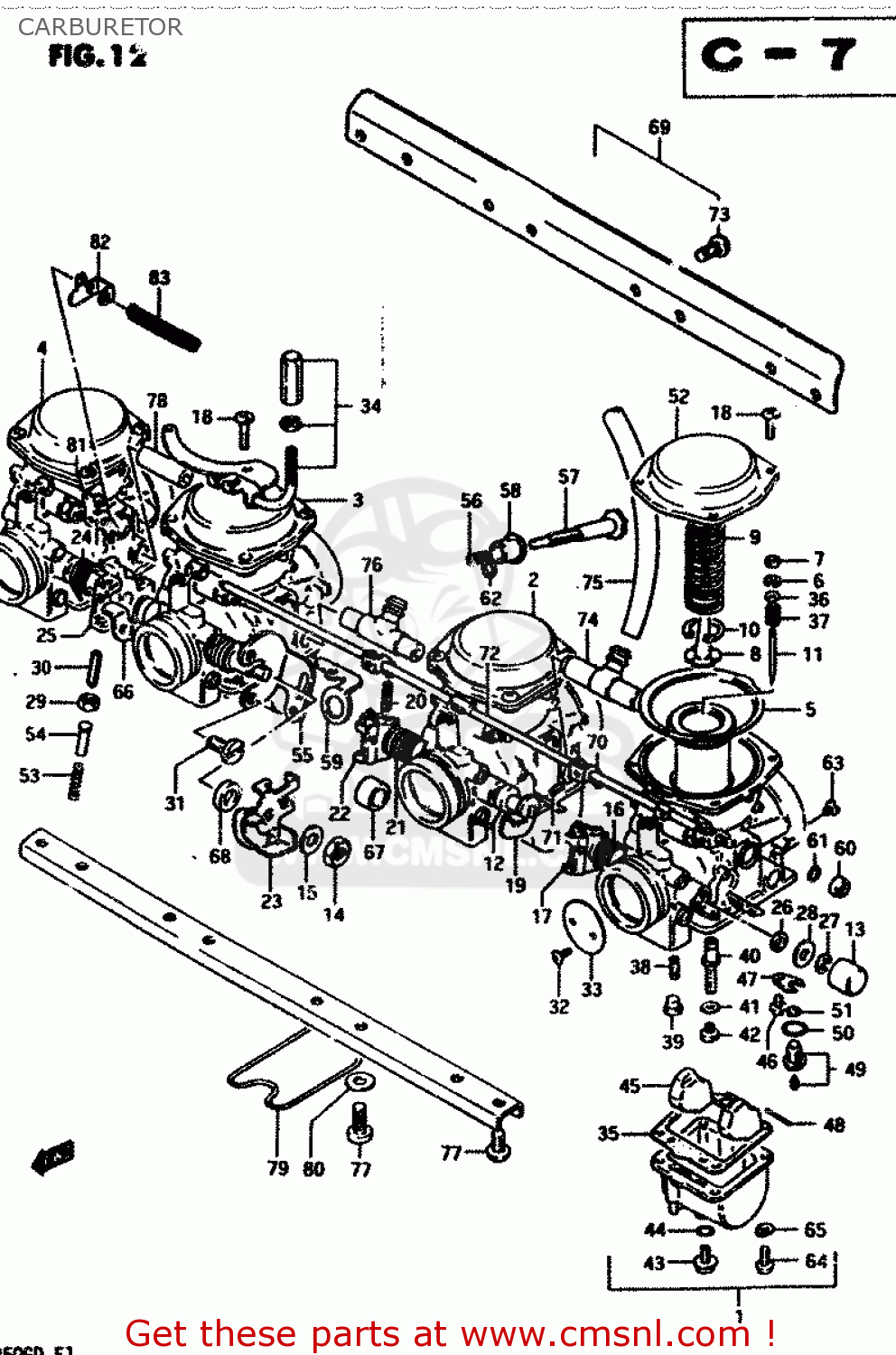

Carburetor diagram GS850G 1982 (Z) GENERAL EXPORT (E01)
CARBURETOR GS850G 1982 (Z) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
1320145170
ref: 1
LH
CARBURETOR, NO.1
€ 0.00
2
1320245170
ref: 2
ML
CARBURETOR, NO.2
€ 0.00
3
1320345170
ref: 3
MR
CARBURETOR, NO.3
€ 0.00
4
1320445170
ref: 4
RH
CARBURETOR, NO.4
€ 0.00
5
1350045110
ref: 5
DIAPHRAGM
€ 170.50
6
1339431210
ref: 6
CLIP,NEEDLE
€ 3.50
7
1338744030
ref: 7
RING
€ 5.00
8
1338944030
ref: 8
HOLDER,GUIDE
€ 10.50
9
1350344080
ref: 9
SPRING
€ 11.50
10
1358144030
ref: 10
E RING
€ 6.50
11
1338345120
ref: 11
NEEDLE, JET (5057-2)
€ 14.00
12
1355747070
ref: 12
ML,MR
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
13
1357847070
ref: 13
RH,LH
CAP
€ 5.50
14
0831012088
ref: 14
MR
NUT
€ 2.00
15
1360647070
ref: 15
MR
WASHER
€ 3.00
16
1357347070
ref: 16
LH
SPRING,THROTTLE SHAFT
€ 6.00
17
1355047070
ref: 17
LH
SHAFT,THROTTLE
€ 44.50
18
0211105158
ref: 18
ML:1.MR:2
SCREW
€ 2.50
19
1355045110
ref: 19
ML
SHAFT ASSEMBLY
€ 0.00
20
1356347070
ref: 20
LH,ML,RH
PIN,THROTTLE SHAFT
€ 0.00
21
1357345110
ref: 21
ML
SPRING,THROTTLE SHAFT
€ 0.00
22
1355347070
ref: 22
ML
LEVER,THROTTLE SHAFT
€ 0.00
23
1355547070
ref: 23
MR
LEVER ASSEMBLY,THROTTLE
€ 0.00
24
1357347080
ref: 24
MR,RH
SPRING,THROTTLE SHAFT
€ 0.00
25
1355047090
ref: 25
RH
SHAFT,THROTTLE
€ 0.00
26
1355631210
ref: 26
SEAL
€ 4.00
27
1361744080
ref: 27
LH,RH
E RING
€ 3.50
28
1355747070
ref: 28
LH,RH
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
29
1360747070
ref: 29
LH,ML,RH
NUT
€ 4.00
30
1360547080
ref: 30
LH,ML,RH
SCREW
€ 7.00
31
1360545420
ref: 31
MR
SCREW
€ 2.00
32
1360444080
ref: 32
SCREW
€ 3.50
33
1355145110
ref: 33
VALVE,THROTTLE
€ 0.00
34
1362145160
ref: 34
MR
BRACKET,THROTTLE CABLE
€ 28.00
35
1325144080
ref: 35
GASKET,FLOAT CHAMBER (NAS)
€ 9.50
36
1338244030
ref: 36
WASHER
€ 3.50
37
1338844030
ref: 37
SPRING
€ 6.00
38
0949242005
ref: 38
JET, PILOT (42.5)
€ 8.50
39
1335744080
ref: 39
PLUG,NEEDLE JET
€ 4.50
40
0949400270
ref: 40
JET, NEEDLE (X-6)
€ 0.00
41
1333244080
ref: 41
WASHER,NEEDLE NOZZLE
€ 2.50
42
0949123011
ref: 42
JET,MAIN(115)
€ 10.50
43
1324744080
ref: 43
PLUG,DRAIN
€ 9.50
44
1324644080
ref: 44
GASKET (NAS)
€ 3.50
45
1325044080
ref: 45
FLOAT
€ 31.00
46
0211204068
ref: 46
SCREW 4X6
€ 2.00
47
1337311400
ref: 47
PLATE,NEEDLE VALVE FITING
€ 7.00
48
1325492311
ref: 48
PIN,FLOAT
€ 2.00
49
1337011400
ref: 49
VALVE ASSEMBLY,NEEDLE
€ 40.50
50
1337444080
ref: 50
O-RING,NEEDLE VALVE
€ 6.00
51
1337665010
ref: 51
FILTER
€ 6.50
52
1350245110
ref: 52
COVER,DIAPHRAGM
€ 42.00
53
1326844010
ref: 53
LH,ML,RH
SPRING,THROTTLE SCREW
€ 3.00
54
1357547070
ref: 54
LH,ML,RH
PIN,THROTTLE LEVER
€ 2.50
55
1362745110
ref: 55
MR
BRACKET,THROTTLE ADJUST
€ 0.00
56
1327193011
ref: 56
MR
SPRING
€ 4.50
57
1326747070
ref: 57
MR
SCREW
€ 21.00
58
1327631210
ref: 58
MR
BUSH
€ 4.00
59
1362744090
ref: 59
MR
BRACKET,THROTTLE ADJUST
€ 0.00
60
1368231210
ref: 60
CAP,STARTER VALVE
€ 5.00
61
1327847090
ref: 61
O RING
€ 2.00
62
1343247090
ref: 62
WASHER
€ 2.50
63
0949340001
ref: 63
JET,AIR
€ 11.50
64
0211205168
ref: 64
SCREW
€ 2.50
65
0832121058
ref: 65
LOCK WASHER
€ 2.00
66
1355045120
ref: 66
MR
SHAFT ASSEMBLY
€ 0.00
67
1357445110
ref: 67
ML
RING
€ 3.50
68
1357445120
ref: 68
MR
RING
€ 2.50
69
1321045160
ref: 69
CARBURETOR ASSEMBLY
€ 0.00
70
1342244080
ref: 70
LEVER
€ 10.00
71
1360547070
ref: 71
SCREW
€ 5.50
72
1341045110
ref: 72
SHAFT,STARTER
€ 0.00
73
0214205128
ref: 73
SCREW
€ 1.50
74
1368547070
ref: 74
NIPPLE
€ 25.00
75
1368349160
ref: 75
HOSE,CARBURETOR
€ 26.00
76
1368545110
ref: 76
NIPPLE
€ 31.50
77
0211206128
ref: 77
SCREW 6X12
€ 2.00
78
1368547090
ref: 78
NIPPLE
€ 16.50
79
1361945110
ref: 79
CLAMP
€ 0.00
80
1361549200
ref: 80
WASHER
€ 0.00
81
1341349220
ref: 81
LEVER,CHOKE CABLE
€ 4.00
82
1342149220
ref: 82
PLATE,CHOKE CABLE
€ 3.00
83
1343749220
ref: 83
SPRING,CHOKE CABLE
€ 0.00
