ELECTRICAL (MODEL D)

GS850G 1982 (Z) GENERAL EXPORT (E01)

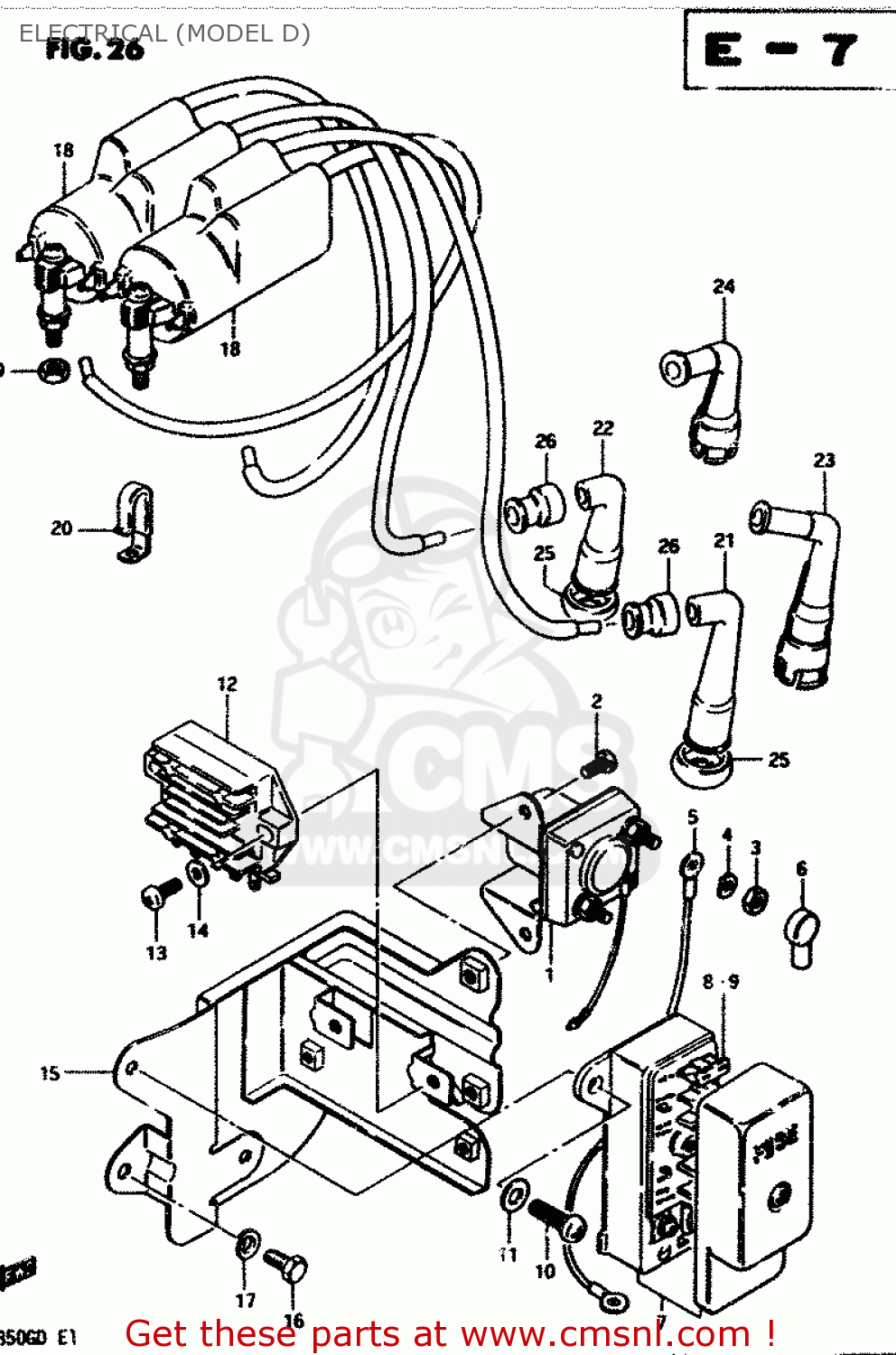

Electrical (model d) diagram GS850G 1982 (Z) GENERAL EXPORT (E01)

ELECTRICAL (MODEL D) GS850G 1982 (Z) GENERAL EXPORT (E01)
ELECTRICAL (MODEL D) GS850G 1982 (Z) GENERAL EXPORT (E01)
ELECTRICAL (MODEL D) GS850G 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
RELAY ASSY,STARTING MOTOR
3180037020
€ 105.00
2
0211206108
ref: 2
SCREW
0211206108
€ 1.50
3
0831022068
ref: 3
NUT 6MM
€ 2.50
4
0832121068
ref: 4
LOCK WASHER
0832121068
€ 2.50
5
3385049410
ref: 5
CABLE,STARTING MOTOR
€ 24.00
6-1
3186135100
ref: 6-1
CAP,STARTER RELAY
3186135100
€ 4.50
6-2
3186149400
ref: 6-2
HAVE SLIT
CAP,STARTER RELAY
€ 0.00
7
3674049400
ref: 7
BOX ASSEMBLY,FUSE
€ 69.50
8
0948110101
ref: 8
FUSE(10A)
0948110101
€ 2.50
9
0948115101
ref: 9
FUSE(15A)
0948115101
€ 1.50
10
0211206128
ref: 10
SCREW 6X12
0211206128
€ 2.00
11
0832221068
ref: 11
WASHER
0832221068
€ 2.00
12
3280044130
ref: 12
RECTIFIER ASSEMBLY
3280044130
€ 235.00
13
0211206208
ref: 13
SCREW
€ 2.00
14
0832221068
ref: 14
WASHER
0832221068
€ 2.00
15
4741045120
ref: 15
HOLDER COMP,ELECTRONIC PARTS
€ 0.00
16
0110706128
ref: 16
BOLT
0110706128
€ 2.00
17
0832121068
ref: 17
LOCK WASHER
0832121068
€ 2.50
18
3341034210
ref: 18
COIL ASSEMBLY,IGNITION
€ 182.00
19
0831011068
ref: 19
NUT
0831011068
€ 2.50
20
0940306307
ref: 20
CLAMP
0940306307
€ 4.50
21
3351045010
ref: 21
CAP ASSY,SPARK PLUG
3351045010
€ 23.00
22
3351043010
ref: 22
CAP,SPARK PLUG
3351043010
€ 11.50
23
3351045600
ref: 23
E2,E4,E17,E21
CAP,SPARK PLUG
3351045600
€ 47.00
24
3351044600
ref: 24
E2,E4,E17,E21
CAP, SPARK PLUG (S)
3351044600
€ 40.00
25
3354169010
ref: 25
SEAL,SPARK PLUG
3354169010
€ 5.00
26
3354298000
ref: 26
SEAL,SPARK PLU
3354298000
€ 4.50
