FRAME COVER (MODEL Z)

GS850G 1982 (Z) GENERAL EXPORT (E01)

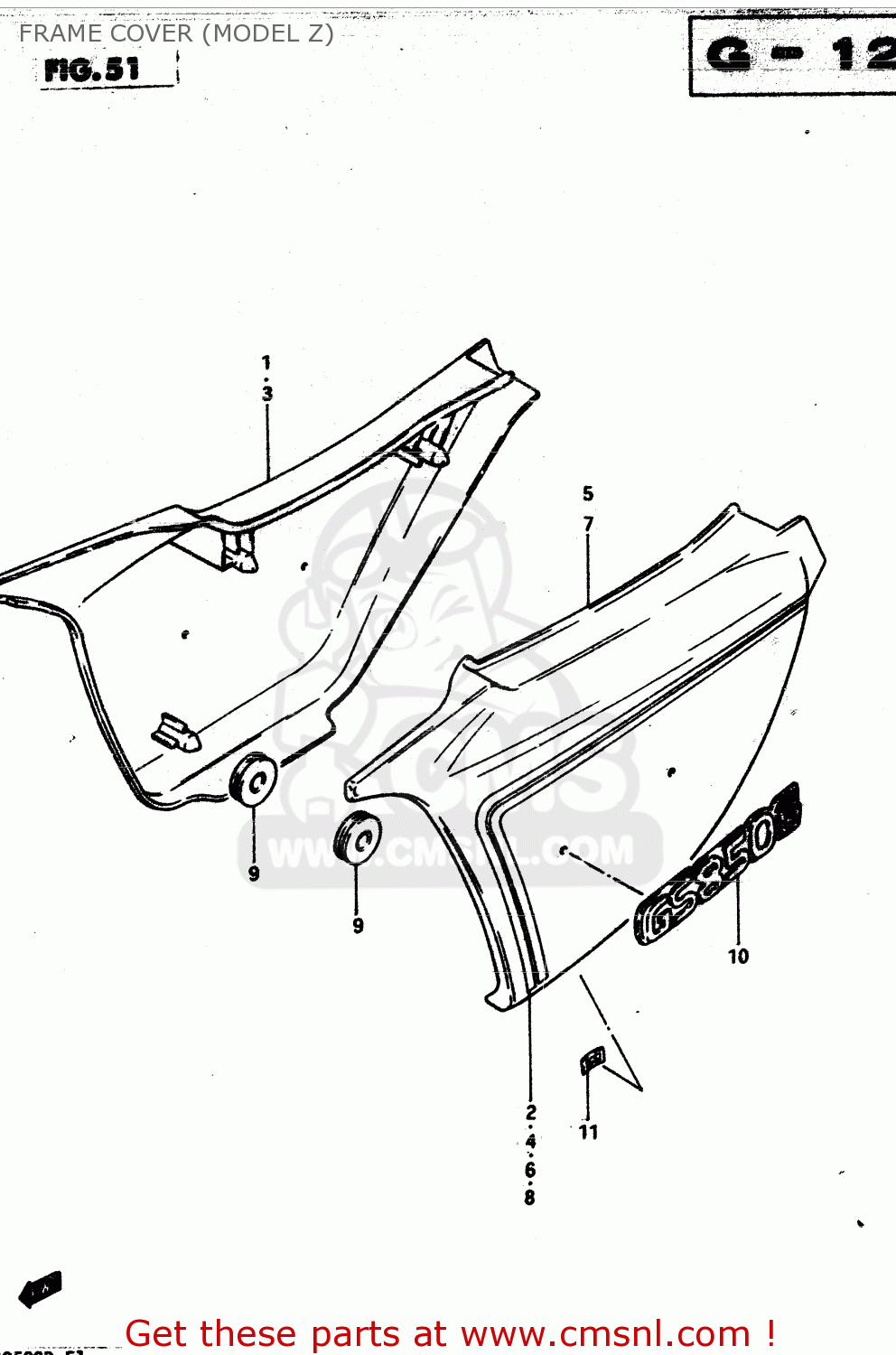

Frame cover (model z) diagram GS850G 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

4711045700019
ref: 1-1

COVER, FRAME RH (BLACK)

€ 76.50

1-2

471104570000J
ref: 1-2

COVER, FRAME RH (RED)

€ 76.50

681304570062F
ref: 2

TAPE, RH

€ 0.00

471104570012F
ref: 3

COVER, FRAME RH (BLUE)

€ 76.50

681304570083Y
ref: 4

TAPE, RH

€ 0.00

5-1

4721045700019
ref: 5-1

COVER, FRAME LH (BLACK)

€ 76.50

5-2

472104570000J
ref: 5-2

COVER,FRAME LH

€ 76.50

681404570062F
ref: 6

TAPE, LH

€ 0.00

472104570012F
ref: 7

COVER, FRAME LH (BLUE)

€ 76.50

681404570083Y
ref: 8

TAPE, LH

€ 0.00

0932008018
ref: 9

CUSHION

€ 4.00

6813145710
ref: 10

EMBLEM

€ 24.50

0914803002
ref: 11

NUT

€ 3.00
