CRANKCASE (MODEL D)

GS850G 1982 (Z) GENERAL EXPORT (E01)

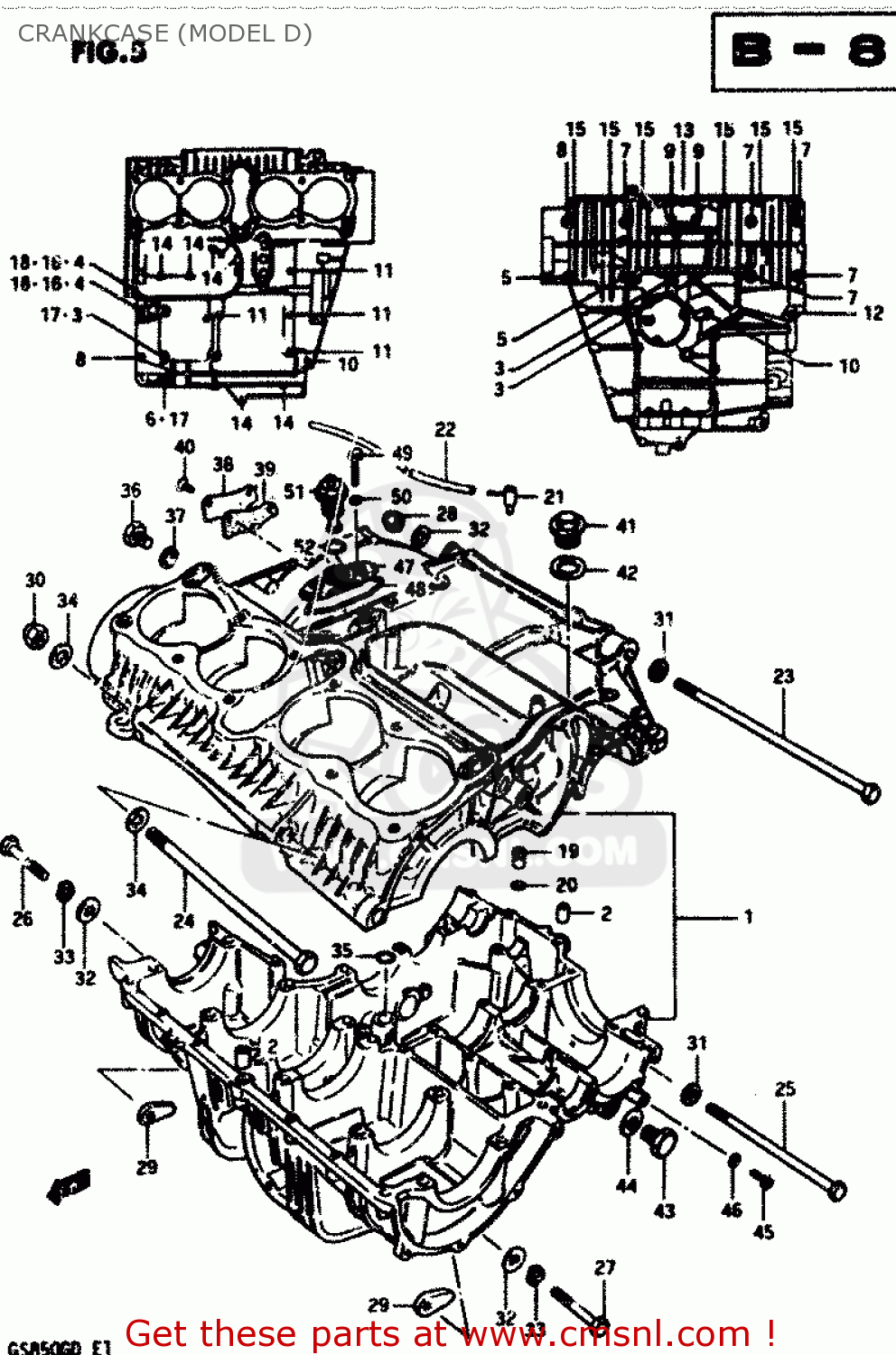

Crankcase (model d) diagram GS850G 1982 (Z) GENERAL EXPORT (E01)

CRANKCASE (MODEL D) GS850G 1982 (Z) GENERAL EXPORT (E01)
CRANKCASE (MODEL D) GS850G 1982 (Z) GENERAL EXPORT (E01)
CRANKCASE (MODEL D) GS850G 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
1130049860
ref: 1
CRANKCASE SET
€ 1,730.00
2
0920613001
ref: 2
PIN
0920613001
€ 2.50
3
0910308094
ref: 3
BOLT
€ 4.50
4
0910308092
ref: 4
BOLT 8X110
€ 0.00
5
0910308061
ref: 5
BOLT
€ 3.50
6
0910308093
ref: 6
BOLT
€ 4.00
7
0151708905
ref: 7
BOLT (8X90)
€ 3.50
8
0151708655
ref: 8
BOLT (8X65)
€ 3.00
9
0151708605
ref: 9
BOLT 8X60
€ 3.50
10
0151706905
ref: 10
BOLT (6X90)
€ 3.50
11
0151706755
ref: 11
BOLT (6X75)
€ 2.50
12
0151706555
ref: 12
BOLT 6X55
€ 2.00
13
0151706505
ref: 13
BOLT 6X50
0151706505
€ 2.00
14
0151706455
ref: 14
BOLT (6X45)
€ 2.50
15
0151706355
ref: 15
BOLT
€ 2.50
16
0831311088
ref: 16
NUT
0831311088
€ 2.50
17
0831616085
ref: 17
NUT 8MM
0831616085
€ 3.00
18
0916808008
ref: 18
GASKET 8.2X14X1 (NAS)
0916808008
€ 1.00
19
0936405005
ref: 19
UNION
0936405005
€ 3.00
20
0928003003
ref: 20
O RING(D:1.05,ID:3.1)
0928003003
€ 2.50
21
2482145100
ref: 21
BPLUG,BEVEL GEAR BREATHER
2482145100
€ 7.00
22
0934302009
ref: 22
HOSE
€ 12.00
23
0910010144
ref: 23
BOLT
€ 15.50
24
6121139000
ref: 24
SHAFT,REAR SWING ARM
6121139000
€ 15.00
25
0910010137
ref: 25
BOLT
€ 10.50
26
0110710605
ref: 26
BOLT (10X60)
€ 3.50
27
0110710505
ref: 27
BOLT (10X50)
€ 7.00
28
0915910028
ref: 28
NUT (10MM)
€ 2.50
29
0915910020
ref: 29
NUT
0915910020
€ 7.50
30
0831921125
ref: 30
NUT
0831921125
€ 3.50
31
0916010054
ref: 31
WASHER (10.5X20X3.2)
€ 2.00
32
0832211105
ref: 32
WASHER
€ 2.50
33
0832121105
ref: 33
LOCK WASHER
€ 3.00
34
0832211125
ref: 34
WASHER
€ 2.00
35
0928013001
ref: 35
O RING(D:3.2,ID:12.9)
0928013001
€ 4.00
36
0924714012
ref: 36
PLUG (14X12)
0924714012
€ 3.50
37
0916814004
ref: 37
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
38
1139445000
ref: 38
CAP,OIL GALLERY
1139445000
€ 6.50
39
1149745000
ref: 39
GASKET,OIL GALLERY (MCA)
1149745000
€ 13.00
40
0212206168
ref: 40
SCREW
0212206168
€ 2.00
41
0924720002
ref: 41
PLUG
0924720002
€ 4.50
42
0916820004
ref: 42
GASKET
€ 1.50
43
0924714019
ref: 43
PLUG
€ 5.50
44
0916814004
ref: 44
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
45
0912806004
ref: 45
SCREW(6X10)
0912806004
€ 1.50
46
0916806009
ref: 46
GASKET (NAS)
0916806009
€ 2.00
47
1644545010
ref: 47
HOUSING,OIL PRESSURE SWITCH
1644545010
€ 28.00
48
1644845000
ref: 48
O RING,PRESSURE SWITCH HOUSING
1644845000
€ 10.50
49
0151706255
ref: 49
BOLT
€ 2.50
50
0916806009
ref: 50
GASKET (NAS)
0916806009
€ 2.00
51
3782045060
ref: 51
SWITCH ASSEMBLY
3782045060
€ 30.00
52
0928019001
ref: 52
O RING(D:1.9,ID:18.8)
0928019001
€ 1.50
