FUEL COCK
GS850G 1982 (Z) GENERAL EXPORT (E01)

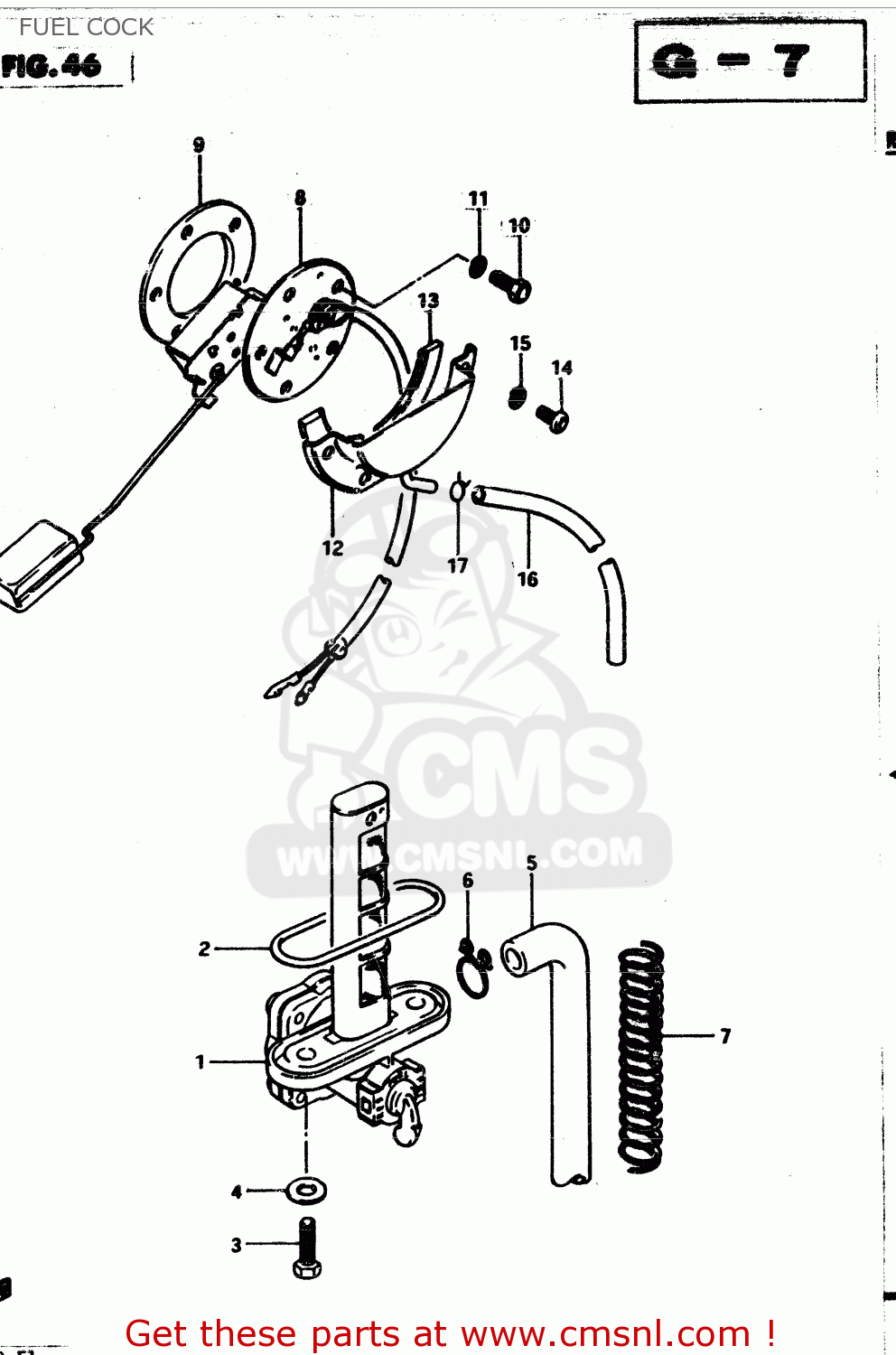

Fuel cock diagram GS850G 1982 (Z) GENERAL EXPORT (E01)
FUEL COCK GS850G 1982 (Z) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
4430045370
ref: 1
COCK ASSEMBLY,FUEL
€ 104.50
2
4434849170
ref: 2
O RING
€ 3.50
3
0912806006
ref: 3
BOLT(6X20)
€ 2.00
4
0916806010
ref: 4
GASKET
€ 2.00
5
0934307073
ref: 5
HOSE
€ 17.50
6
0940110403
ref: 6
CLIP
€ 7.00
7
0944013018
ref: 7
SPRING
€ 14.50
8
3481049400
ref: 8
GAUGE ASSEMBLY,FUEL LEVEL
€ 65.00
9
3482545100
ref: 9
GASKET,FUEL LEVEL GAUGE (NAS)
€ 7.00
10
0110405108
ref: 10
BOLT
€ 1.50
11
0832121058
ref: 11
LOCK WASHER
€ 2.00
12
3488534500
ref: 12
PLATE,FUEL DRAIN
€ 20.50
13
3488834500
ref: 13
GASKET (NAS)
€ 8.50
14
0211205088
ref: 14
SCREW
€ 2.00
15
0832121058
ref: 15
LOCK WASHER
€ 2.00
16
0934305165
ref: 16
HOSE,FUEL
€ 13.00
17
0940108402
ref: 17
CLIP
€ 1.50
