REAR MASTER CYLINDER

GS850G 1982 (Z) GENERAL EXPORT (E01)

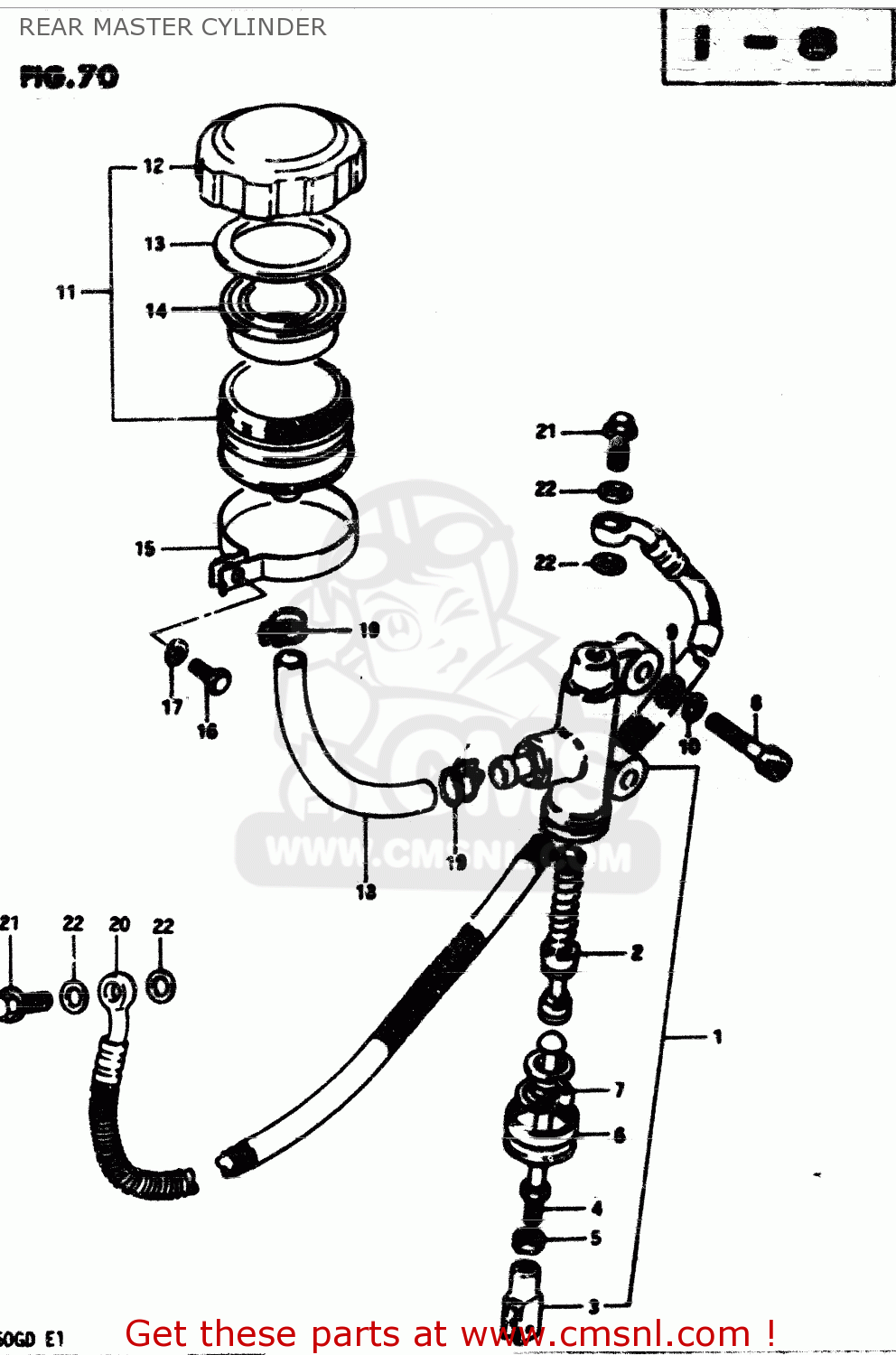

Rear master cylinder diagram GS850G 1982 (Z) GENERAL EXPORT (E01)

REAR MASTER CYLINDER GS850G 1982 (Z) GENERAL EXPORT (E01)

REAR MASTER CYLINDER GS850G 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

6960015302
ref: 1

CYLINDER ASSY, REAR MASTER

€ 0.00

2

6960045820
ref: 2

PISTON/CUP SET

€ 53.00

3

6969234300
ref: 3

YOKE

€ 11.00

4

6967045301
ref: 4

ROD,REAR MASTER CYLINDER

€ 13.50

5

6969334300
ref: 5

NUT,MASTER CYLINDER

€ 1.50

6

6969145001
ref: 6

BOOT

€ 6.50

7

5116270040
ref: 7

CIRCLIP

€ 3.00

8

0910608013
ref: 8

BOLT

€ 3.00

9

0832211088
ref: 9

WASHER

€ 2.00

10

0832131088
ref: 10

WASHER,LOCK,8.

€ 2.00

11

6974047001
ref: 11

TANK ASSEMBLY,RESERVOIR

€ 41.00

12

5966918605
ref: 12

CAP

€ 16.50

13

5966818441
ref: 13

PLATE,DIAPHRAGM

€ 3.50

14

5966718441
ref: 14

DIAPHRAGM

€ 8.50

15-1

0940251601
ref: 15-1
MODEL Z

CLAMP

€ 6.50

15-2

0940251602
ref: 15-2
MODEL D

CLAMP

€ 6.50

16

0110706168
ref: 16

BOLT, UPPER

€ 3.00

17

0832121068
ref: 17

LOCK WASHER

€ 2.50

18

6973145300
ref: 18

HOSE,RESERVOIR TANK

€ 3.50

19

0940016302
ref: 19

CLAMP

€ 4.50

20

6948049400
ref: 20

HOSE,REAR BRAKE

€ 107.00

21

0936010007
ref: 21

BOLT,UNION

€ 6.50

22

0916110005
ref: 22

WASHER

€ 2.00
