STARTING MOTOR

GS850G 1982 (Z) GENERAL EXPORT (E01)

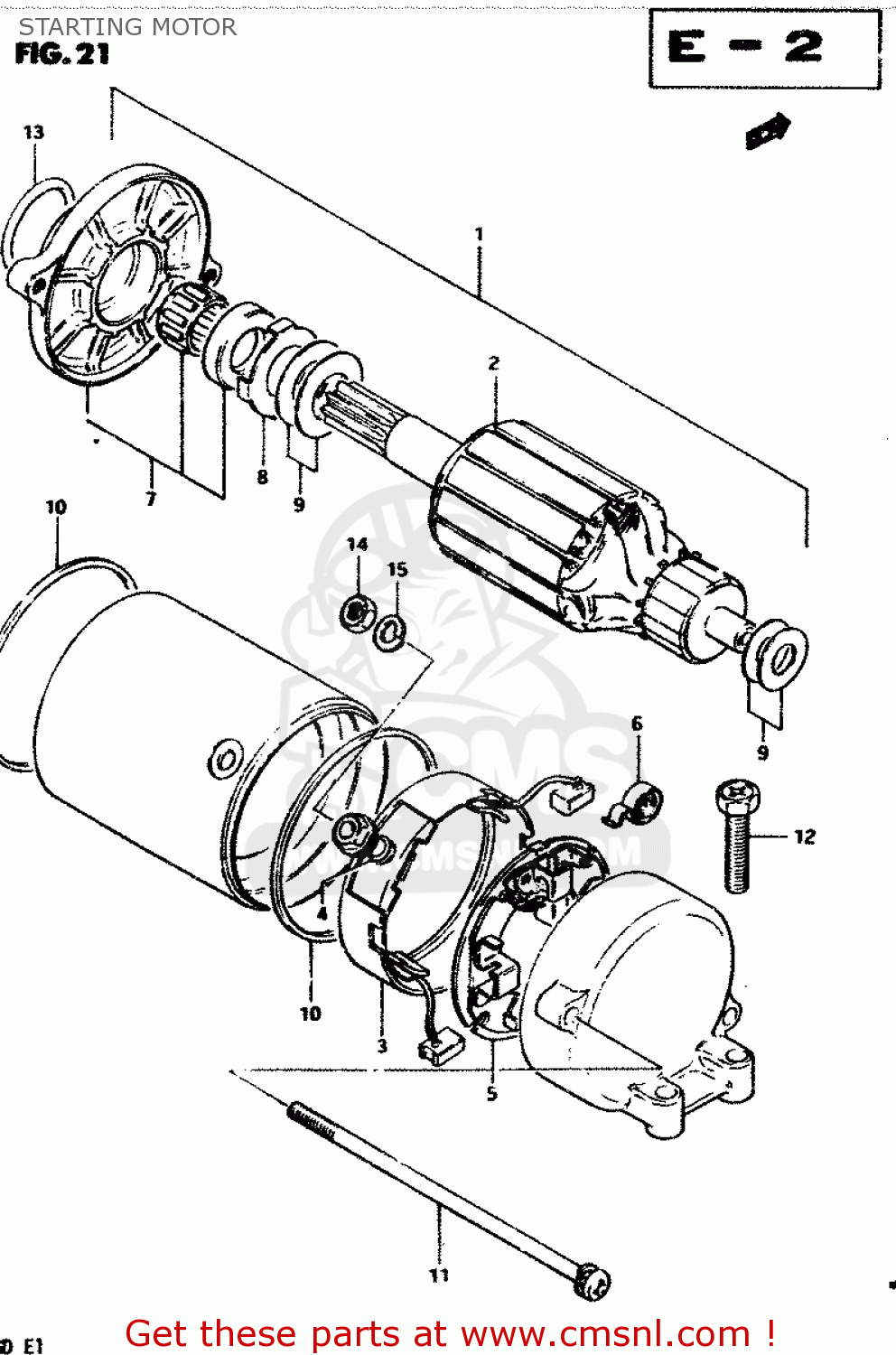

Starting motor diagram GS850G 1982 (Z) GENERAL EXPORT (E01)

STARTING MOTOR GS850G 1982 (Z) GENERAL EXPORT (E01)

STARTING MOTOR GS850G 1982 (Z) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3110049040
ref: 1

MOTOR ASSEMBLY,STARTING

€ 873.50

2

3131149040
ref: 2

ARMATURE

€ 118.50

3

3113049040
ref: 3

BRUSH TERMINAL SET (+)

€ 54.00

4

3114349040
ref: 4

O RING

€ 3.00

5

3113249040
ref: 5

HOLDER,BRUSH

€ 35.50

6

3113549040
ref: 6

SPRING,BRUSH

€ 5.00

7

3110049810
ref: 7

HOUSING SET,STARTING MOTOR

€ 80.50

8

3136049240
ref: 8

SHIM SET

€ 10.50

9

3136049040
ref: 9

SHIM SET

€ 10.50

10

3126449040
ref: 10

SEAL,RING

€ 7.50

11

3128149040
ref: 11

BOLT,STARTING MOTOR HOUSING

€ 7.00

12

0912806024
ref: 12

SCREW (6X25)

€ 2.50

13

0928024001
ref: 13

O RING(D:2,ID:24.5)

€ 2.00

14

0831022068
ref: 14

NUT 6MM

€ 2.50

15

0832121068
ref: 15

LOCK WASHER

€ 2.50
