AIR CLEANER

GS850G 1983 (D) USA (E03)

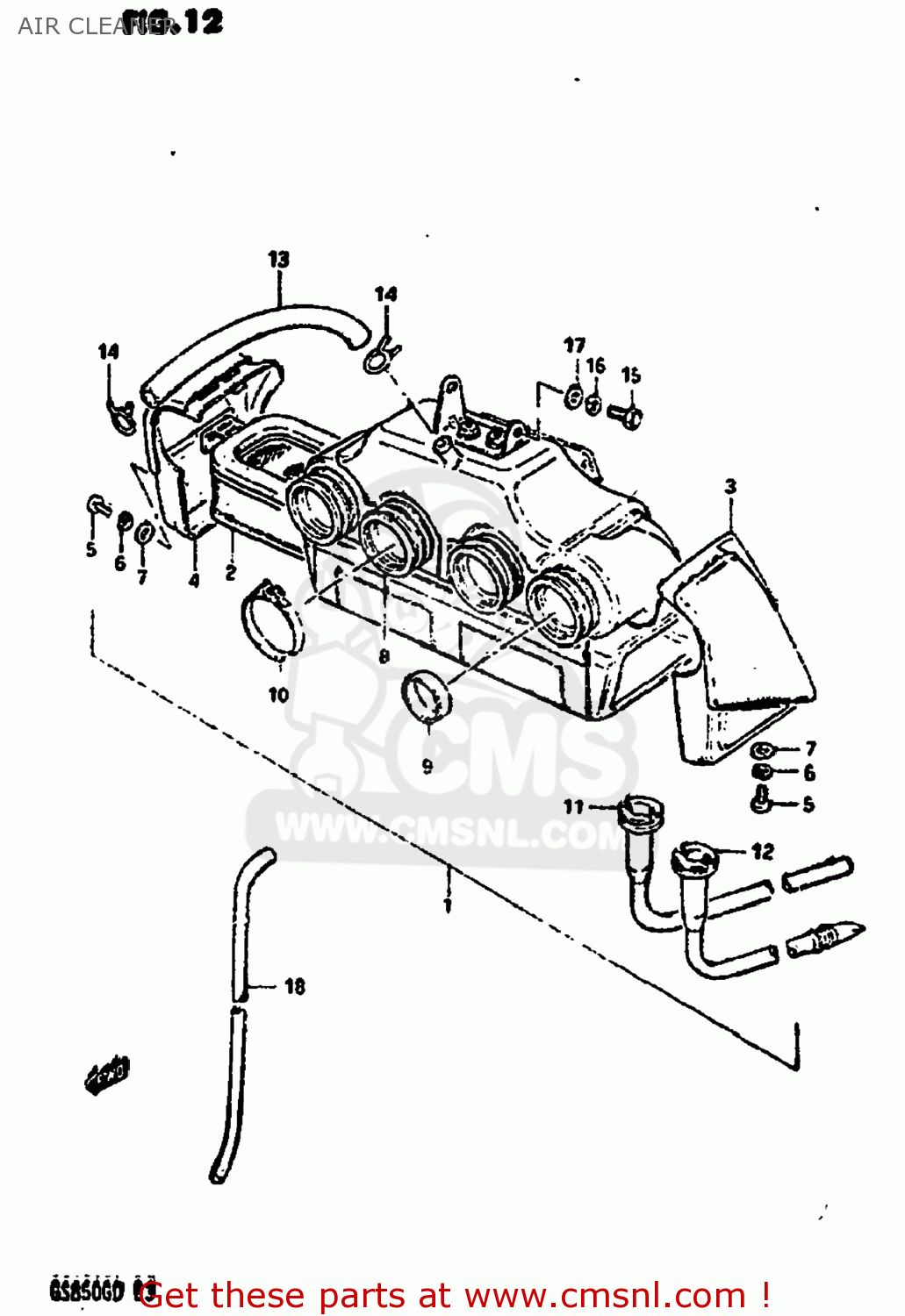

Air cleaner diagram GS850G 1983 (D) USA (E03)

AIR CLEANER GS850G 1983 (D) USA (E03)

AIR CLEANER GS850G 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1370045110
ref: 1
13700-45112

CLEANER ASSEMBLY,AIR

€ 252.00

2

1378049070
ref: 2

FILTER ASSY

€ 90.00

3

1374045100
ref: 3

CAP,AIR CLEANER

€ 44.50

4

1375045100
ref: 4

CAP,AIR CLEANER

€ 43.50

5

0211205128
ref: 5
02112-05127

SCREW

€ 2.50

6

0832121058
ref: 6
08321-0105A

LOCK WASHER

€ 2.00

7

0832221058
ref: 7
08322-01057

WASHER

€ 2.50

8

1388149070
ref: 8

TUBE,OUTLET

€ 15.50

9

1388545450
ref: 9

RING

€ 8.00

10

0940260306
ref: 10
09402-60208

CLAMP

€ 4.50

11

1387000130
ref: 11
13870-11458

DRAIN TUBE

€ 13.50

12

1387045120
ref: 12
13870-11458

DRAIN TUBE

€ 13.50

13

1385100250
ref: 13
09352-11153-600

TUBE,BREATHER

€ 13.50

14

0940114301
ref: 14

CLIP

€ 2.00

15

0110706128
ref: 15
01500-06127

BOLT

€ 2.00

16

0832121068
ref: 16
08321-01067

LOCK WASHER

€ 2.50

17

0832211068
ref: 17
08322-0106B

WASHER 6MM

€ 2.00

18

0934304045
ref: 18
09355-45855-600

HOSE

€ 14.00
